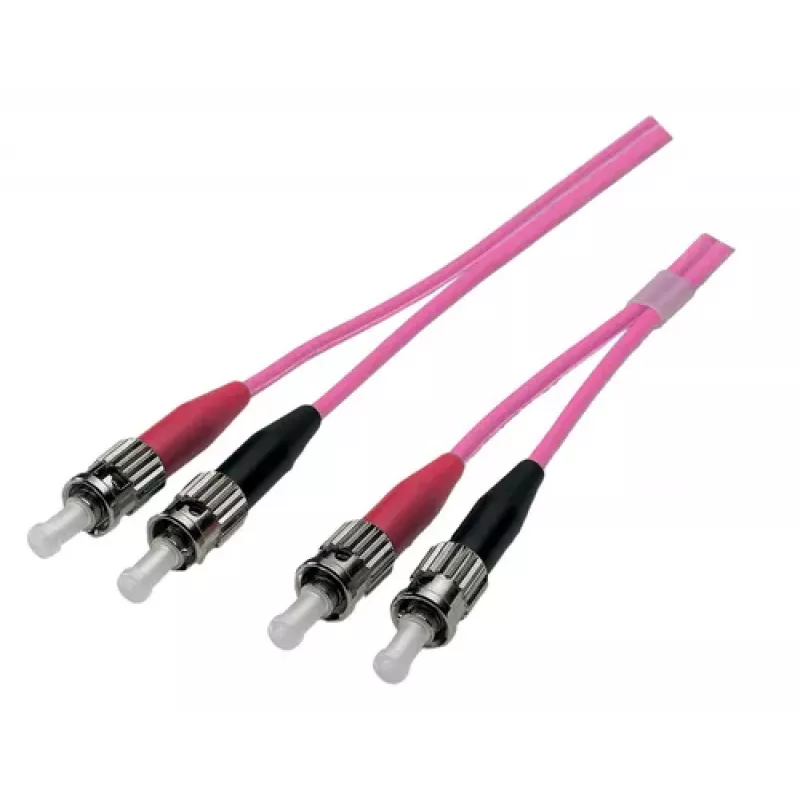

EFB Elektronik Duplex prepojovací kábel ST-ST 50/125 µm OM4 LSZH Erika Violet 3,0 mm 0,5 m

The EFB Elektronik Duplex Jumper ST-ST is a high-performance fiber optic patch cable designed for demanding data center, LAN, and SAN environments. With OM4 multimode fiber, it supports high-bandwidth applications over short to medium distances. The cable features a durable LSZH (Low Smoke Zero Halogen) jacket in distinctive erika violet, ensuring safety and easy identification.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring reliable signal transmission. The duplex ST connectors provide secure connections for network equipment. The 3.0 mm cable diameter offers flexibility while maintaining durability. LSZH jacket reduces toxic smoke in case of fire, making it suitable for confined spaces.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• High-speed fiber optic connections

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode OM4
• Connectors: ST to ST, Duplex
• Core/Cladding: 50/125 µm
• Length: 0.5 m
• Jacket: LSZH, Erika Violet, 3.0 mm diameter
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation: 2.3 dB/km @ 850 nm, 0.6 dB/km @ 1300 nm
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM4 compatible transceivers and ensure proper cable management to avoid bending beyond the minimum bend radius.
