EFB-Elektronik U-DQ(ZN)BH OM1 12G (1x12) Dca 1750N LSZH čierny optický kábel 12 m

The EFB-Elektronik U-DQ(ZN)BH OM1 12G (1x12) Dca 1750N LSZH Black Fiber Optic Cable is a high-quality, universal indoor/outdoor cable designed for reliable data transmission. With 12 multimode OM1 fibers (62.5/125 µm) in a loose tube construction, it offers robust performance for network installations. The cable features a black LSZH (Low Smoke Zero Halogen) outer sheath, ensuring safety in enclosed spaces, and a tensile strength of 1750 N for durability. It meets CPR fire class Dca and is halogen-free and flame retardant.

Advantages

This fiber optic cable provides excellent signal integrity over 12 meters, making it ideal for backbone connections, data centers, and enterprise networks. The LSZH sheath minimizes toxic smoke in case of fire, while the non-metallic strain relief (glass yarns) prevents damage from tension. Its universal design allows both indoor and outdoor use, offering flexibility for various installation environments.

Suitable for

• Network infrastructure in offices, data centers, and industrial settings
• Indoor and outdoor fiber optic runs requiring OM1 multimode performance
• Installations where low smoke and zero halogen properties are mandatory
• Applications needing high tensile strength and flame retardancy

Key specifications

• Cable Type: Fiber Optic Cable
• Cable Designation: U-DQ(ZN)BH
• Fiber Type: Multimode OM1
• Fiber Core/Cladding Diameter: 62.5/125 µm
• Number of Fibers: 12

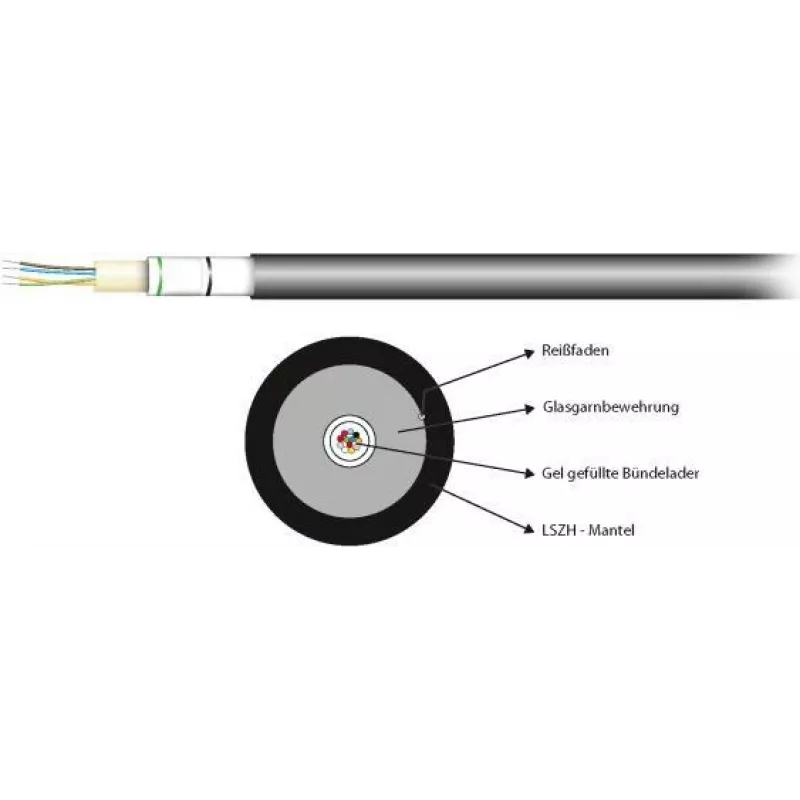

• Cable Construction: Loose Tube
• Number of Loose Tubes: 1
• Fibers per Tube: 12
• Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
• Outer Sheath Color: Black
• CPR Fire Class: Dca
• Tensile Strength: 1750 N
• Strain Relief Type: Non-metallic (Glass Yarns)
• Application Environment: Universal (Indoor/Outdoor)
• Halogen Free: Yes
• Flame Retardant: Yes
• Length: 12 m

Recommendations

For optimal performance, pair this cable with appropriate connectors (LC, SC, FC, or ST) and ensure proper installation to maintain bend radius and avoid excessive tension. Suitable for use with OM1-compatible transceivers and network equipment.
