MPO-PLUS (M) na LC fanout kábel OM3 12 vlákien typ B LSZH aqua 1 m MPOM12LCOM3-1

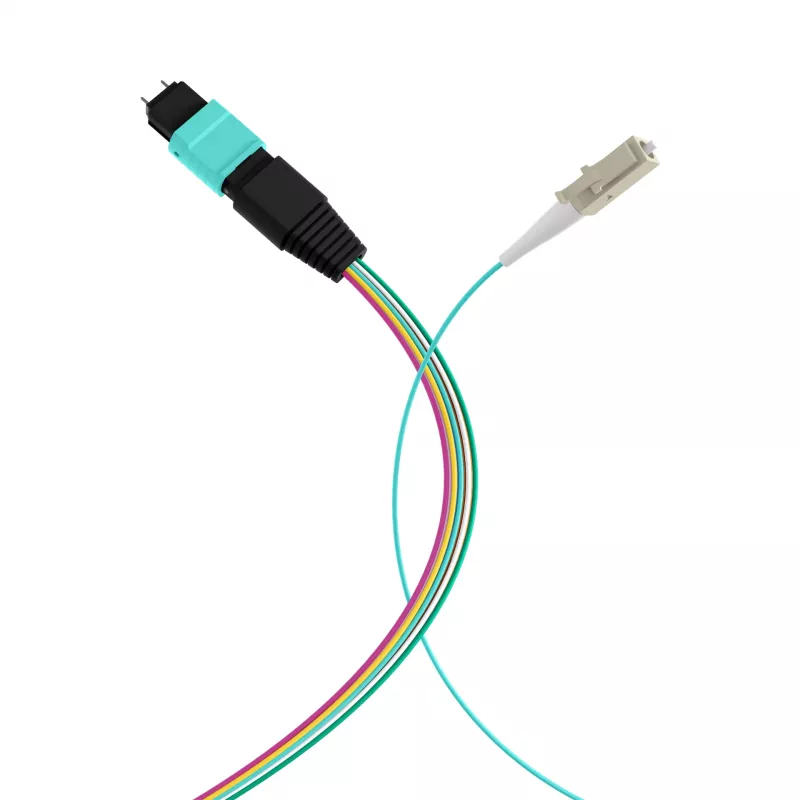

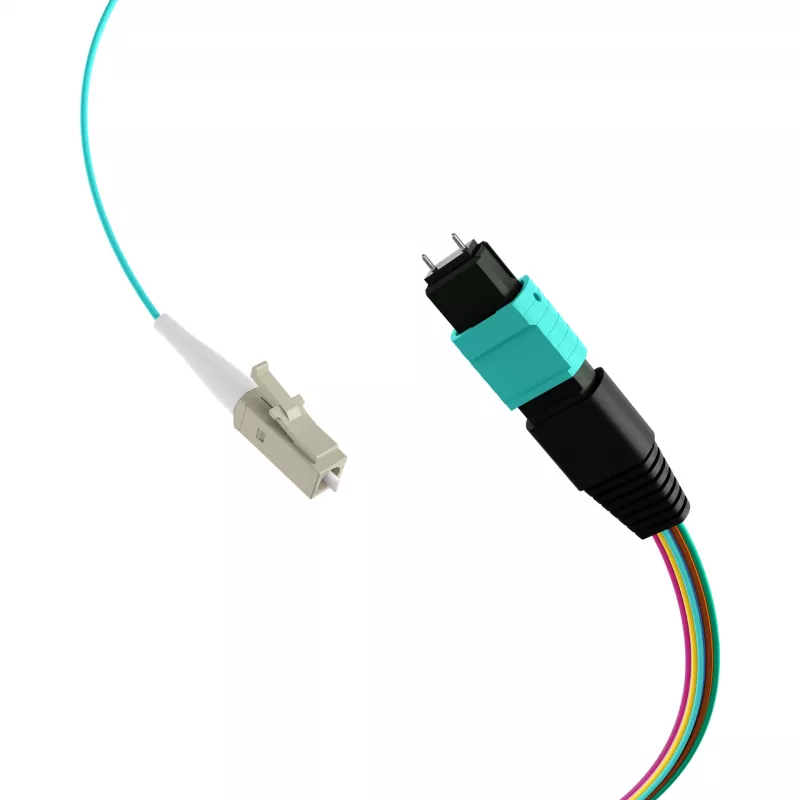

This MPO fanout cable offers a direct transition from a 12-fiber MPO-PLUS male connector to twelve individual LC simplex connectors, eliminating the need for separate breakout modules in high-density fiber patching. The OM3 multimode fiber supports 10GbE, 40GbE, and 100GbE data rates, making it suitable for data center interconnects, SAN, and LAN backbones. The LSZH jacket in aqua provides low smoke and zero halogen emission, a critical safety feature in enclosed equipment areas.

Highlights

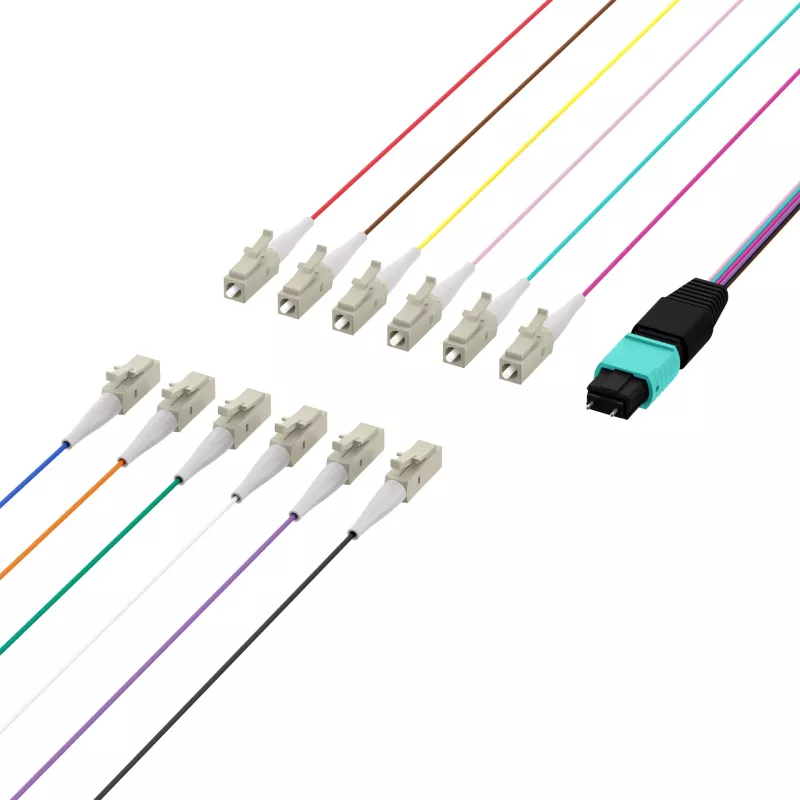

• MPO-PLUS male to 12x LC simplex fanout
• OM3 multimode fiber, 50/125 µm core/cladding
• Type B polarity for consistent link mapping
• LSZH aqua jacket for low smoke and halogen-free operation
• 1 meter length for short-reach patching

Full specifications

• Connector A: MPO-PLUS male (12-fiber)
• Connector B: 12x LC simplex
• Fiber type: Multimode OM3
• Fiber count: 12
• Polarity: Type B
• Jacket material: LSZH
• Jacket colour: Aqua
• Cable length: 1 m
• Core/cladding diameter: 50/125 µm
• Maximum bandwidth: 2000 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Supported data rates: 10GbE, 40GbE, 100GbE
• Insertion loss (typical): < 0.35 dB (MPO), < 0.25 dB (LC)
• Return loss (typical): > 20 dB
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Minimum bend radius: approx. 30 mm

Final note

This fanout cable is a practical choice for high-density fiber management where space is limited and performance cannot be compromised.
