ELEKTRA-PLUS R4 symetrický elektrický otvárač dverí s pamäťou, bez blokovania

The ELEKTRA-PLUS R4 is a symmetrical electric strike with memory, without blocking. It features an adjustable latch with a 3 mm range for clearance adjustment.

Key features

• Symmetrical design
• With memory
• Without blocking

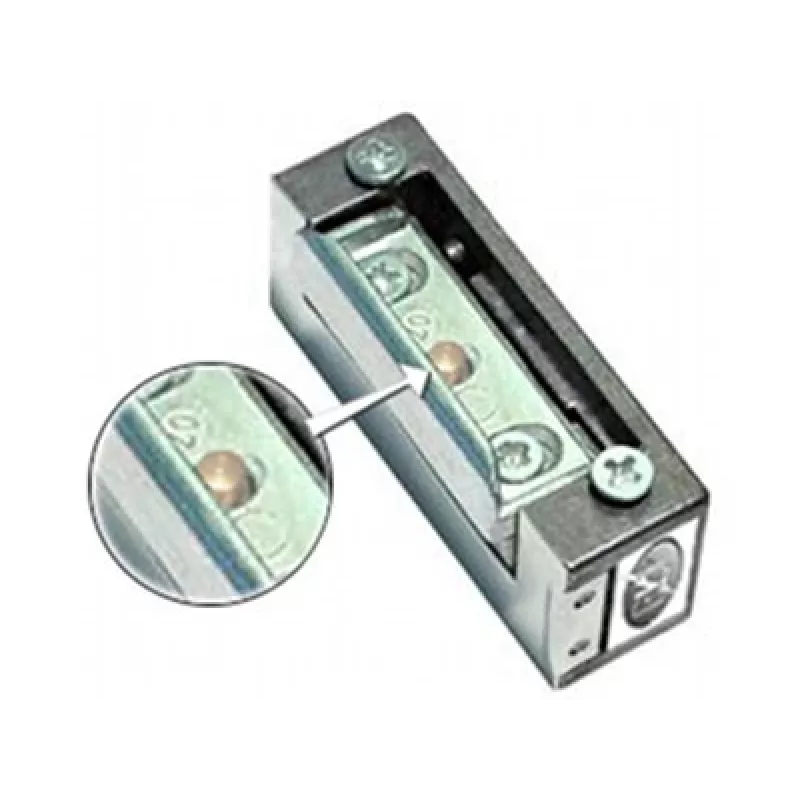

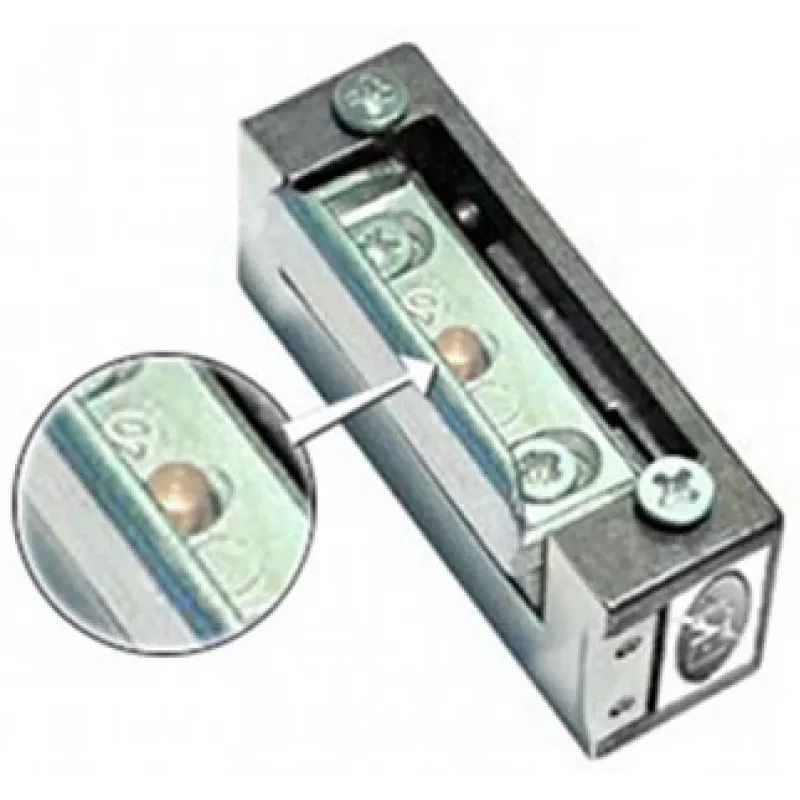

• Adjustable latch in the range of 3 mm: allows clearance adjustment

Specifications

• Brand: Elektra-Plus
• MPN: R4-12.30
• Model: R4-12.30

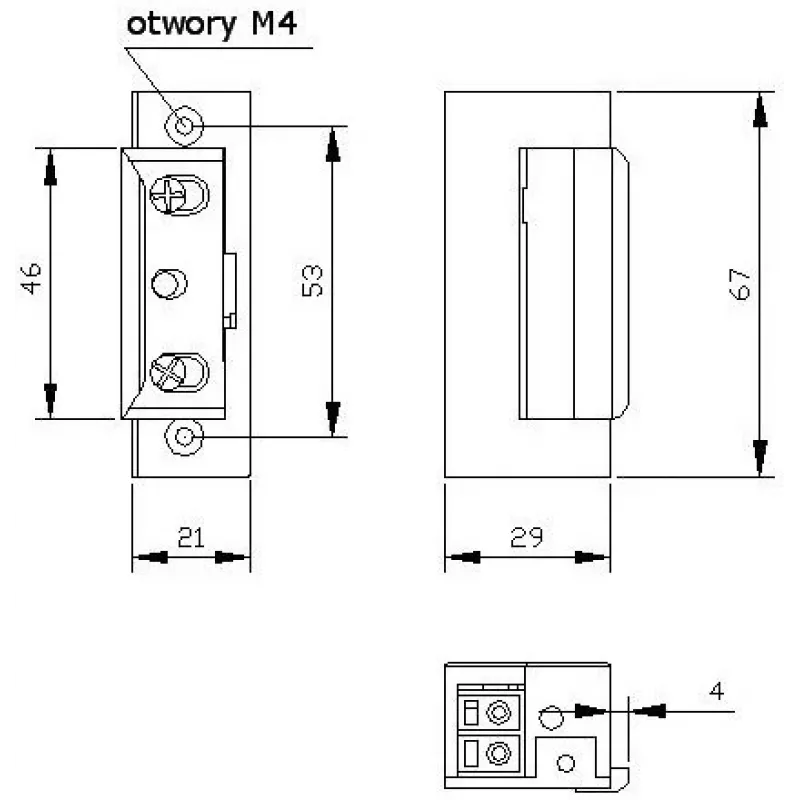

• External housing dimensions: 21 x 29 x 67 mm
• Weight: 0.16 kg
• Permissible pressure on the door during latch release: 30N (3 kG)
• Permissible load on the door acting on the strike: 3000 N (300 kG)
• Rated voltage U: 10 ± 2V *; 24 ± 2V **
• Current I: AC 280-530mA; DC 330-660mA
• Permissible continuous operation time: 30 min.
