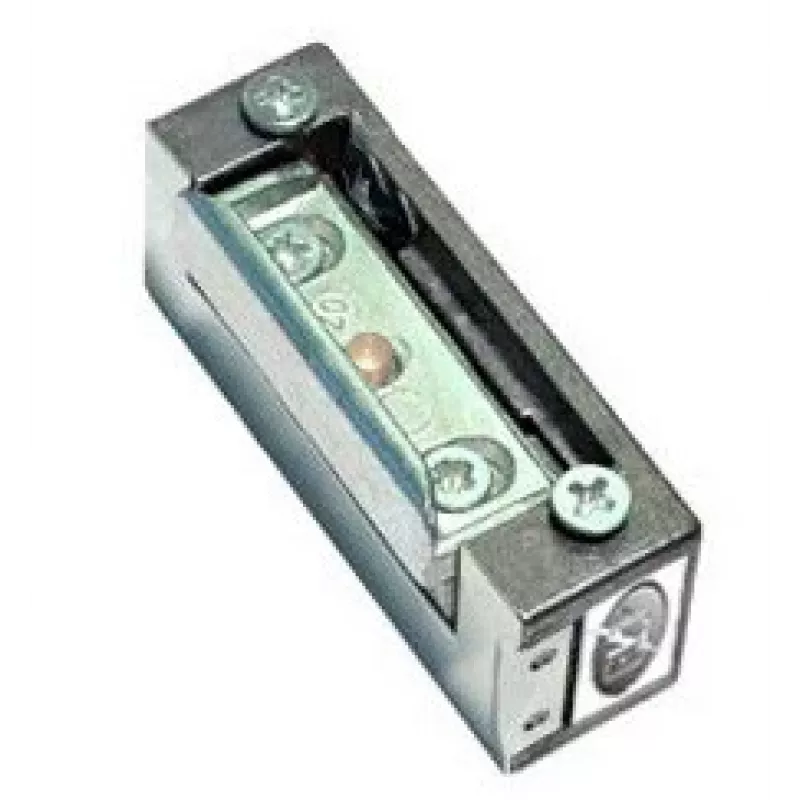

ELEKTRA-PLUS R4 symetrický elektrický otvárač dverí s pamäťou a blokovaním

The ELEKTRA-PLUS R4 is a symmetrical electric strike with memory and blocking functions. It features an adjustable latch with a 3 mm adjustment range to compensate for door play.

Key features

• Symmetrical design
• Memory and blocking functions

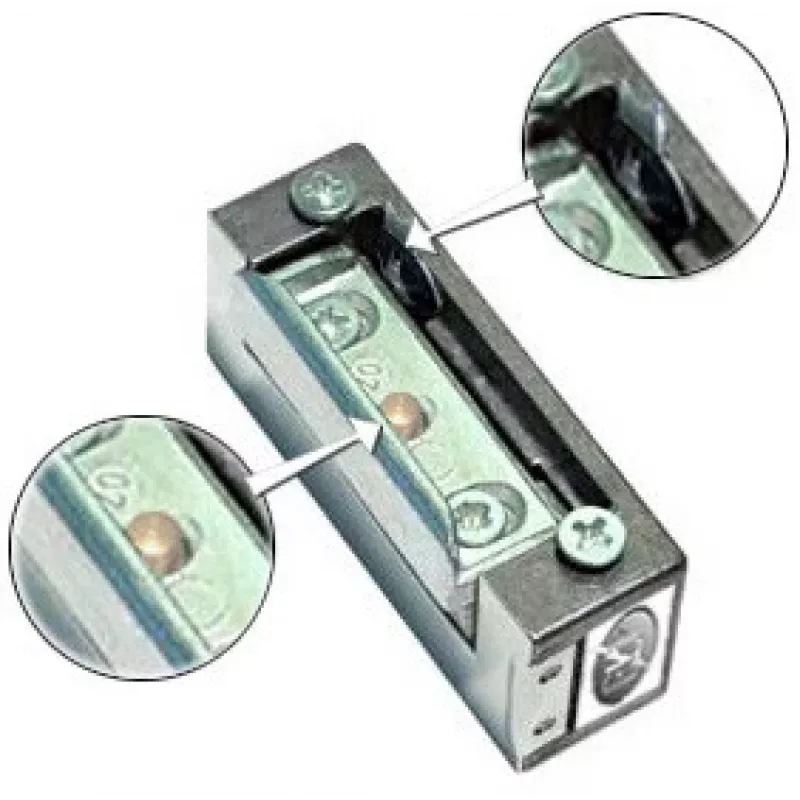

• Adjustable latch with 3 mm adjustment range

Specifications

• Brand: Elektra-Plus
• MPN: R4-12.40
• Model: R4-12.40
• External housing dimensions: 21 x 29 x 67 mm
• Weight: 0.16 kg
• Permissible pressure on door during latch release: 30 N (3 kG)
• Permissible load on strike: 3000 N (300 kG)
• Rated voltage U: 10 ± 2 V * 24 ± 2 V **
• Current I: AC 280-530 mA, DC 440-660 mA
• Permissible continuous operation time: 30 min
• Latch: adjustable within 3 mm range
