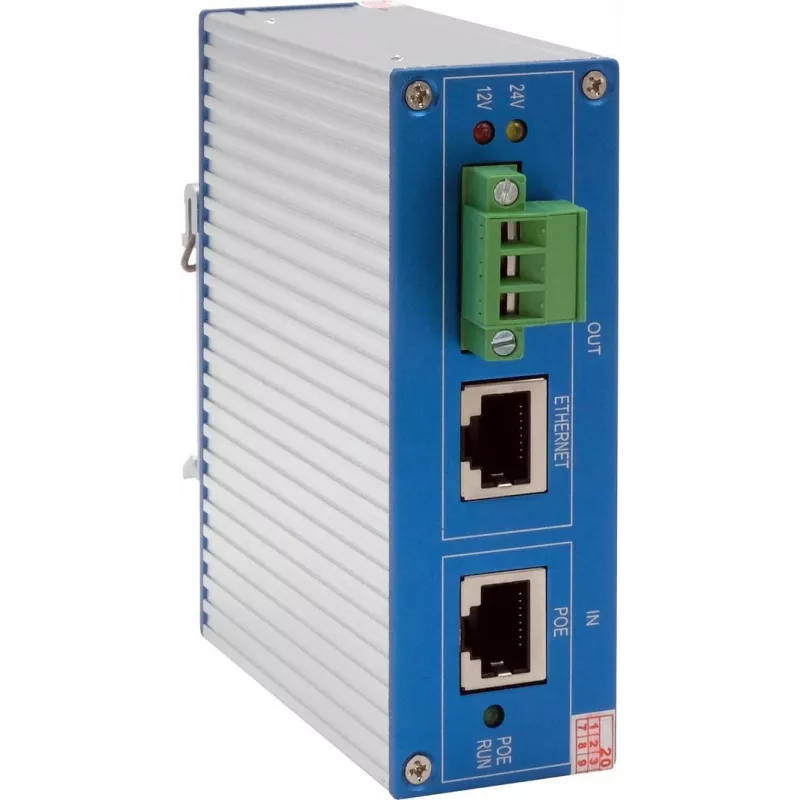

Ethernet PoE++ splitter Exsys EX-60321, 10/100/1000 Mbps, výstup 24 V DC 2 A

The Exsys EX-60321 Ethernet PoE++ Splitter provides power and data separation for devices that require a 24 V DC supply but are located where Power over Ethernet (PoE++) is the easiest power source. It accepts a PoE++ input over a 10/100/1000 Mbps Ethernet link, extracts and regulates power, and supplies a stable 24 V DC output at up to 2 A while forwarding gigabit data to the connected device. The splitter is designed to integrate with existing PoE infrastructure and to enable installation of non‑PoE equipment without additional mains wiring.

Advantages

The splitter supports gigabit Ethernet throughput while delivering up to 48 W of regulated DC power at 24 V/2 A to the powered device. It separates power and data reliably, minimizing interference with network communication. Its compact inline design allows placement near the powered device, reducing cable clutter and installation complexity. The device is compatible with PoE++ sources, providing a convenient solution for powering 24 V devices from a single Ethernet cable.

Suitable for

• Outdoor and indoor IP cameras that require 24 V DC and up to 2 A
• Wireless access points and network devices without native PoE support
• Industrial sensors or controllers needing a stable 24 V supply where PoE infrastructure exists
• Retrofit installations where adding separate power cabling is impractical

Key specifications

• Ethernet speed: 10/100/1000 Mbps (gigabit)
• PoE input: compatible with PoE++ power sourcing equipment
• DC output voltage: 24 V
• Maximum output current: 2 A
• Maximum output power: up to 48 W
• Power and data separation: integrated splitter functionality
• Form factor: inline/compact adapter for close-to-device installation

How to use

Connect the PoE++ enabled Ethernet cable from a compatible PoE power source to the splitter's input port. Attach the splitter's data output to the device's Ethernet port to maintain network connectivity. Use the 24 V DC output connector to power the device that requires 24 V/2 A. Verify polarity and connector type match the powered device before applying power. Ensure the PoE source can deliver sufficient power budget for the splitter and the powered device.

Recommendations

Place the splitter close to the powered device to minimize DC cable length and voltage drop. Confirm that the PoE power sourcing equipment supports PoE++ levels and that cable quality meets gigabit Ethernet requirements. Avoid exposing the splitter to extreme temperatures or moisture unless it is installed within a protected enclosure.
