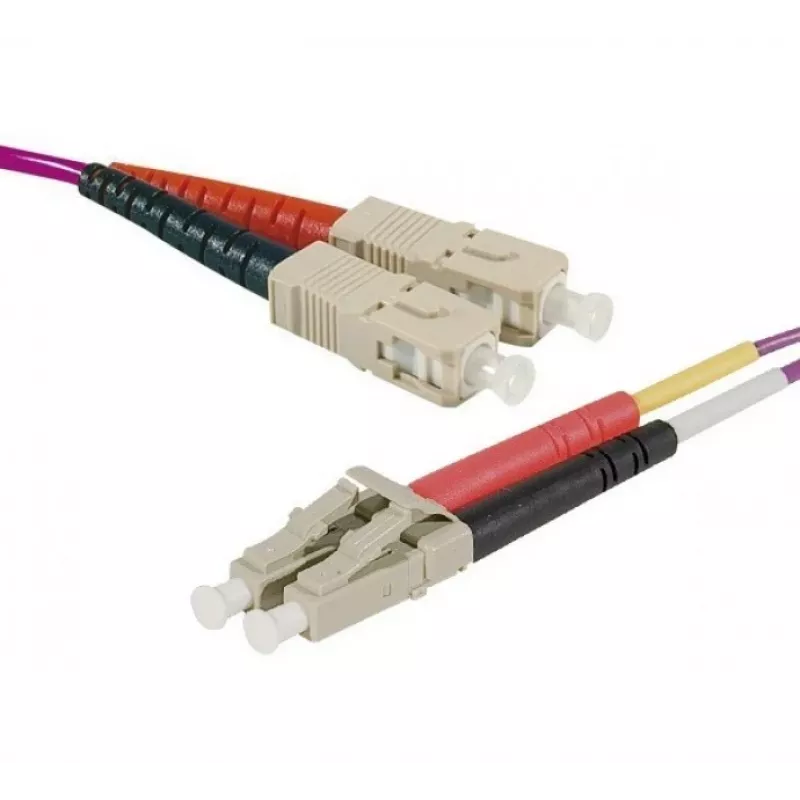

Exertis Connect 5m SC/UPC na LC/UPC Multimode OM2 Duplex LWL patch kábel, LSZH, oranžový 392684

This Exertis Connect fiber patch cable stands out with its SC/UPC to LC/UPC multimode duplex configuration, optimized for reliable data networking and telecommunications. The 5-meter length offers flexibility for rack-to-device connections, while the OM2 fiber supports 500 MHz-km bandwidth at both 850 nm and 1300 nm, making it suitable for Fast Ethernet and Gigabit Ethernet up to 550 meters.

Highlights

• Multimode OM2 fiber with 50/125 µm core/cladding diameter
• SC/UPC to LC/UPC connectors, male to male
• Duplex configuration with A-B polarity
• Halogen-free LSZH jacket in orange for easy identification
• 2 mm cable diameter for dense installations

In daily use

The halogen-free LSZH jacket emits low smoke and no toxic halogens in case of fire, making it ideal for enclosed spaces. The orange color aids in distinguishing multimode fiber from single-mode. The 2 mm duplex cable is flexible and easy to route in patch panels and cable managers.

Full specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Multimode
• Fiber class: OM2
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Connector 1: SC/UPC
• Connector 2: LC/UPC
• Connector gender: Male to male
• Cable configuration: Duplex
• Cable length: 5.0 m
• Cable jacket diameter: 2 mm
• Jacket material: LSZH (halogen-free)
• Jacket color: Orange
• Polarity: A-B
• Max bandwidth (850 nm): 500 MHz-km
• Max bandwidth (1300 nm): 500 MHz-km
• Application: Data networking, telecommunications

Final note

A dependable OM2 patch cable for multimode fiber links, combining performance and safety in a compact design.
