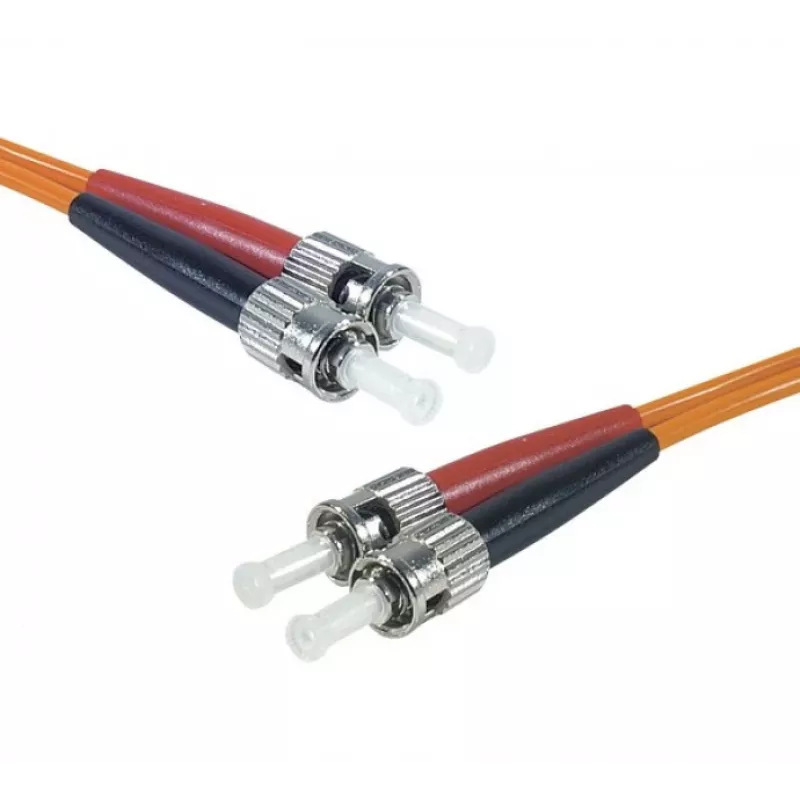

Exertis Connect ST/UPC Multimode Duplex OM2 sklolaminátový patch kábel, 5m, LSZH oranžový 392714

In high-density fibre installations, reliable connectivity between ST-terminated equipment is critical. This Exertis Connect patch cable provides a stable, low-loss link between two ST/UPC multimode ports, ensuring consistent signal integrity for your network.

Who is it for

Network technicians and data centre managers who need a dependable, halogen-free cable for short to medium distance multimode connections. It suits environments where safety and performance are paramount, such as enterprise LANs, SANs, and telecommunication rooms.

Main features

• ST/UPC to ST/UPC connectors for secure bayonet-style mating.
• OM2 multimode fibre with 50/125 µm core/cladding for high bandwidth.
• Duplex configuration supports bidirectional communication.
• Low smoke zero halogen (LSZH) jacket for enhanced fire safety.
• Orange jacket for easy identification of multimode fibre.
• 5 metre length ideal for patch panels and equipment connections.

Specifications

• Cable length: 5 m
• Fibre type: OM2 multimode
• Core/cladding diameter: 50/125 µm
• Connector type: ST/UPC male to ST/UPC male
• Cable diameter: 2 mm
• Jacket material: LSZH
• Jacket colour: Orange
• Insertion loss: < 0.3 dB per connector pair
• Return loss: > 20 dB
• Supported wavelengths: 850 nm, 1300 nm
• Maximum distance: 550 m @ 1 Gbps, 82 m @ 10 Gbps

Tips

Use this cable to connect fibre patch panels, switches, or media converters with ST ports. For best performance, keep bend radius above 3 cm and avoid sharp twists.
