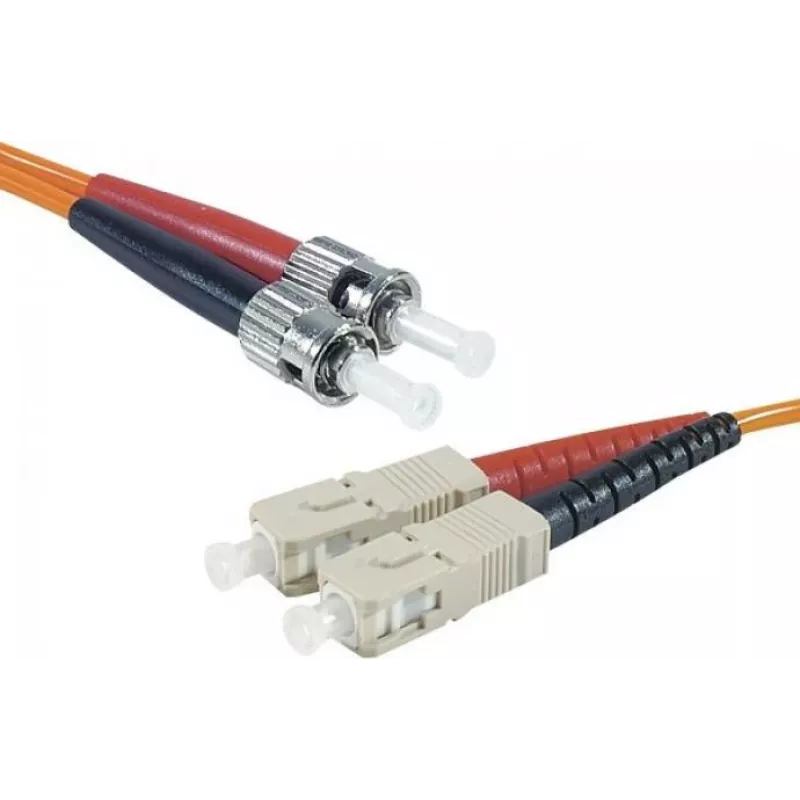

EXERTIS CONNECT ST/UPC na SC/UPC multimódový Duplex optický patch kábel, OM2 50/125µm, LSZH, oranžový, 2m 392702

Fiber optic patch cable with ST/UPC to SC/UPC connectors, engineered for reliable multimode connections in local area networks and data centers. The duplex OM2 50/125µm construction supports high-speed data transmission over short distances, while the LSZH orange jacket ensures low smoke and zero halogen emissions in case of fire.

Advantages

Low insertion loss of ≤0.3 dB and return loss of ≥50 dB maintain signal integrity. The 2.0m length offers flexibility for patching between panels and equipment. UPC polish on both connectors reduces back reflections, ensuring stable performance.

Suitable for

• Telecommunications rooms and data centers
• Enterprise network backbone connections
• Fiber-to-the-desk applications

Key specifications

• Connector A: ST/UPC
• Connector B: SC/UPC
• Fiber type: OM2 multimode 50/125µm
• Cable length: 2.0m
• Jacket material: LSZH
• Color: Orange
• Insertion loss: ≤0.3 dB
• Return loss: ≥50 dB
• Operating temperature: -20°C to 70°C

Recommendations

Ideal for installations requiring halogen-free cabling with reliable multimode performance.
