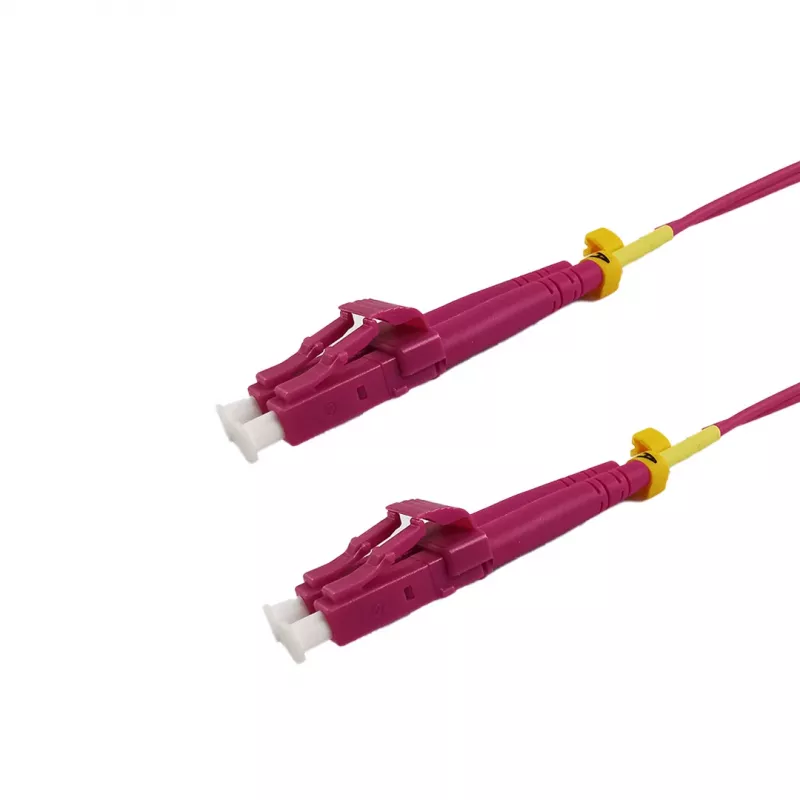

GRAFENTHAL optický kábel OM4 LC/UPC-LC/UPC LSZH 50,00m fialový

The GRAFENTHAL Optical Fibre Cable OM4 is a high-performance duplex multimode fibre patch cable designed for demanding data centre and enterprise network environments. Featuring LC/UPC connectors on both ends, a 50.00 metre length, and a violet LSZH (Low Smoke Zero Halogen) jacket, this cable ensures reliable, high-speed data transmission with minimal signal loss. Ideal for 10GbE, 40GbE, and 100GbE applications, it complies with TIA/EIA-568-C.3 and ISO/IEC 11801 standards.

Advantages

This OM4 fibre cable offers superior modal bandwidth of 4700 MHz·km at 850nm, supporting high-density data transmission over longer distances. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it safe for use in confined spaces. With low insertion loss (<0.3 dB per connector) and high return loss (>50 dB), it ensures excellent signal integrity.

Suitable for

• Data centres requiring 10GbE, 40GbE, or 100GbE connectivity
• Local Area Networks (LANs) and Storage Area Networks (SANs)
• High-speed backbone and server connections
• Telecommunications and enterprise networking

Key specifications

• Fibre Type: OM4 Multimode (50/125 µm)
• Connectors: LC/UPC to LC/UPC, Duplex
• Length: 50.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Colour: Violet
• Fibre Count: 2 (Duplex)
• Modal Bandwidth: 4700 MHz·km @850nm, 500 MHz·km @1300nm
• Insertion Loss: ≤0.3 dB per connector
• Return Loss: ≥50 dB (UPC)
• Operating Temperature: -20°C to +70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC interfaces. Pair with GRAFENTHAL OM4 patch panels and adapters for a complete solution.
