Samostatná sieťová skriňa Triton RMA-15-A68-CAX-N1 15U 800 kg sivá

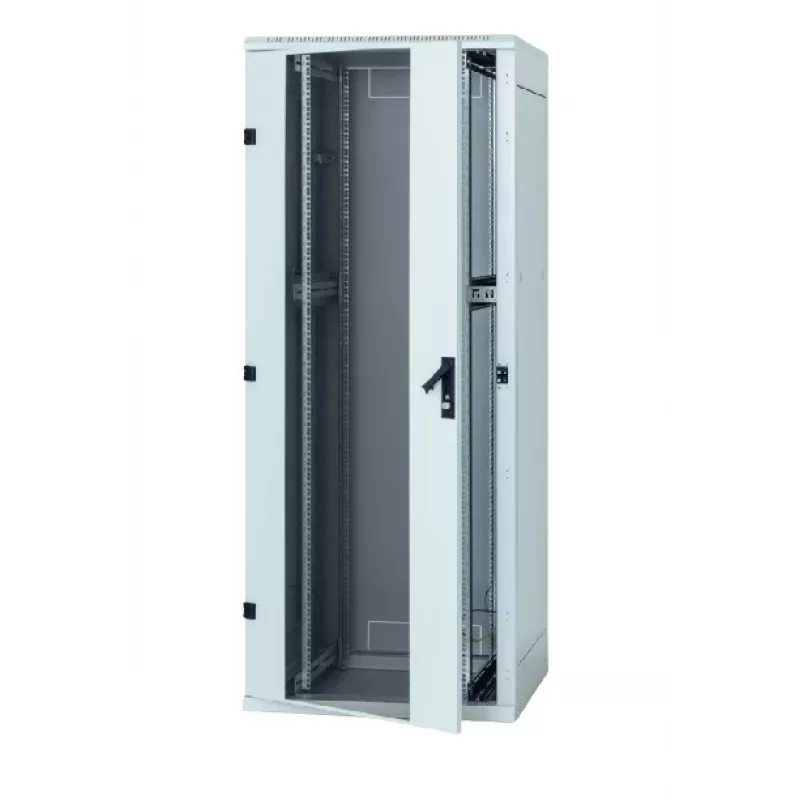

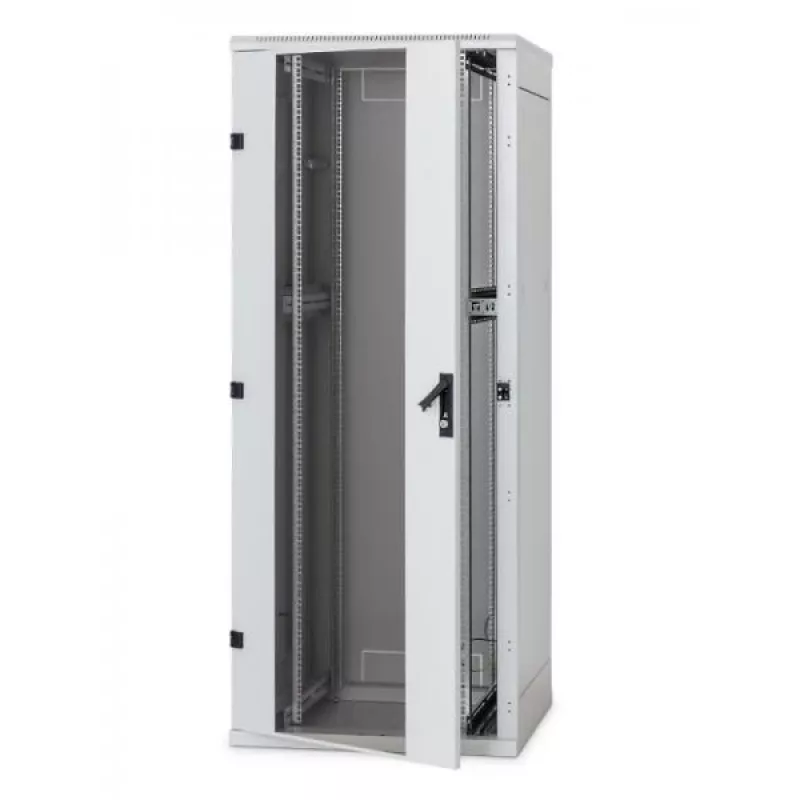

The Triton RMA-15-A68-CAX-N1 is a freestanding network cabinet designed for data and telecommunication equipment. It provides 15U of mounting space, a sturdy welded steel construction and a load capacity of up to 800 kg. With an IP20 protection rating and a compact form factor (600 mm width, 800 mm depth, 770 mm height), the 39.9 kg rack is suitable for common server, switching and cabling installations and supports a wide range of accessories and configuration options.

Advantages

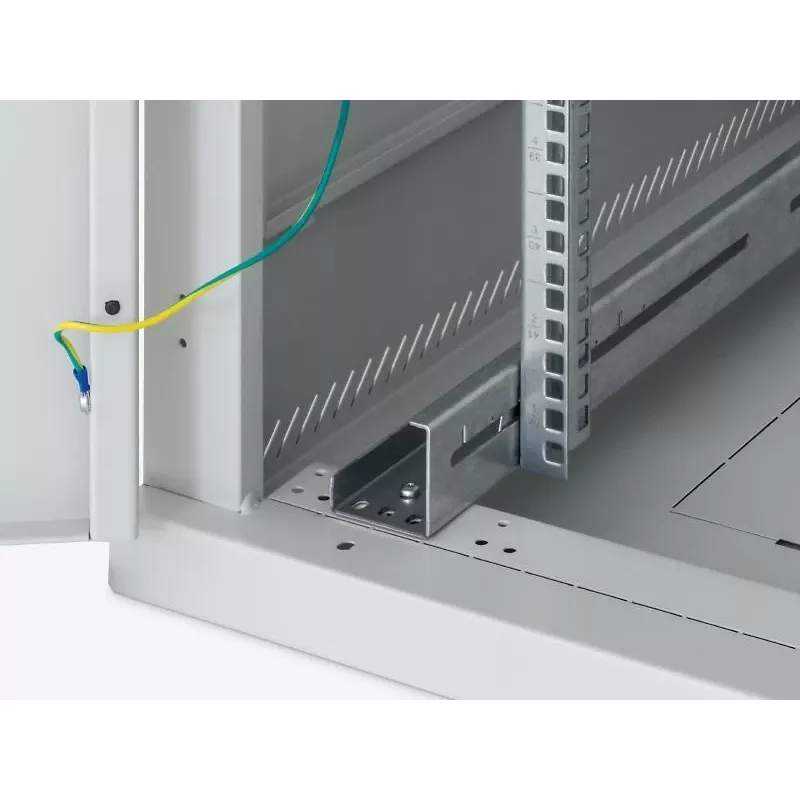

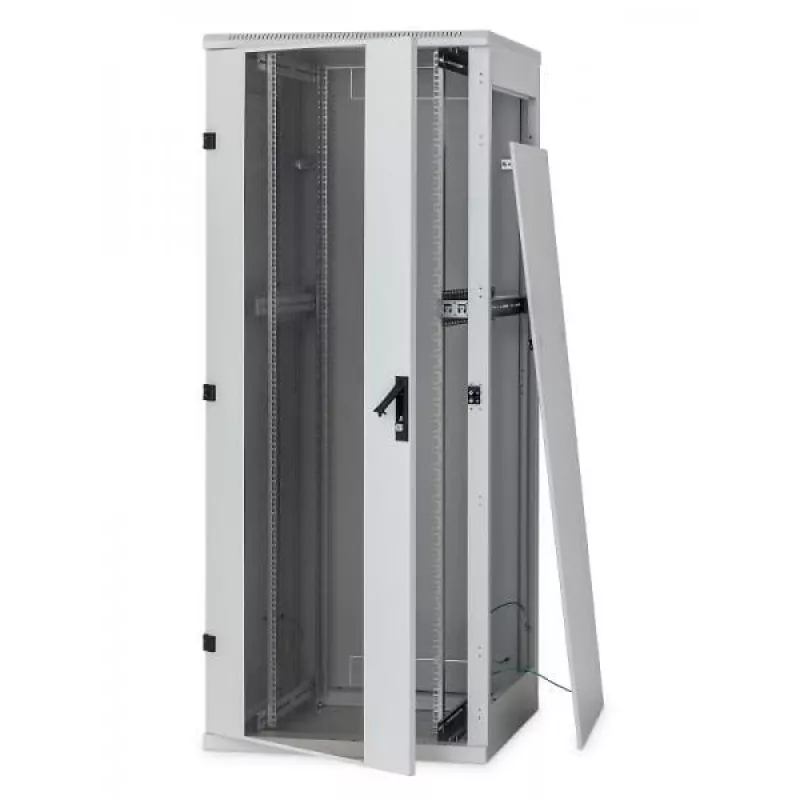

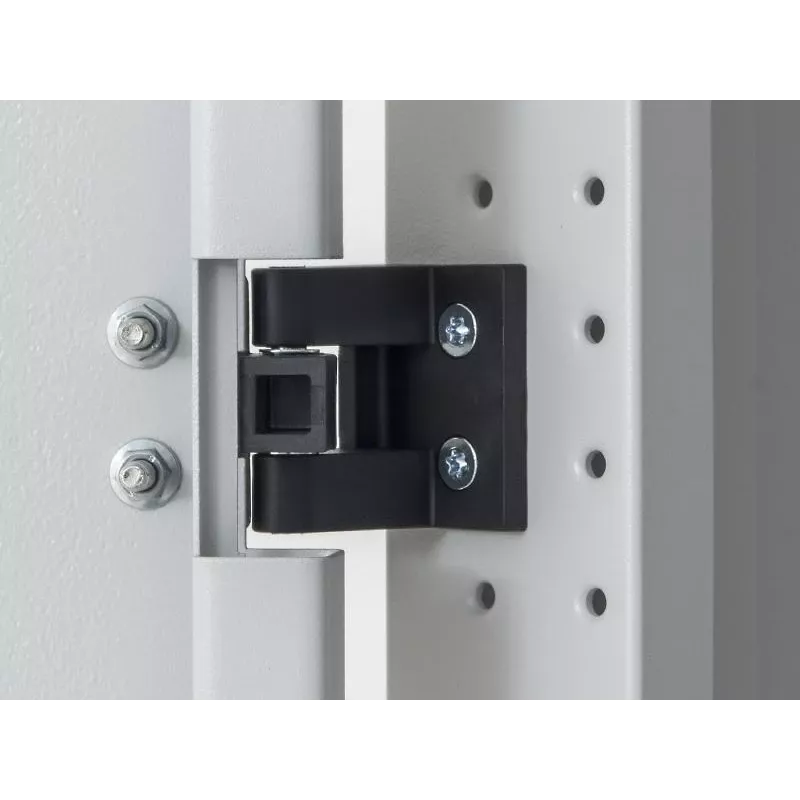

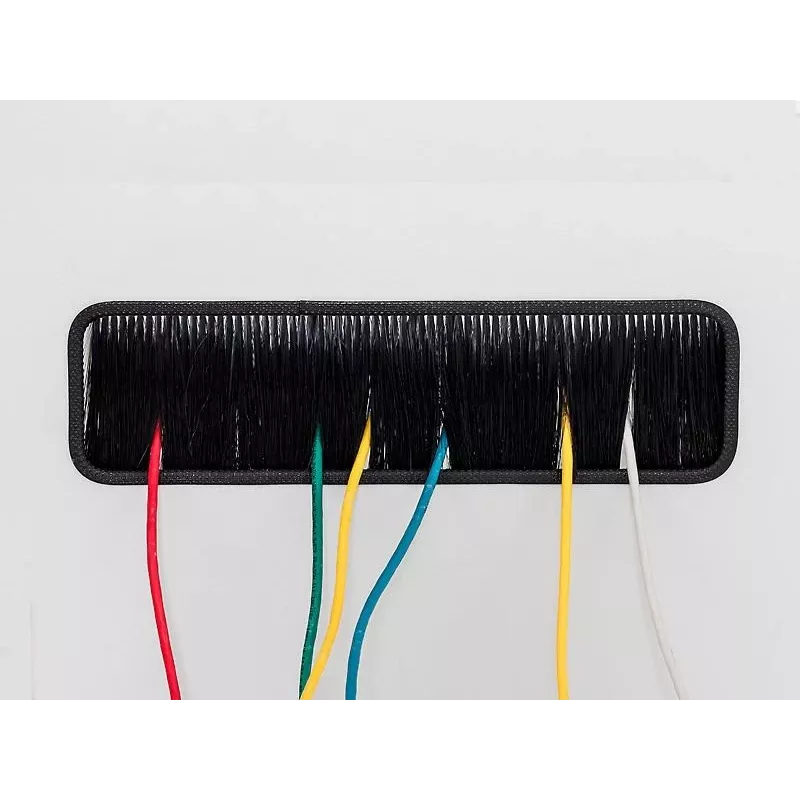

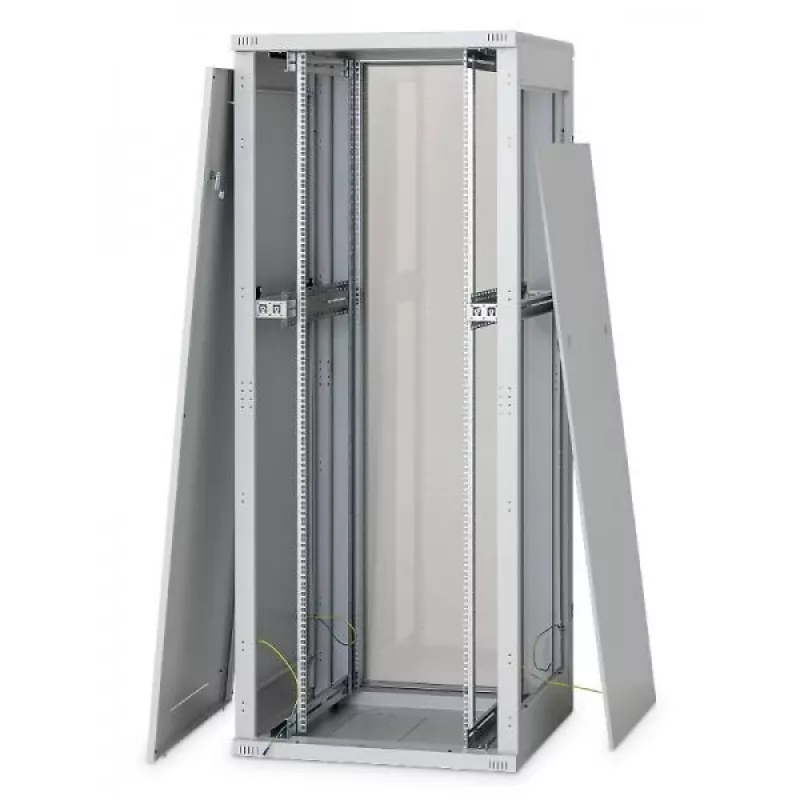

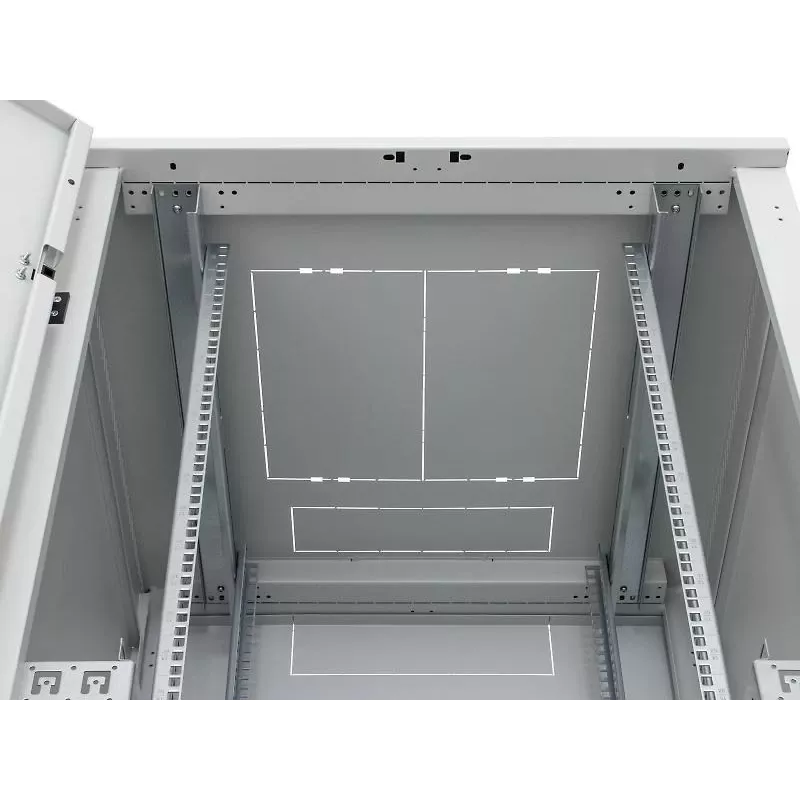

The cabinet features a robust welded frame with 1.3 mm thick skeleton rails for increased rigidity and perforation for improved airflow. Doors can open nearly 180° and are removable or reversible; double-wing doors use hook-on hinges. Vertical 19" rails are depth-adjustable and a middle pair of rails is supplied for depths over 800 mm. Breakout-type blanking panels provide cable entry points and include brush strips or protective fringe edges to limit dust ingress. The design supports optional fan-unit doors and easy external fan removal, multiple mounting options (castors, levelling feet or base) and internal bonding of detachable parts in line with standards.

Suitable for

• Small server rooms and network closets
• Switch and patch-panel installations
• Telecommunication equipment and rack-mounted devices
• Environments requiring configurable cable entry and basic airflow management (IP20)

Key specifications

• Model: Triton RMA-15-A68-CAX-N1
• Rack capacity: 15U
• Maximum load: 800 kg
• Dimensions (W×D×H): 600 × 800 × 770 mm
• Weight: 39.9 kg
• IP rating: IP20
• Colour: Grey

How to use

Position the cabinet on levelling feet or fit optional castors or a base depending on site requirements. Mount 19" equipment on the adjustable vertical rails and, if needed, use the central pair of rails for deeper enclosures. Route cables through the breakout blanking panels at the base, top or rear and seal openings with the supplied brush strips or fringe edges to reduce dust entry. If additional cooling is required, order the compatible fan-unit door and install Triton fan units according to the active cooling instructions; fan units can be mounted or removed from the outside through the large breakout opening.

Recommendations

For installations with equipment loads above 500 kg, install the horizontal cable management system in the skeleton to reinforce the cabinet. Ensure all detachable parts are bonded per applicable standards and verify door hinge orientation before final placement to allow the desired door opening direction.
