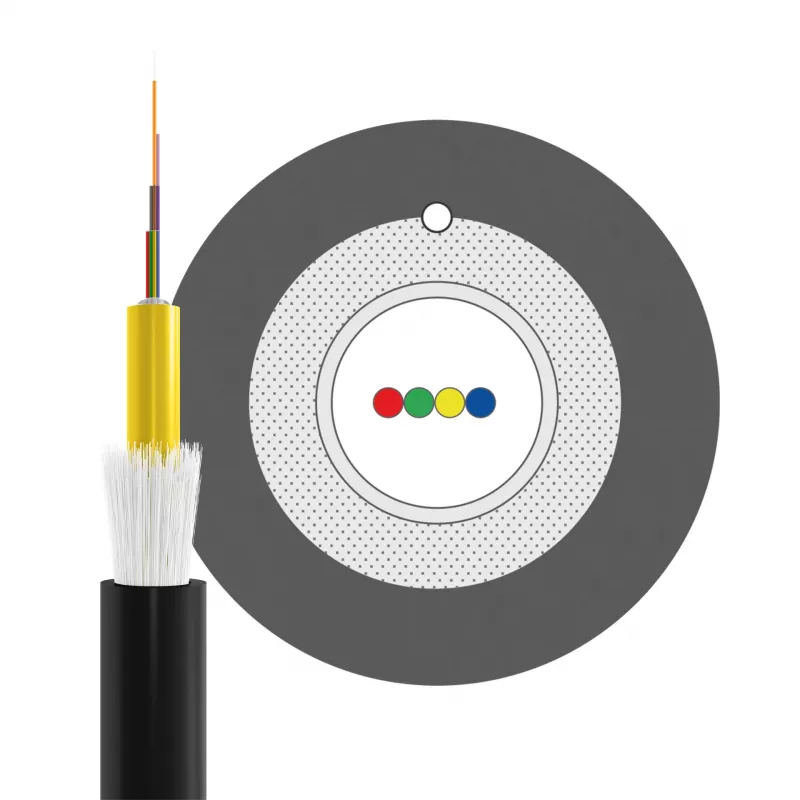

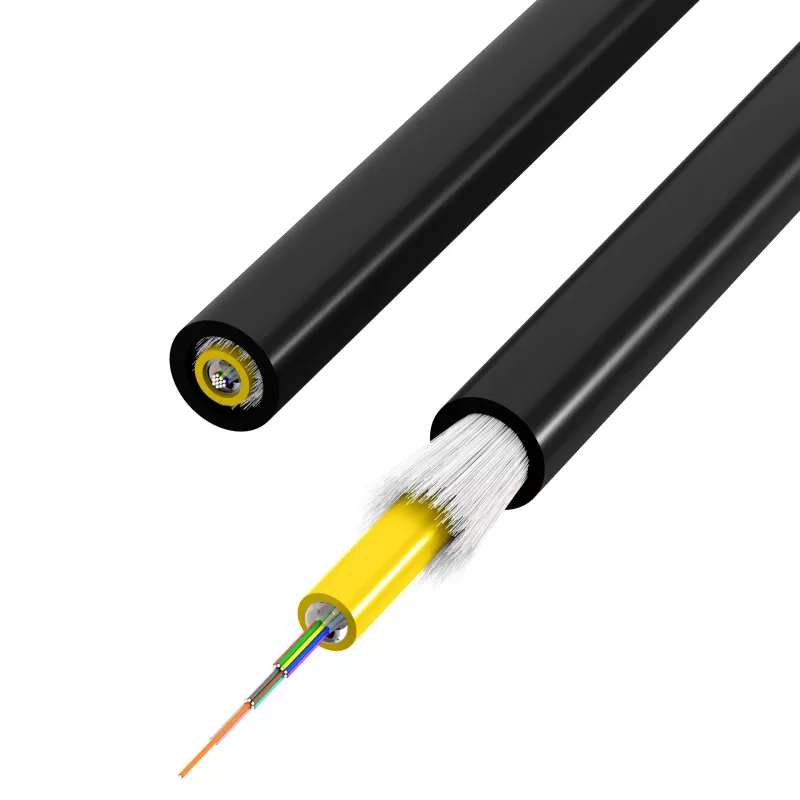

INFRALAN A-DQ(ZN)B2Y OM2 4G (1x4) Fca 2000N čierny 5,8mm vonkajší optický kábel A4M2F1

This INFRALAN outdoor fiber optic cable stands out with its non-metallic strain relief and 2000 N tensile strength, making it suitable for direct burial and aerial installations without the need for additional metallic armor. The A-DQ(ZN)B2Y construction combines a black PE outer sheath with UV resistance for long-term outdoor exposure.

Highlights

• OM2 multimode fiber with 50/125 µm core/cladding diameter
• 4 fibers in a single loose tube (1x4)
• Non-metallic strain relief (glass yarns) with 2000 N tensile strength
• Euroclass Fca fire performance rating
• Outer diameter 5.8 mm, black PE sheath

In daily use

The cable operates reliably in temperatures from -20°C to +70°C, making it suitable for harsh outdoor environments. With attenuation of ≤2.5 dB/km at 850 nm and ≤0.8 dB/km at 1300 nm, it supports high-speed data transmission over short to medium distances typical for OM2 fiber.

Full specifications

• Cable type: Fiber optic cable, multimode OM2
• Number of fibers: 4

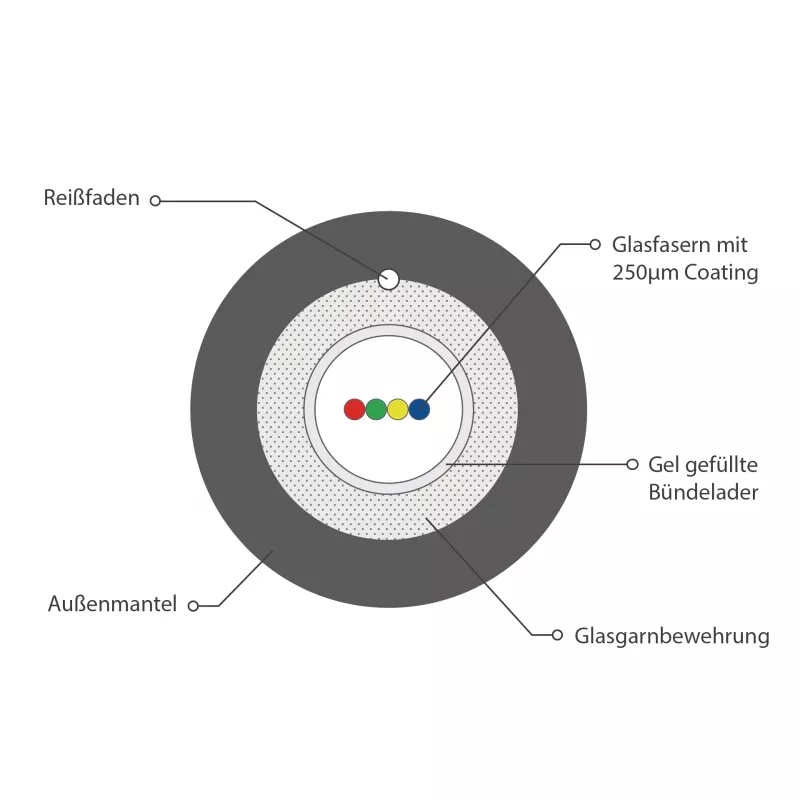

• Fiber construction: 1 loose tube with 4 fibers (1x4)
• Core/cladding diameter: 50/125 µm
• Cable designation: A-DQ(ZN)B2Y
• Application environment: Outdoor
• Outer sheath material: PE (Polyethylene)
• UV resistance: Yes
• Strain relief type: Non-metallic (glass yarns)
• Tensile strength: 2000 N
• Outer diameter: 5.8 mm
• Cable color: Black
• Fire performance rating (Euroclass): Fca
• Bandwidth (850 nm): 500 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Attenuation (850 nm): ≤ 2.5 dB/km
• Attenuation (1300 nm): ≤ 0.8 dB/km
• Operating temperature range: -20°C to +70°C

Final note

Ideal for outdoor fiber optic backbone installations where non-metallic, rodent-resistant and UV-stable cable is required.
