INFRALAN U-DQ(ZN)BH OM3 24G (1x24) Eca 3000N LSZH čierny, 7,5mm 54524D1E-CPR

With a tensile strength of 3000 N and a 7.5 mm diameter, this 24-fiber OM3 multimode cable is built for demanding indoor and outdoor installations.

Overview

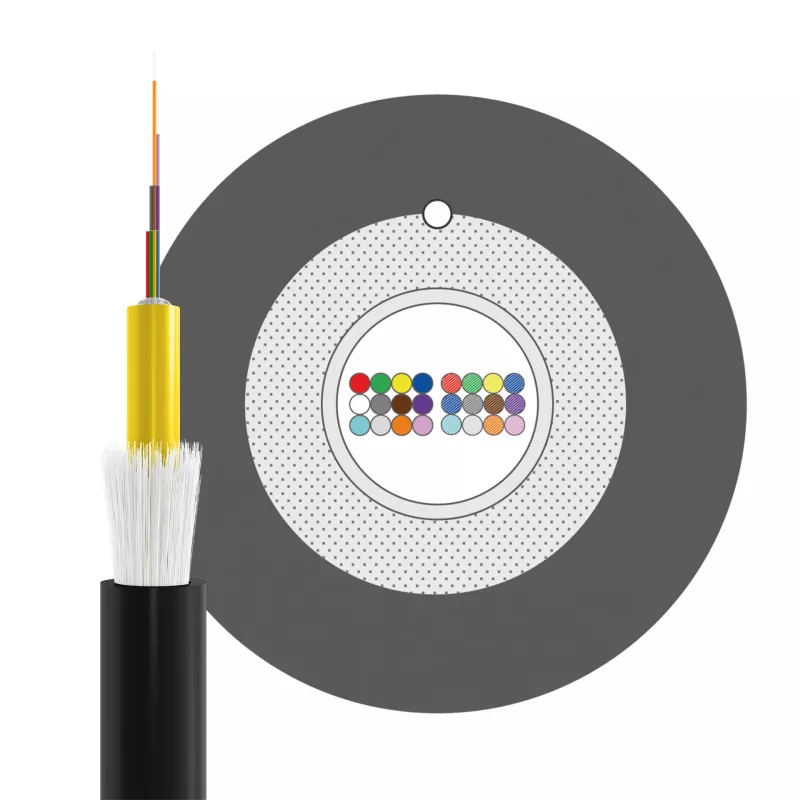

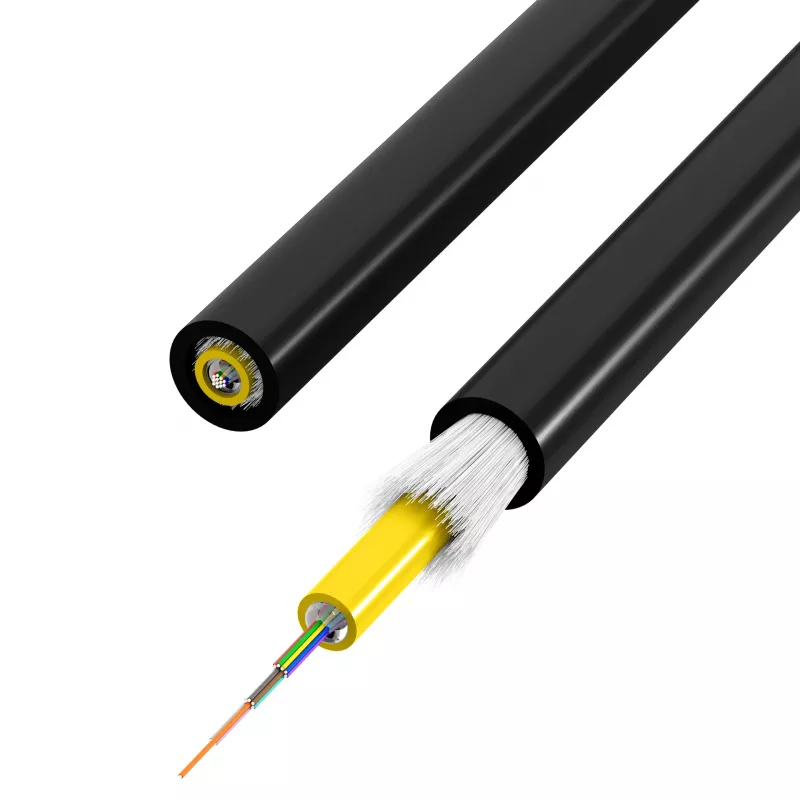

The INFRALAN U-DQ(ZN)BH OM3 24G is a loose tube fiber optic cable with 24 OM3 multimode fibers. It features a black LSZH (Low Smoke Zero Halogen) jacket, dry core construction with non-metallic strength members, and an Eca CPR fire classification. The cable supports data rates up to 100 Gbps at 850 nm over distances of 70 m.

What stands out

• 24 OM3 multimode fibers in a single loose tube
• High tensile strength of 3000 N
• LSZH jacket for low smoke and zero halogen emissions
• Eca CPR fire classification
• Dry core with non-metallic strength members
• Supports 10G, 40G, and 100G Ethernet

Technical details

• Fiber type: OM3 multimode
• Fiber count: 24

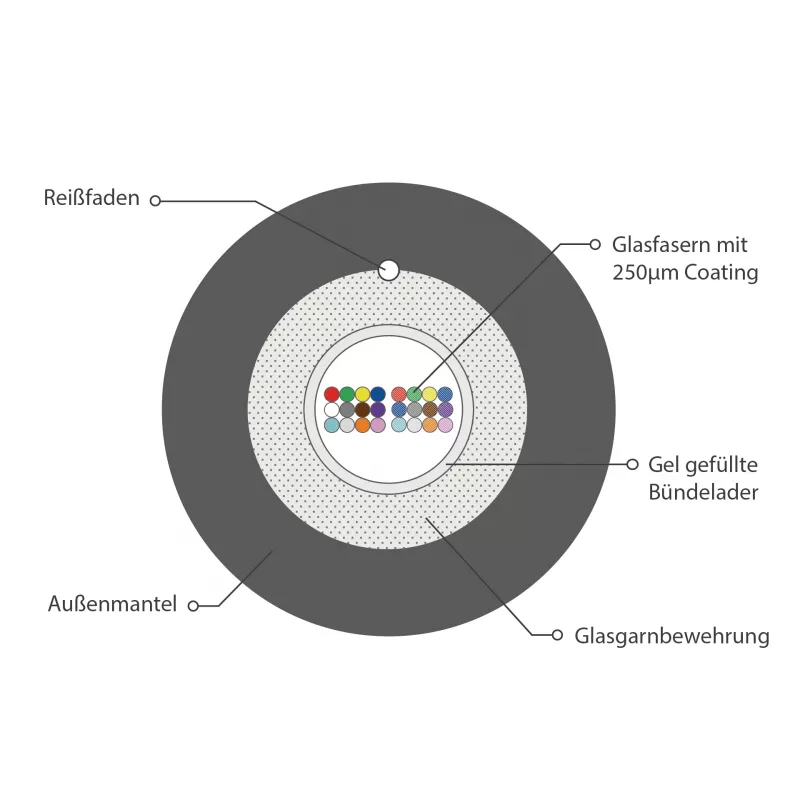

• Cable construction: Loose tube (U-DQ(ZN)BH)
• Jacket material: LSZH
• CPR fire classification: Eca
• Tensile strength: 3000 N
• Cable diameter: 7.5 mm
• Cable color: Black
• Core type: Dry core
• Strength members: Non-metallic
• Max data rate: 10 Gbps up to 300 m, 40 Gbps up to 100 m, 100 Gbps up to 70 m
• Wavelengths: 850 nm, 1300 nm
• Attenuation: ≤3.5 dB/km at 850 nm, ≤1.5 dB/km at 1300 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +70°C
• Minimum bend radius: 150 mm (installation), 75 mm (operation)
• Standards compliance: IEC 60794-1, EN 50575 (CPR)
• Application environment: Indoor/outdoor, universal

Our verdict

A robust 24-fiber OM3 cable with high tensile strength and LSZH jacket, ideal for backbone and horizontal cabling in demanding environments.
