INFRALAN A-DQ(ZN)B2Y OM3 24G (1x24) Fca 2000N čierny 5,8mm optický kábel A24M3F1

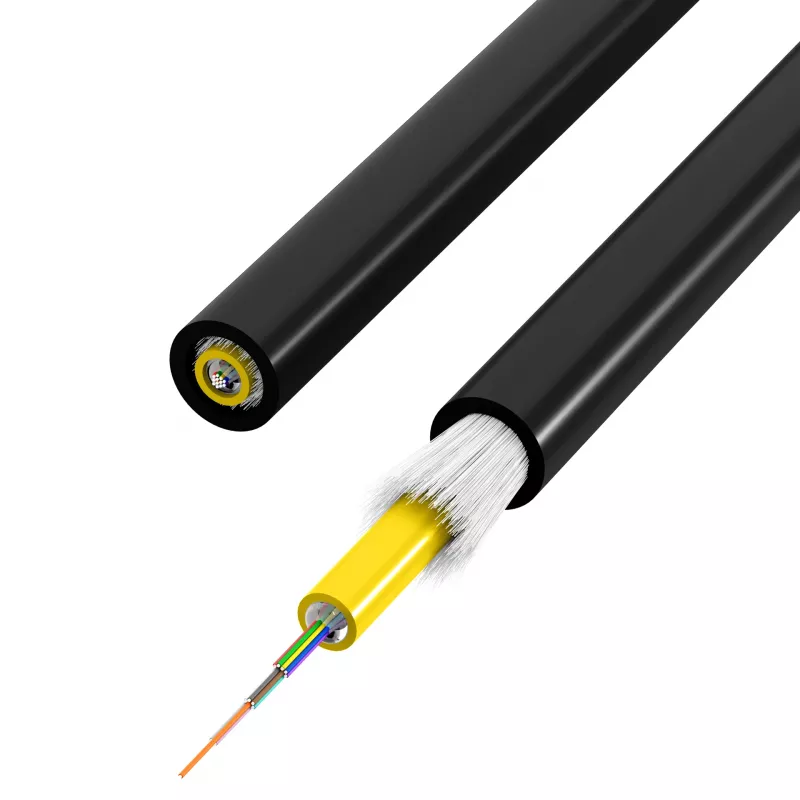

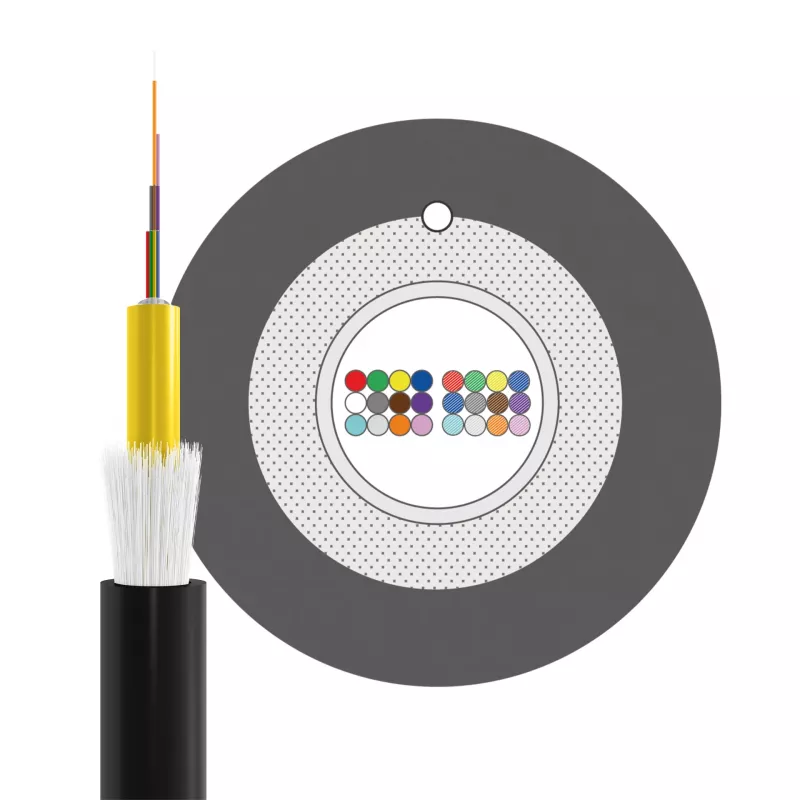

This INFRALAN fibre optic cable stands out with its 24 OM3 multimode fibres in a single loose tube, delivering high bandwidth for demanding indoor/outdoor installations. The non-metallic, rodent-resistant construction and 2000 N tensile strength ensure durability in challenging environments, while the Fca fire class and UV-resistant black jacket provide safety and longevity.

Highlights

• 24 OM3 multimode fibres (50/125 µm) for 10GbE up to 300 m
• Loose tube, non-metallic design with rodent protection
• High tensile strength of 2000 N for robust installations
• CPR fire class Fca, flame-retardant and UV-resistant jacket
• Compact 5.8 mm outer diameter for easy handling

In daily use

Ideal for backbone cabling, data centres, and campus networks, this cable supports high-speed data transmission with minimal signal loss. The black jacket blends into industrial settings, and the operating temperature range from -20°C to +70°C allows use in various climates. With a minimum bend radius of 116 mm during installation and 58 mm during operation, it offers flexibility without compromising fibre integrity.

Full specifications

• Fibre type: OM3 multimode
• Number of fibres: 24
• Fibre count per tube: 1x24

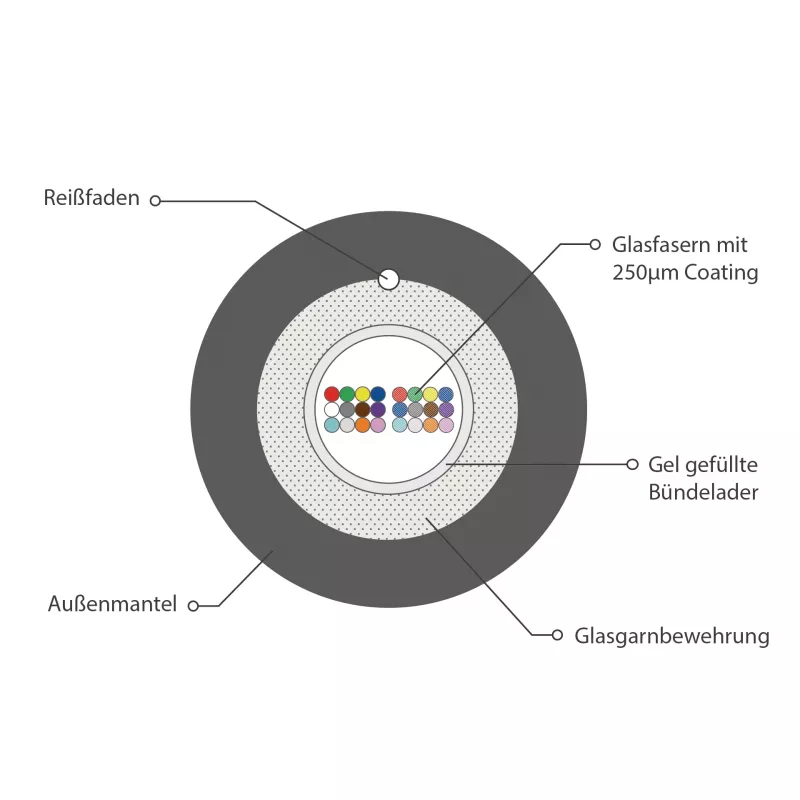

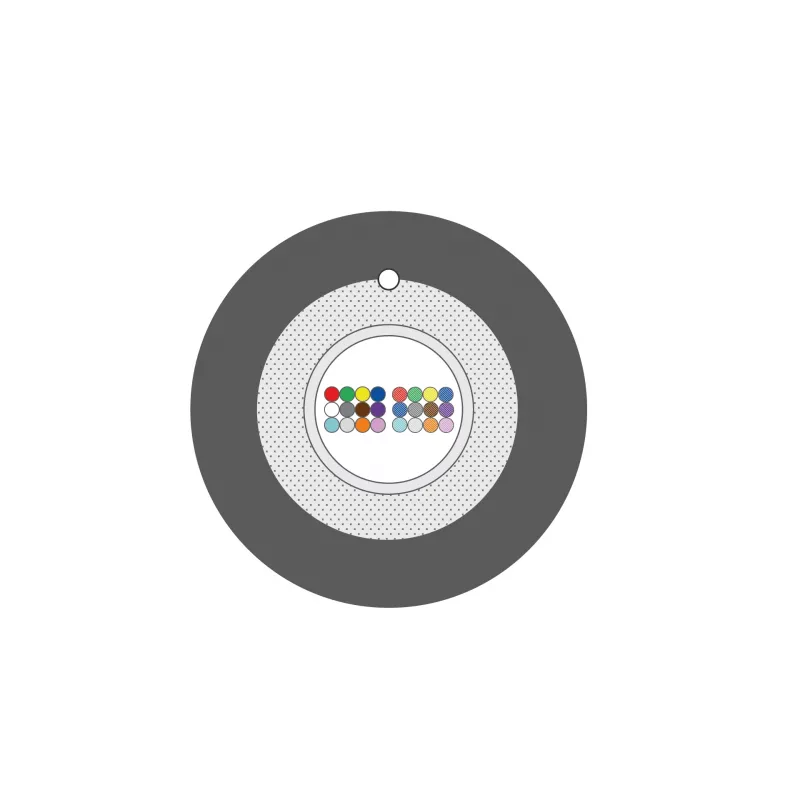

• Cable construction: loose tube, non-metallic
• Rodent protection: yes (non-metallic)
• CPR fire class: Fca
• Outer diameter: 5.8 mm
• Tensile strength: 2000 N
• Jacket colour: black
• Jacket material: UV-resistant, flame retardant
• Fibre core/cladding diameter: 50/125 µm
• Bandwidth (850 nm): 1500 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Max. transmission distance 10GbE (OM3): 300 m
• Application environment: indoor/outdoor
• Operating temperature: -20°C to +70°C
• Minimum bending radius (installation): 116 mm
• Minimum bending radius (operation): 58 mm

Final note

Engineered for reliability, this cable meets the demands of modern high-speed networks with a focus on durability and performance.
