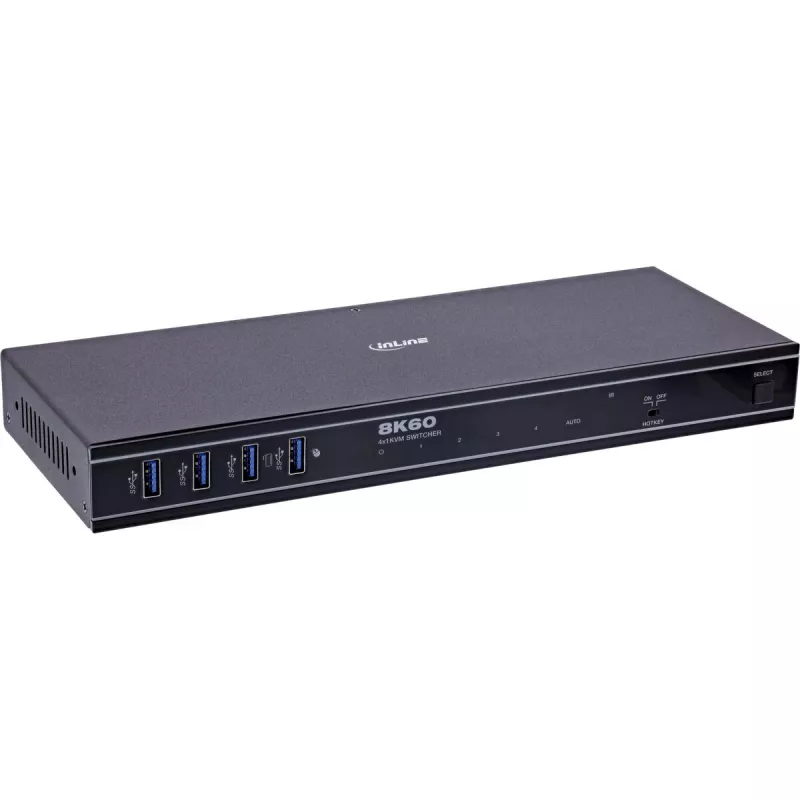

InLine 57885D KVM prepínač, 4-cestný, HDMI, 8K@60Hz, USB 3.2, s IR a RS-232

The InLine 57885D is a 4-way KVM switch that lets you control four computers from a single workstation using one HDMI monitor, mouse, and keyboard. It supports HDMI 2.1 with resolutions up to 8K@60Hz and HDR formats including Dolby Vision, HDR10+, and HLG. Switching can be done via button, hotkey, IR remote control, or RS-232.

Key features

• Control four computers with one mouse, keyboard, and HDMI display
• HDMI 2.1 support for up to 8K@60Hz, 4K@120Hz/144Hz, and 1080p@240Hz
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• USB 3.2 Gen.1 hub with speeds up to 5 Gb/s for sharing peripherals
• Switching via button, hotkey, IR remote control, or RS-232
• Platform-independent (Windows, macOS, Linux), no drivers required
• Metal housing, black

Specifications

• Brand: InLine
• MPN: 57885D
• HDMI inputs: 4 × HDMI (Type A, 19-pin)
• HDMI output: 1 × HDMI (Type A, 19-pin)
• USB ports: 4 × USB 3.2 Gen.1 (USB-A), 4 × USB host (USB-B)
• RS-232: 3-pin terminal connection
• IR EXT: 3.5 mm stereo jack (38 kHz)
• Audio output: 3.5 mm stereo jack (PCM 2.0CH)
• Video resolution: up to 8K@60Hz, 4K@120Hz/144Hz, 1080p@240Hz
• Colour depth: 8, 10, 12 bits
• Colour spaces: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• HDMI version: HDMI 2.1
• HDCP compatibility: HDCP 2.3
• Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• Latency: no video or audio delay
• CEC support: yes
• ESD protection: ±8 kV air / ±4 kV contact
• Housing: Metal housing, colour black
• Dimensions: 270 × 100 × 30 mm
• Weight: 756 g
• Operating ambient temperature: 0–40 °C
• Storage ambient temperature: –20–60 °C
• Humidity: 20–90% (non-condensing)
• External power supply: 100–240 V AC, 50/60 Hz input; 12.0 V DC, max. 1.0 A, 12.0 W output
• Average efficiency during operation: 85.23%
• Efficiency at low load (10%): 78.53%
• Power consumption at zero load: 0.09 W
• Number of inputs: 4
• Complies with HDMI standard: 2.0
• Article type: Switch
• Article height: 3.0cm
• Article width: 27cm
• Article length: 10cm
• Country of origin: Taiwan
• Interface: HDMI
