Nástenný rack EFB Elektronik 691606VGR.60

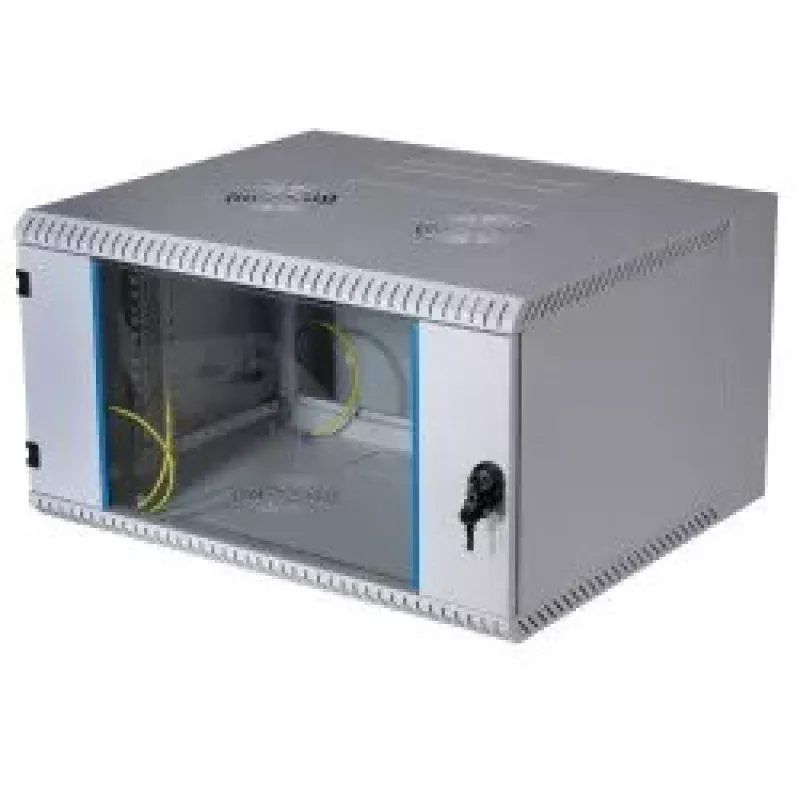

The EFB Elektronik 691606VGR.60 wall mounted rack is a compact 6U solution for organizing networking and server equipment in limited spaces. Designed for indoor environments, this grey rack measures 600 mm in width, 600 mm in depth and 330 mm in height, offering a standardized 19" mounting profile and a total load capacity of up to 40 kg. The integrated key lock provides controlled access while the IP20 protection rating indicates suitability for dry, protected indoor areas. The rack’s streamlined appearance and practical dimensions make it suitable for server rooms, communication closets, office networks and home lab installations.

Advantages

This wall mounted rack combines space efficiency with secure access: its 6U format and 19" mounting compatibility allow installation of patch panels, switches and small servers in a compact footprint. The keyed lock helps prevent unauthorized access to mounted equipment. With a 40 kg maximum load capacity and a rigid 600 x 600 mm footprint, the unit supports typical light-to-moderate networking hardware. The grey finish provides a neutral, professional look that integrates with office and technical environments.

Suitable for

• Mounting patch panels, network switches and small routers in office or home network installations
• Housing telecommunications equipment and power distribution units in communication cabinets
• Organizing audio-visual components and small servers in server rooms or media racks
• Securing equipment in IT closets and shared workspaces where wall mounting saves floor space

Key specifications

• Rack capacity: 6U
• 19" mounting profile compatible
• Maximum load capacity: 40 kg
• Width: 600 mm
• Depth: 600 mm
• Height: 330 mm
• Protection rating: IP20 (indoor use)
• Color: Grey

How to use

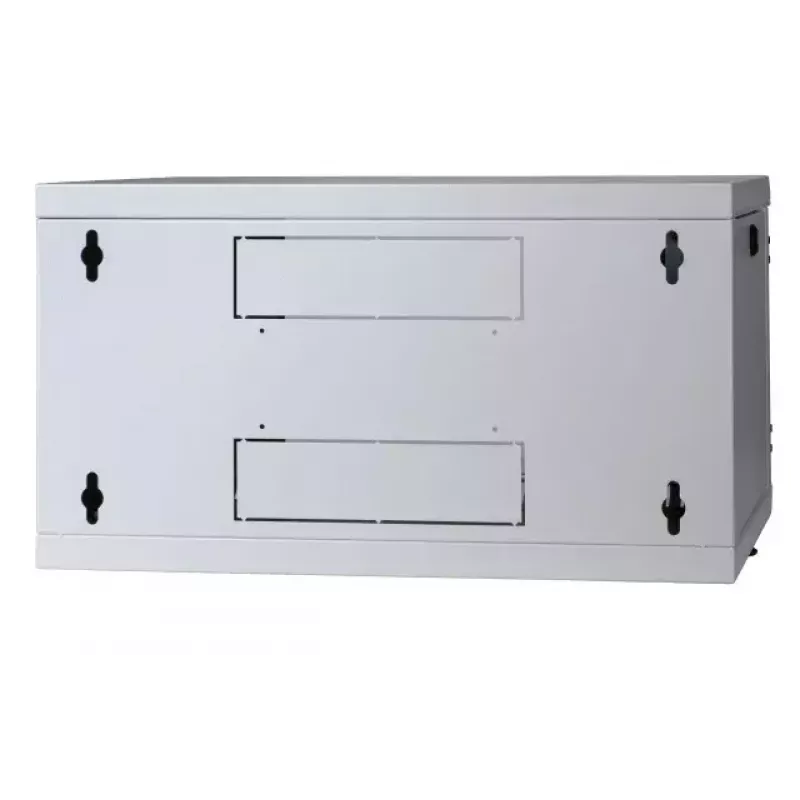

Secure the rack to a suitable load-bearing wall using appropriate anchors and fixings for the wall material, ensuring that the mounting surface can support the combined weight of the rack and installed equipment. Install equipment onto the 19" mounting rails according to manufacturer mounting guidelines, distributing weight evenly and avoiding exceeding the 40 kg maximum load. Use the key lock to control physical access. Route network and power cables through available openings, maintain proper ventilation clearances and avoid placing the rack in damp or dusty environments due to the IP20 rating.

Recommendations

Position the rack at a height that allows comfortable access to mounted devices while keeping heavier equipment lower to reduce strain on mounting points. Inspect wall fixings periodically and plan cable management to maintain airflow and simplify maintenance.
