NETGEAR 10 Gigabit LR SFP+, balenie 10 ks sieťový transceiver modul 10000 Mbit/s SFP+

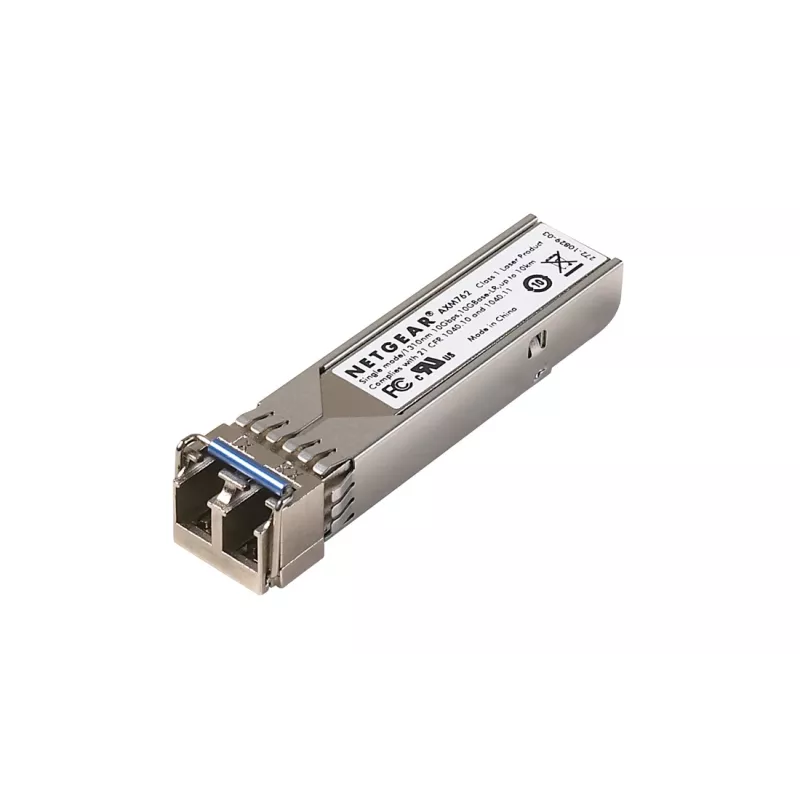

The NETGEAR AXM762P10-10000S is a pack of ten SFP+ transceiver modules that add 10 Gigabit Ethernet long-reach LC fiber connectivity to standard SFP+ interfaces. Each module supports 10GBase-LR fiber technology with an LC connector, fits standard 10Gigabit SFP+ ports (including the two built-in SFP+ interfaces of GSM72xxPS / GSM73xxS and the AX743 SFP+ Adapter module), and provides hot-swappable installation for flexible deployment.

Advantages

These SFP+ modules enable reliable 10 Gigabit links over single-mode and multimode fiber, supporting long distances up to 10 km on 9/125µm SMF and shorter multimode ranges on OM3 and OM1. The modules are compatible with common SFP+ and XFP 10GBase-LR LC connectivity, allowing interoperation between devices using either form factor when both use the same 10GBase-LR LC fiber type. Their hot-pluggable design simplifies upgrades and maintenance without powering down equipment.

Suitable for

• Uplinking core or distribution switches over single-mode fiber up to 10 km
• High-speed links between servers, storage and switches in data centers
• Shorter multimode connections within buildings or campus environments (OM3/OM1)

Key specifications

• Form factor: SFP+
• Standard: 10GBase-LR
• Connector: LC
• Maximum data rate: 10000 Mbit/s
• Single-mode reach: up to 10 km on 9/125µm SMF
• Multimode reach: up to 300 m on 50/125µm OM3; up to 33 m on 62.5/125µm OM1
• Weight (per module): 0.0192 kg
• Hot-swappable: yes

How to use

Insert an AXM762P10-10000S SFP+ transceiver into an empty 10G SFP+ port until it clicks, connect an LC-terminated fiber cable appropriate to the fiber type and distance required (SMF for long reach, OM3/OM1 for multimode), and verify link and speed status in the switch or host interface. Modules can be installed or removed while the system is powered on, but follow your equipment vendor’s guidance for module compatibility and firmware requirements.

Recommendations

Use single-mode 9/125µm fiber and proper LC patching for links approaching 10 km, and select OM3 or OM1 multimode fiber depending on required distance; check device compatibility lists to ensure full interoperability and observe proper ESD handling during installation.
