Neupravovaný switch PLANET IP30 Ind 8-P 10/100/1000T

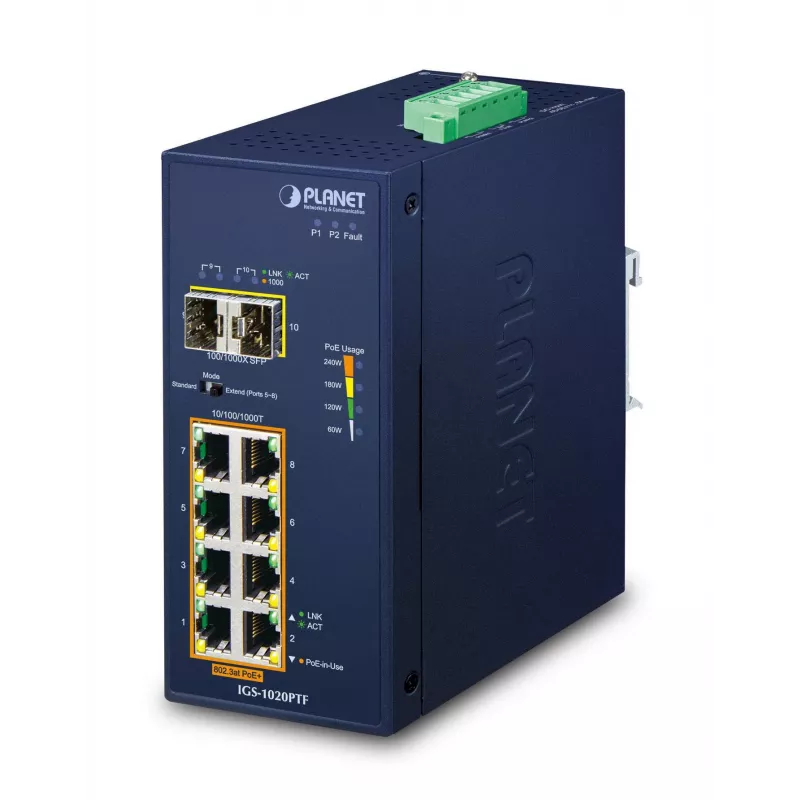

The PLANET IGS-1020PTF is an industrial-grade, unmanaged Gigabit Ethernet PoE+ switch in an IP30 metal enclosure. It provides eight 10/100/1000BASE-T ports with IEEE 802.3at PoE+ and two 100/1000BASE-X SFP fiber uplink interfaces. Designed for hardened environments, the switch supports dual 48–56 V DC power inputs with hardware failover, a total PoE budget of up to 240 W, a MAC address table for efficient forwarding, and operating temperatures from -40 to 75 °C.

Advantages

The device offers full PoE+ power across eight Gigabit copper ports and flexible fiber uplinks via two SFP slots, enabling long-distance links and flexible speed choices. Its rugged IP30 metal housing and fanless design provide immunity to electromagnetic interference and quiet operation, while dual power inputs and surge/ESD protection improve reliability in industrial installations. A front-panel LED shows real-time PoE power usage for simple monitoring.

Suitable for

• IP camera surveillance systems in industrial or outdoor control cabinets
• Wireless access point installations requiring PoE+ power
• Factory automation and process control networks
• Long-distance uplink connections to backbone switches or monitoring centers (using SFP transceivers)

Key specifications

• Model: PLANET IGS-1020PTF (MPN: IGS-1020PTF, EAN: 4711605284943)
• Ports: 8 × 10/100/1000BASE-T (PoE+), 2 × 100/1000BASE-X SFP
• PoE standard and budget: IEEE 802.3at (PoE+), up to 240 W total
• DC input voltage: 48–56 V (dual power inputs with hardware failover)
• Switching capacity: 20 Gbit/s; MAC address table entries: 8000
• Operating temperature: -40 to 75 °C
• Housing: IP30 metal, fanless
• Weight: 0.879 kg
• Standards: IEEE 802.3/802.3u/802.3ab/802.3z/802.3af/802.3at/802.3az

How to use

Mount the switch on a DIN rail, wall or side bracket in a suitable enclosure, connect the two DC power inputs to a 48–56 V DC supply for redundancy, and insert SFP transceivers into the mini-GBIC slots if fiber uplinks are required. Connect PoE-enabled devices such as IP cameras or access points to the RJ-45 ports; select the desired operation mode (Standard or Extend) using the built-in DIP switch. In Standard mode the ports operate as normal Gigabit PoE+; in Extend mode ports run at 10 Mbps full duplex and can deliver 20–25 W of PoE over distances up to 250 m on UTP cable.

Recommendations

For reliable long-term operation, use regulated dual DC power sources within 48–56 V, keep SFP transceivers matched to fiber type and distance requirements, and observe the total PoE budget when connecting multiple powered devices. Use the PoE Power Usage LEDs to monitor consumption and avoid overloading the switch.
