Optický kábel BlueOptics MTP-4LC-S2M-BO 4x LC G.657.A1 2 m zelený

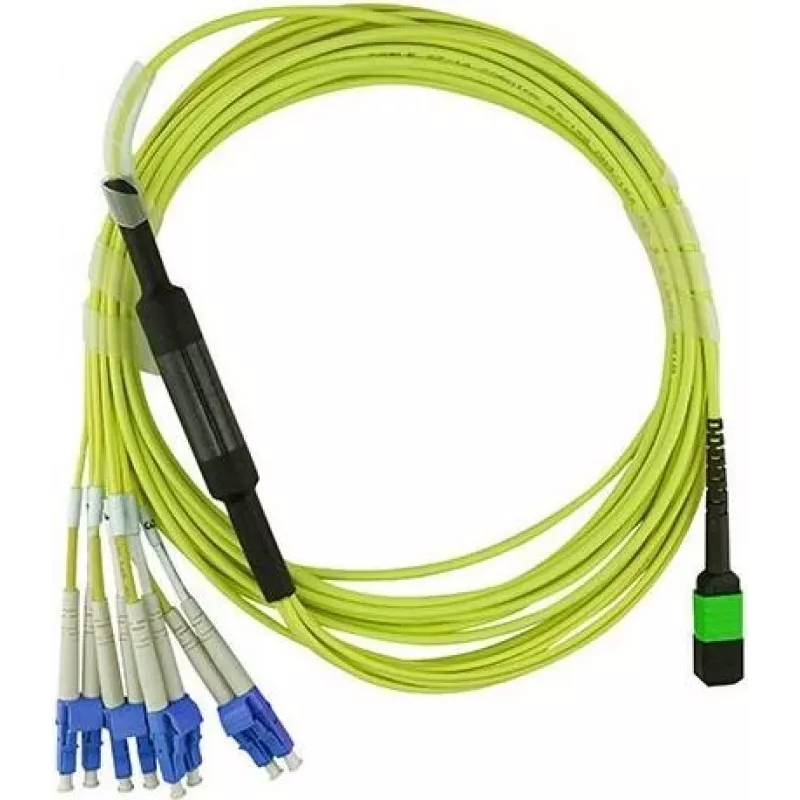

The BlueOptics MTP-4LC-S2M-BO 4x LC G.657.A1 2 m Green is a 2-metre multimode fibre optic assembly designed for high-density network environments. It combines a multi-fibre MTP connector on one end with four LC connectors on the other, using ITU-T G.657.A1 single-mode fibre with a 9 µm core diameter. The cable is intended for reliable optical signal transmission with low attenuation and is suitable for use in InfiniBand and other high-throughput applications where compact connectorization and clear visual identification are required.

Advantages

This fibre cable offers consistent single-mode performance with minimal bending sensitivity due to the G.657.A1 fibre specification. The MTP termination supports space-saving parallel connections while the four LC termini allow direct connection to standard LC ports. The green jacket provides quick visual identification in cable trays or patch panels, and the 2 m length balances reach and manageability for rack and cabinet layouts.

Suitable for

Key specifications

How to use

Install the MTP end into the corresponding MTP port on a trunk cable or switch, and connect each LC connector to the matching LC ports on transceivers or patch panels, respecting transmit/receive orientation. Handle the fibre by the connector bodies and avoid touching the polished end faces; use appropriate dust caps during storage. Route the cable to avoid tight bends and secure it with cable management accessories to prevent strain on connectors. Verify optical continuity and insertion loss with suitable test equipment after installation.

Recommendations

Use the cable in environments where single-mode G.657.A1 performance and compact MTP-to-LC breakout are required. Maintain minimum bend radii as specified for G.657.A1 fibres, keep connectors clean with proper cleaning tools, and store with dust caps when not in use to preserve signal integrity.
