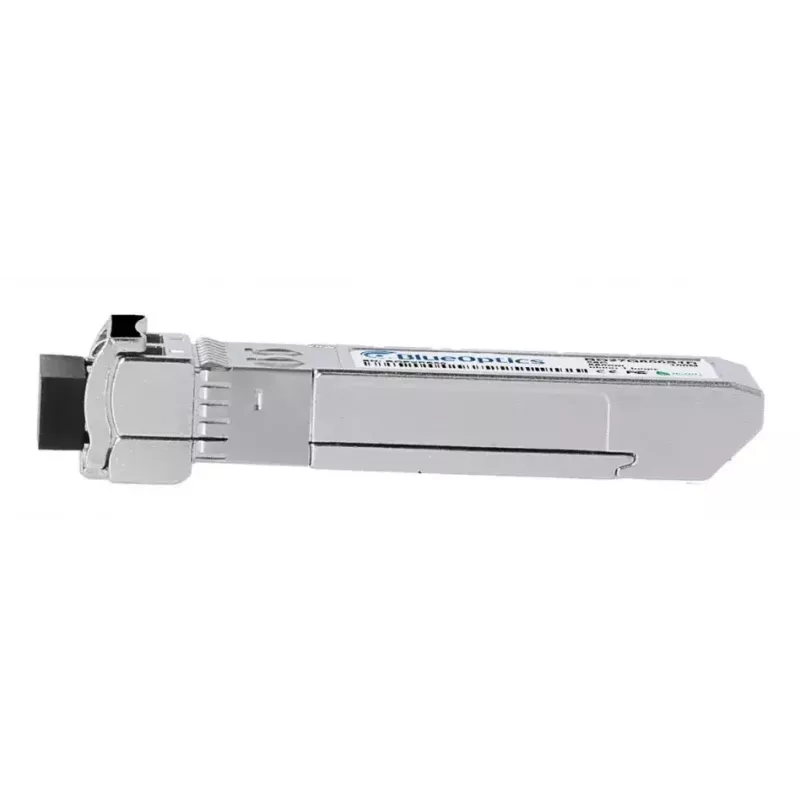

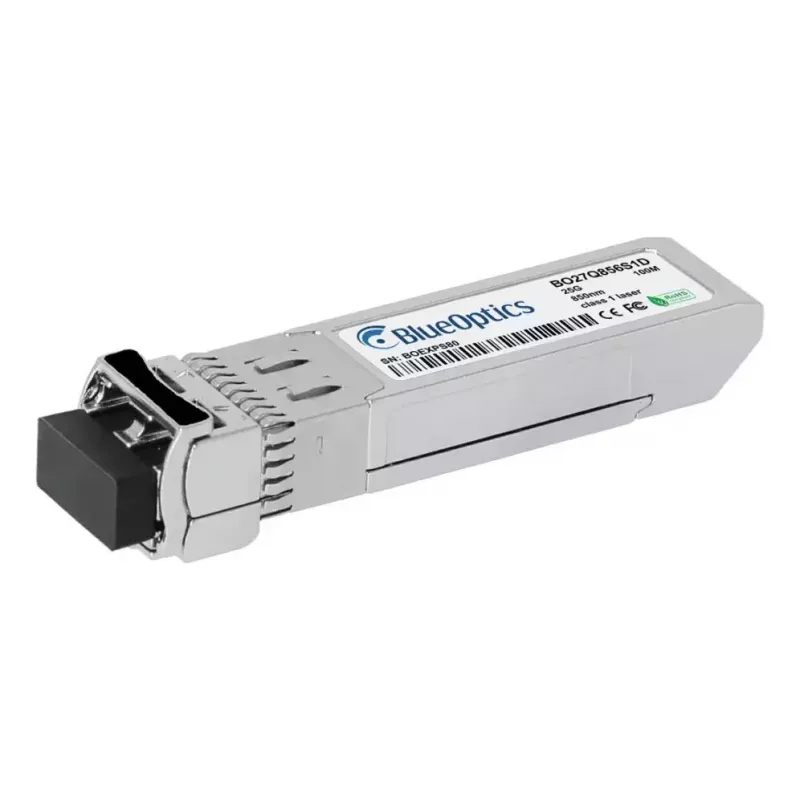

Optický transceiver modul BlueOptics 407-BBYP-BO SFP28 LC hliník 40g

The BlueOptics 407-BBYP-BO SFP28 LC Aluminium 40g is a fiber optic transceiver module designed for high-speed short-range multimode transmission. It uses an SFP28 interface and an LC duplex connector, housed in an aluminium enclosure and weighing approximately 40 g. The module supports 25G-class optical links over multimode fiber and is intended for use in compatible networking equipment that accepts SFP28 transceivers.

Advantages

This SFP28 transceiver offers compact SFP28 form-factor compatibility and an aluminium casing that provides mechanical protection and thermal dissipation. The LC connector supports duplex multimode fiber connections and the module’s design targets reliable high-speed data transfer. Low weight and standardized interface make it simple to install and replace in supported network hardware.

Suitable for

• Short-range 25G Ethernet links over multimode fiber
• Integration in switches, routers and storage systems that accept SFP28 modules
• Data center patch-panel and server uplink connections
• Infrastructure upgrades requiring SFP28 LC transceivers

Key specifications

• Interface type: SFP28
• Connector: LC duplex
• Optical medium: Multimode fiber (MMF)
• Form factor: SFP28 transceiver module
• Enclosure material: Aluminium
• Weight: approximately 0.04 kg
• Supported data rate class: 25G (25 gigabits per second)

How to use

Insert the transceiver into a compatible SFP28 slot on the network device until it clicks into place, then connect LC duplex multimode fiber patch cords to the module’s LC ports, observing transmit and receive orientation. Ensure the host device supports SFP28 modules and the intended 25G link configuration. After physical installation, verify link status in the device management interface and confirm optical power and signal parameters where available.

Recommendations

Use multimode fiber patch cords and connectors that match the rated performance for short-range 25G links and keep connector endfaces clean to maintain signal quality. Confirm compatibility with the target hardware platform and, if available, enable digital diagnostics monitoring on the host device to monitor supply voltage, optical power and temperature for proactive maintenance.
