Optický transceiver modul BlueOptics PAN-QSFP28-100GBASE-BIDI-BO QSFP28 MPO MTP

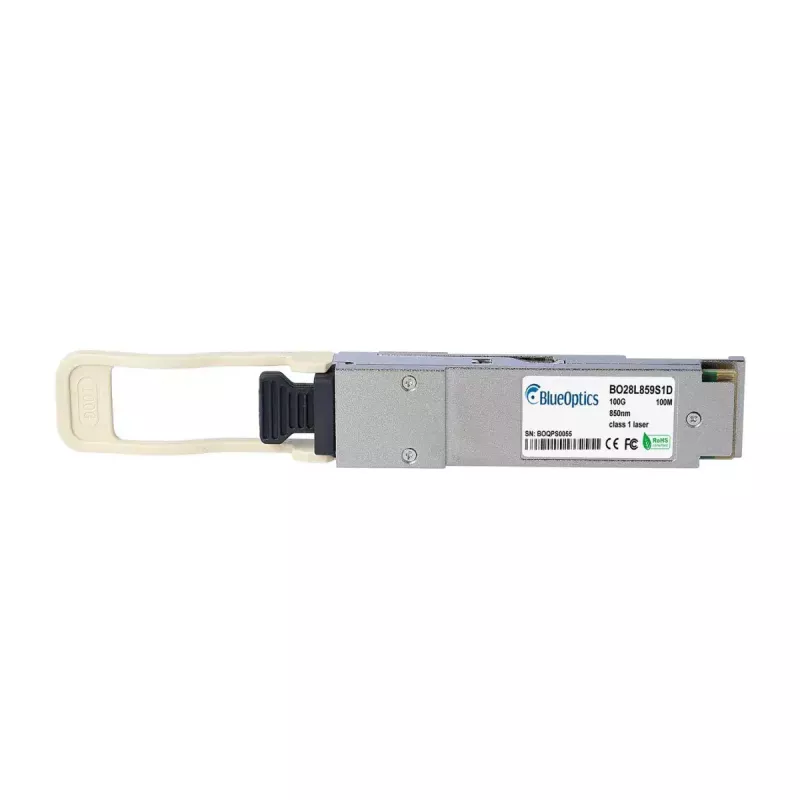

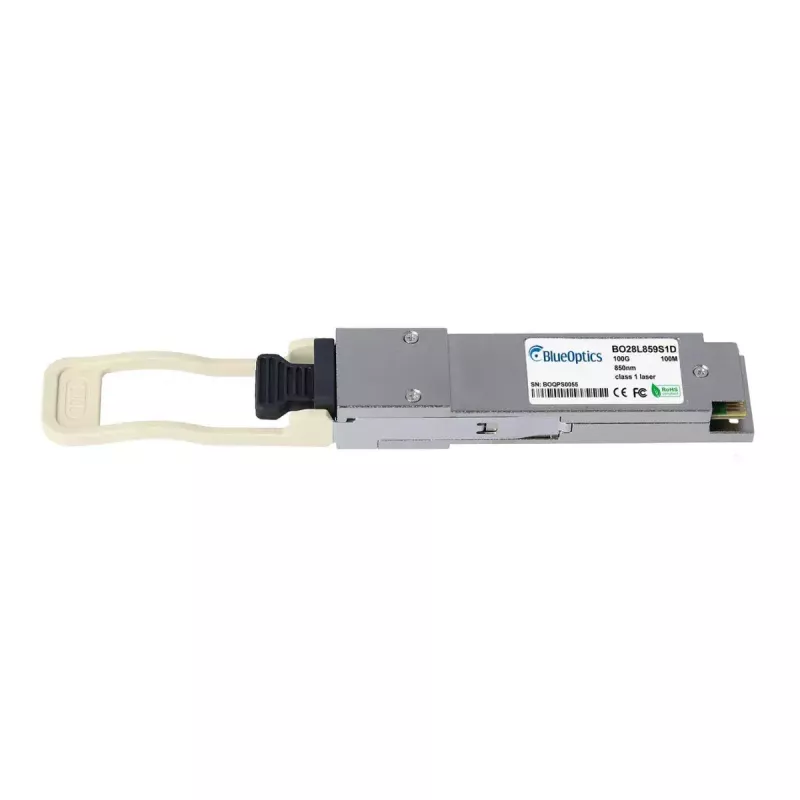

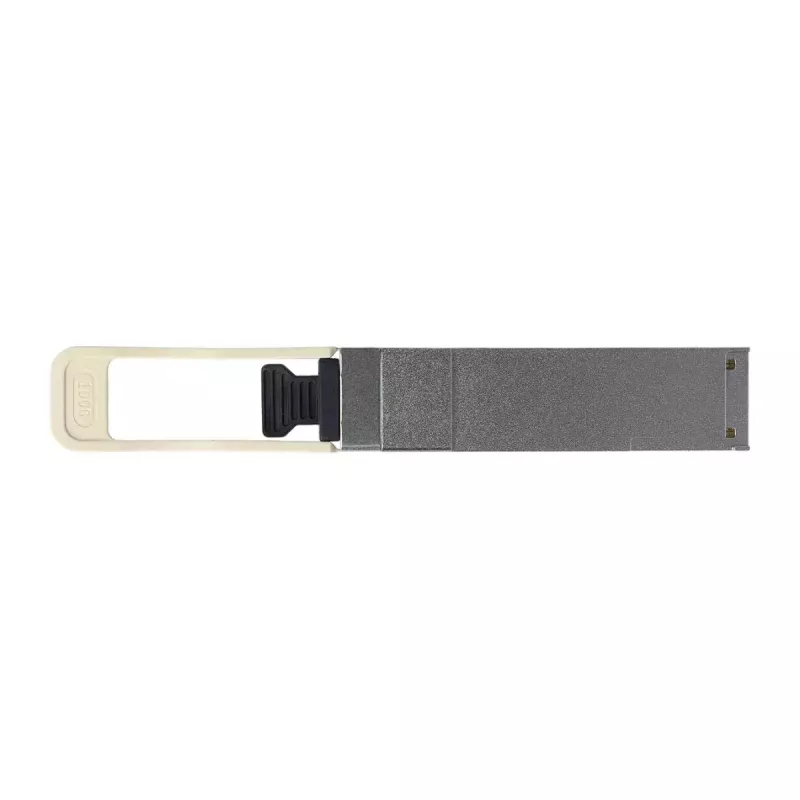

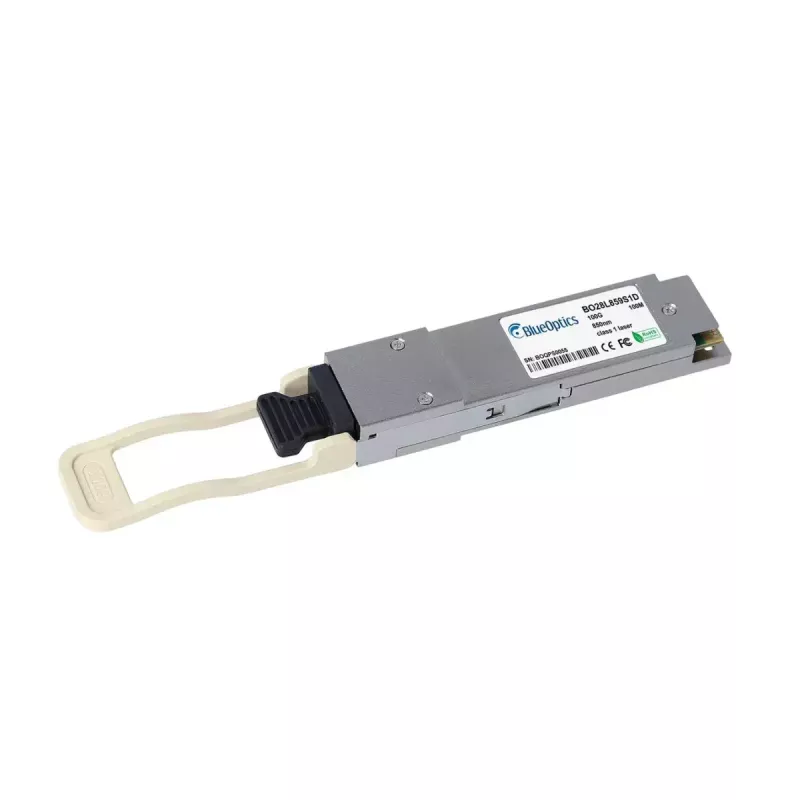

The BlueOptics PAN-QSFP28-100GBASE-BIDI-BO is a fiber optic transceiver module engineered for 100GBASE applications. It uses a QSFP28 interface and an MPO/MTP connector for multi-mode fiber links, supports simultaneous transmit and receive channels, and is designed to fit into systems that accept QSFP28 modules. The module is lightweight (0.04 kg) and finished in aluminium colour, intended for deployment in data centres and high-speed network environments where 100 Gbps optical links are required.

Advantages

This QSFP28 transceiver provides high-density 100G connectivity with MPO/MTP connectivity following common MSA specifications. It supports simultaneous transmit and receive channels over multi-mode fiber and includes digital diagnostic monitoring (DDM/DOM) capabilities for real-time monitoring of parameters such as supply voltage, laser bias current, output and received optical power, and temperature when supported by host hardware. The module is compact and lightweight, enabling simple installation and integration into standard QSFP28 ports.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP28 module into a compatible QSFP28 port on the network device while the device is powered down or following the vendors hot-plug procedures. Connect an MPO/MTP multimode fiber patch cord to the modules MPO/MTP receptacle and route the other end to the destination transceiver or patch panel. Ensure the connected hardware supports the modules DDM/DOM functions if monitoring is required. After insertion, verify the link status through the host equipments management interface and confirm optical power and diagnostics values if available.

Recommendations

Use high-quality MPO/MTP multimode patch cords and maintain proper fiber cleanliness to achieve optimal optical performance. Verify compatibility with the target hardware platform and confirm support for the modules diagnostic features in the host device. For best results in short-reach multimode installations, follow recommended fiber types and link lengths from equipment vendors and adhere to standard installation practices in data centre environments.
