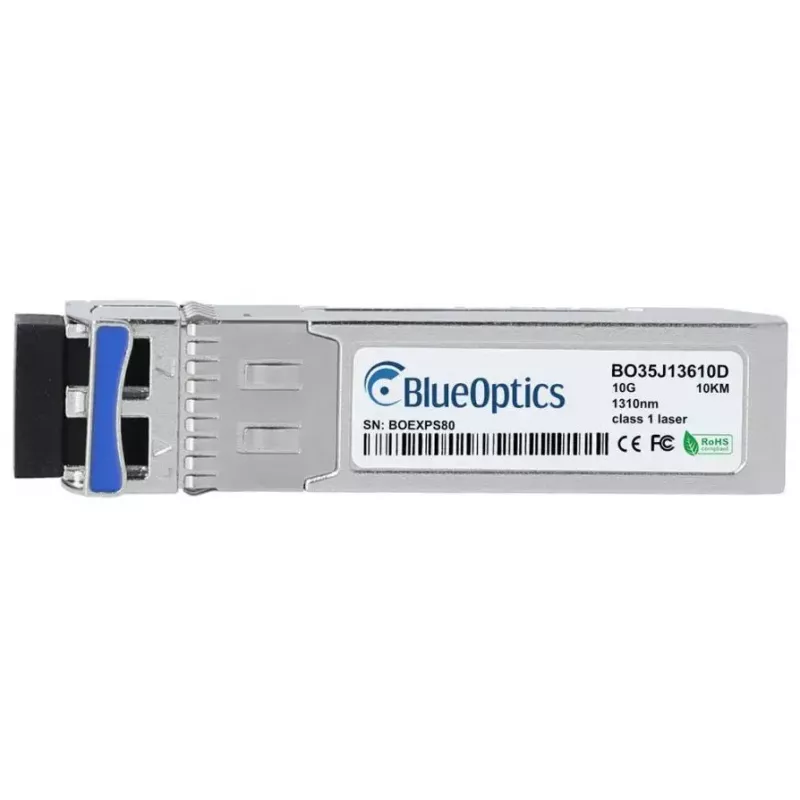

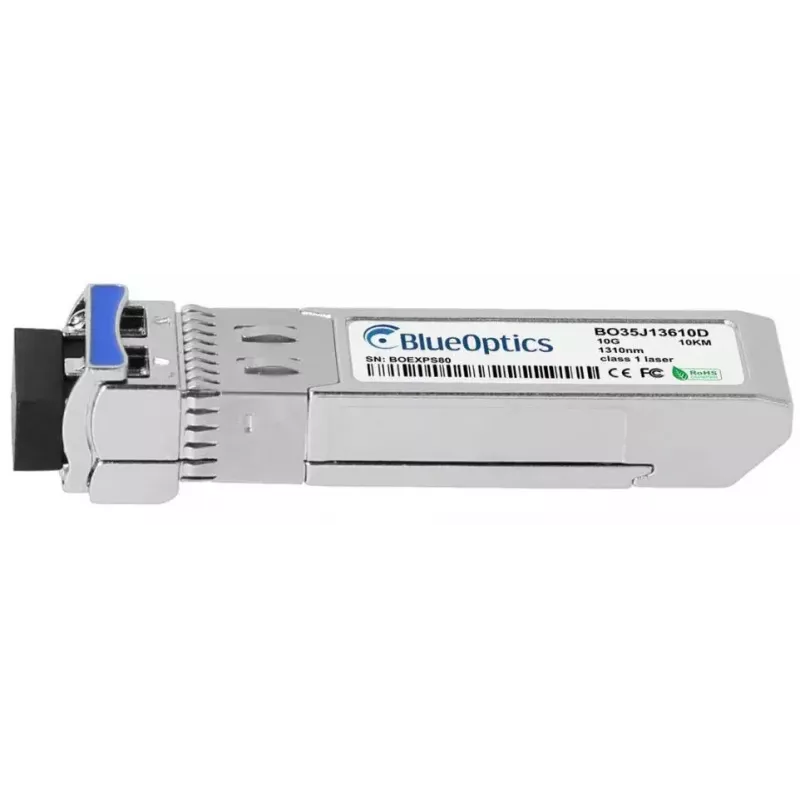

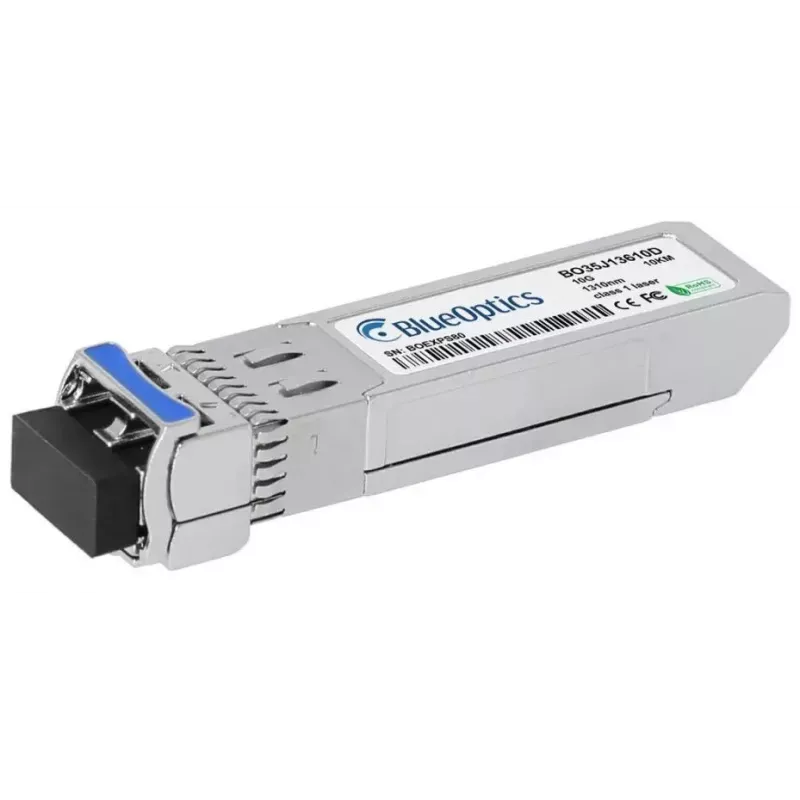

Optický transceiver modul BlueOptics RDH10265/3-BO SFP+ 10km

The BlueOptics RDH10265/3-BO SFP+ 10km is a fiber optic transceiver module designed for single‑mode optical links up to 10,000 meters. Built in an aluminium housing and weighing approximately 20 grams, this SFP+ module provides 10GBASE‑LR compatible transmission using LC duplex connectors and supports simultaneous transmit and receive operation on separate fibers. The product is intended for network equipment that accepts MSA‑compliant SFP+ devices and targets high‑speed Ethernet and related optical protocols.

Advantages

The module follows common MSA form‑factor standards and provides 10 Gbps optical transmission over single‑mode fiber to a maximum range of 10 km. Its aluminium construction offers a compact, lightweight transceiver suitable for dense deployment; the LC duplex interface enables standard connections to patch panels and transceivers. Where supported by the host hardware, the module provides digital diagnostic monitoring (DDM/DOM) for real‑time parameters such as supply voltage, laser bias current, output and received power, and temperature.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into an empty SFP+ port of compatible network equipment until it latches. Connect LC duplex single‑mode fiber patch cords, ensuring correct transmit‑to‑receive orientation. Verify that the host device supports 10GBASE‑LR SFP+ modules and enable any required software or firmware settings if the device enforces vendor checks. If available, monitor DDM/DOM parameters from the host to confirm optical power levels and operating temperature.

Recommendations

Use single‑mode fiber patch cords rated for 10G transmission and keep connectors clean to maintain signal quality. Confirm host compatibility and, if possible, test the module in your hardware before large deployments. For extended life and stability, ensure adequate cooling and avoid physical stress to the module and fiber connectors.
