Ruckus E100G-QSFP28-LR4L-2KM kompatibilný BlueOptics QSFP28 100GBASE-LR4L 2km SMF transceiver

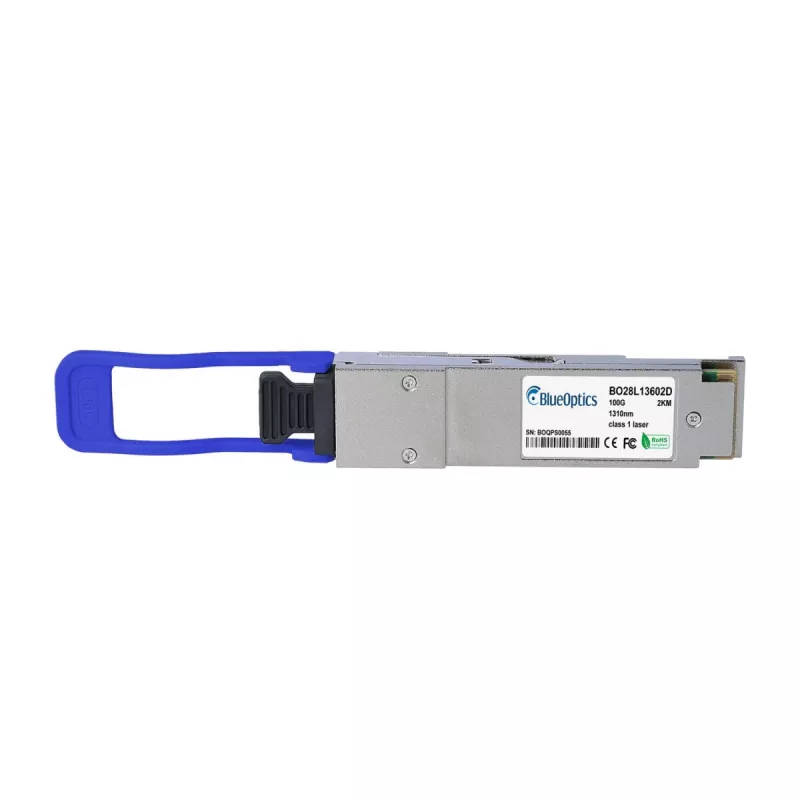

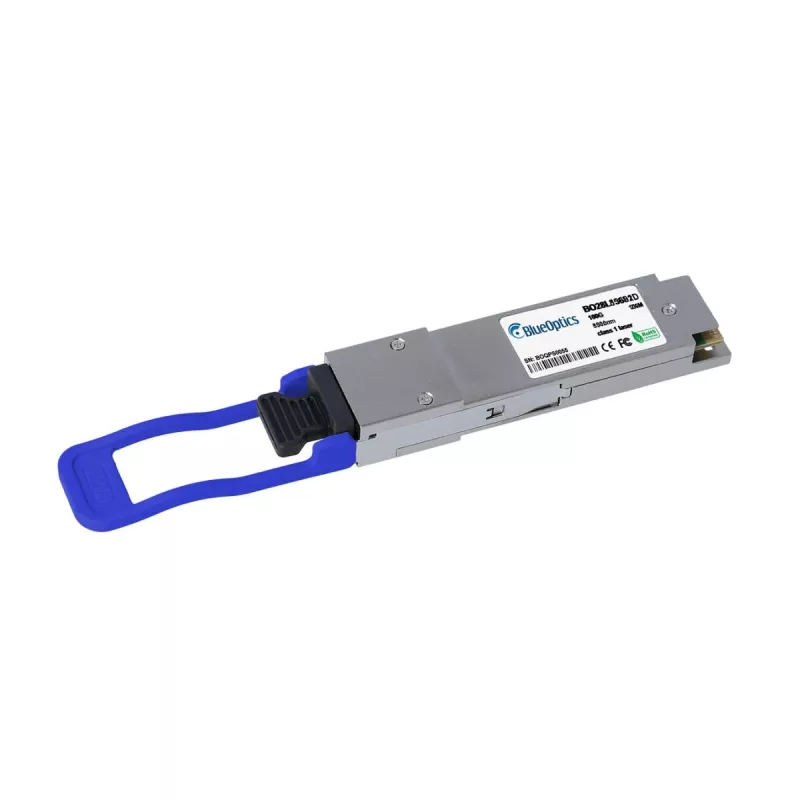

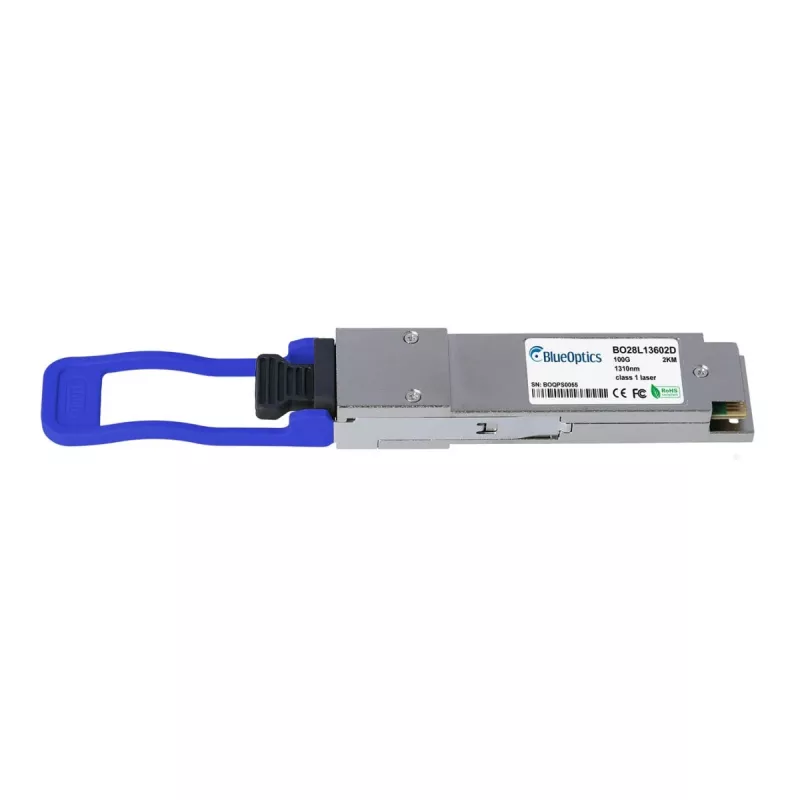

The BlueOptics BO28L13602D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet networks. It is fully compatible with Ruckus E100G-QSFP28-LR4L-2KM equipment, ensuring seamless integration and reliable data transmission over single-mode fiber at distances up to 2 km.

Advantages

This transceiver offers low power consumption (<4.5W), hot-pluggable design, and digital diagnostic monitoring (DDM) for real-time performance tracking. It is MSA and RoHS compliant, guaranteeing interoperability and environmental safety.

Suitable for

• Data center interconnects
• Enterprise network uplinks
• Telecommunications infrastructure
• High-speed computing environments

Key specifications

• Transceiver Type: QSFP28
• Data Rate: 100 Gbps (4x25Gb/s NRZ)
• Standard: 100GBASE-LR4L
• Max Distance: 2 km (1.24 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: Duplex LC
• Wavelengths: 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm (LAN-WDM)
• Power Consumption: <4.5W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• Compliance: MSA, RoHS

Recommendations

For optimal performance, pair this transceiver with high-quality single-mode fiber patch cables and ensure proper cleaning of optical connectors. Compatible with Ruckus switches and routers supporting QSFP28 interfaces.
