Samostatne stojaci rack Triton RMA-18-A68-CAX-N1 18U 800 kg sivá

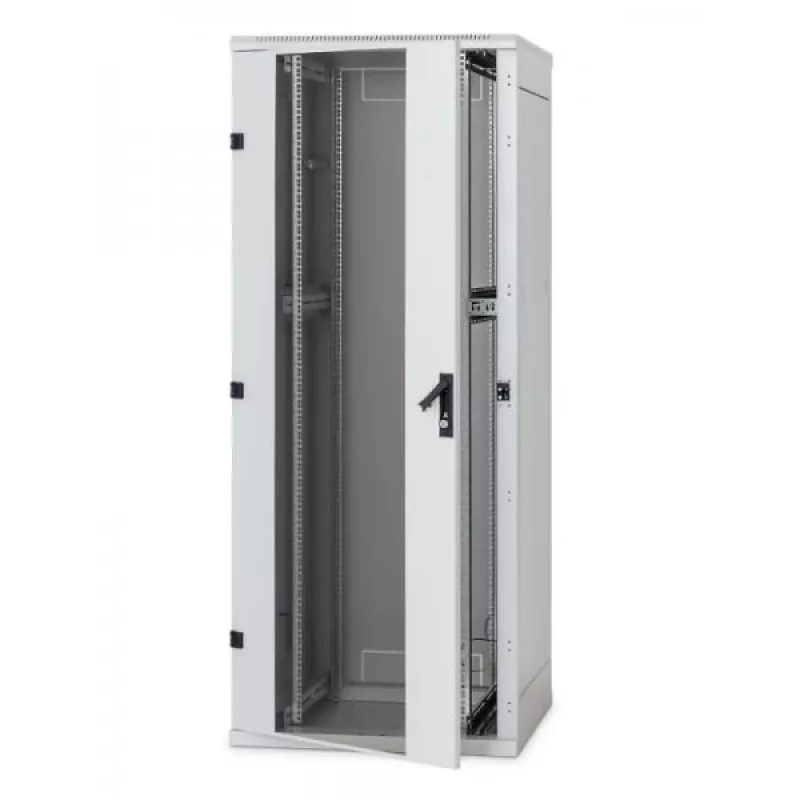

The Triton RMA-18-A68-CAX-N1 is a freestanding network cabinet designed for data and telecommunication equipment. It provides 18U of usable rack space, a maximum load capacity of 800 kg and an IP20 rating. The cabinet features a rigid welded frame, adjustable 19" vertical rails, removable side panels and rear cover, cable entry panels, and options for castors or levelling feet. Its 600 mm width, 800 mm depth and 900 mm height make it suitable for common applications where a compact but robust rack is required.

Advantages

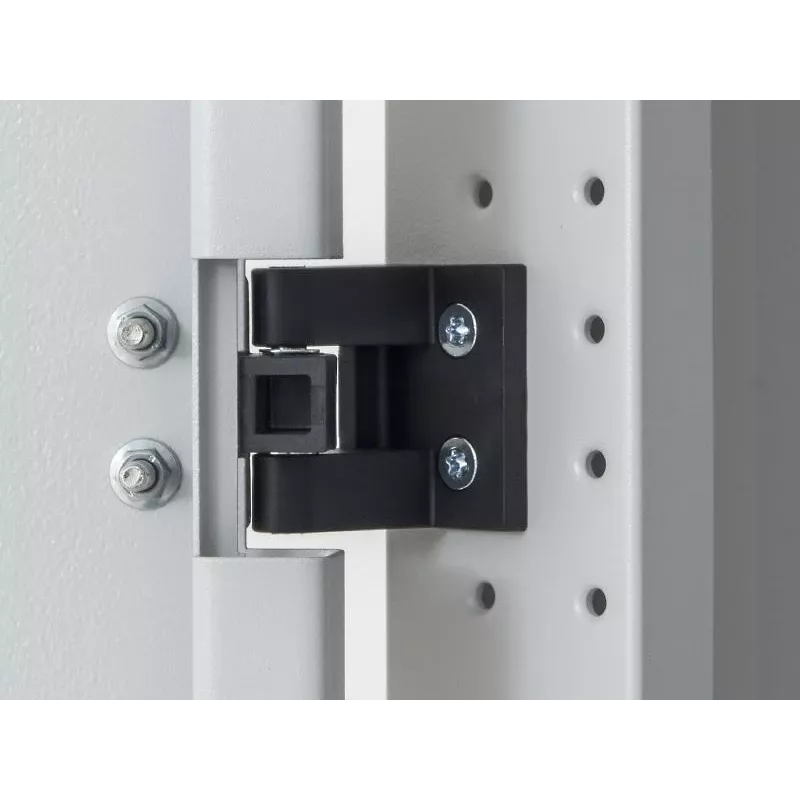

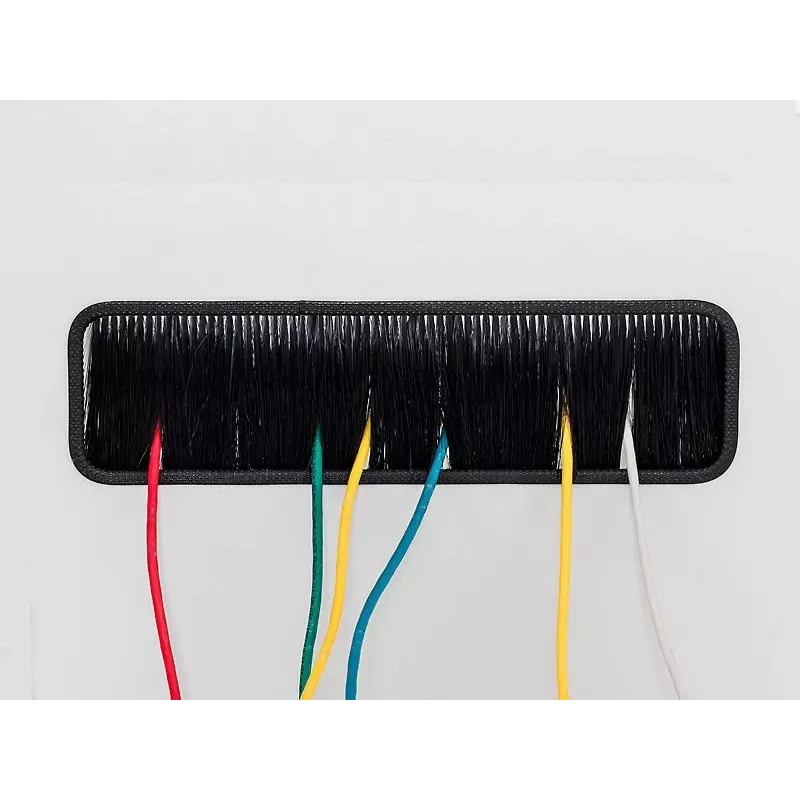

The cabinet’s robust welded construction and 1.3 mm thick skeleton rails ensure mechanical strength and a consistent appearance. Doors offer nearly 180° opening and can be reversed or removed; double-wing doors use hook-on hinges. Adjustable vertical rails allow flexible equipment placement and simplify cable routing. Breakout-type blanking panels at cable entry points and brush strips limit dust ingress. The design supports optional fan doors and Triton fan units, horizontal cable management for heavy loads and a swing frame option for easy front access to equipment.

Suitable for

• Small server rooms and network closets
• Telecommunication equipment racks
• IT equipment with up to 18U height
• Installations requiring up to 800 kg load capacity

Key specifications

• Model: Triton RMA-18-A68-CAX-N1
• Rack capacity: 18U
• Dimensions (W×D×H): 600 × 800 × 900 mm
• Maximum load: 800 kg
• Weight: 44.5 kg
• IP rating: IP20
• Colour: Grey

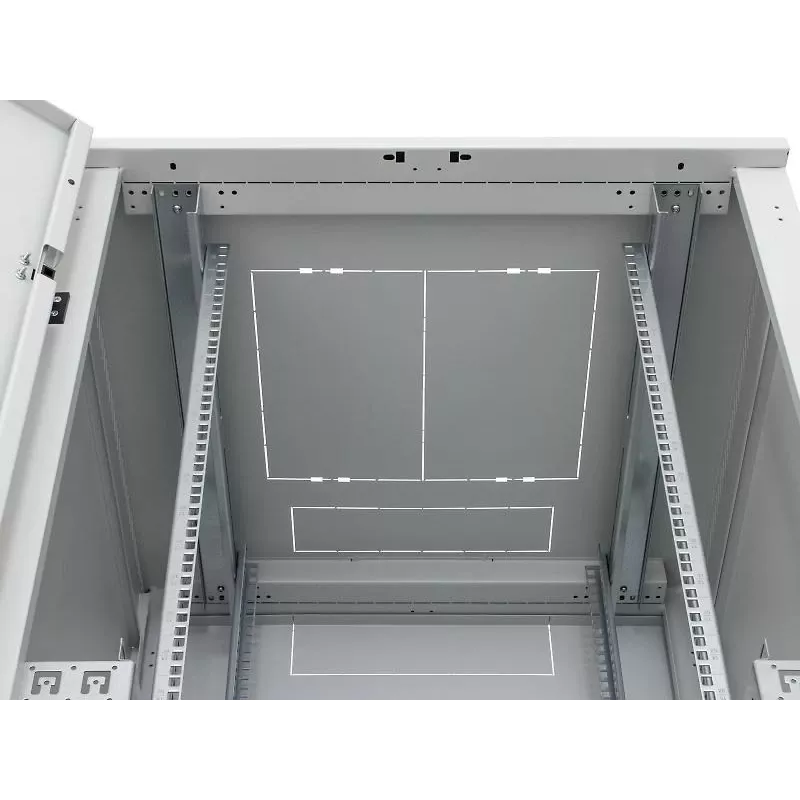

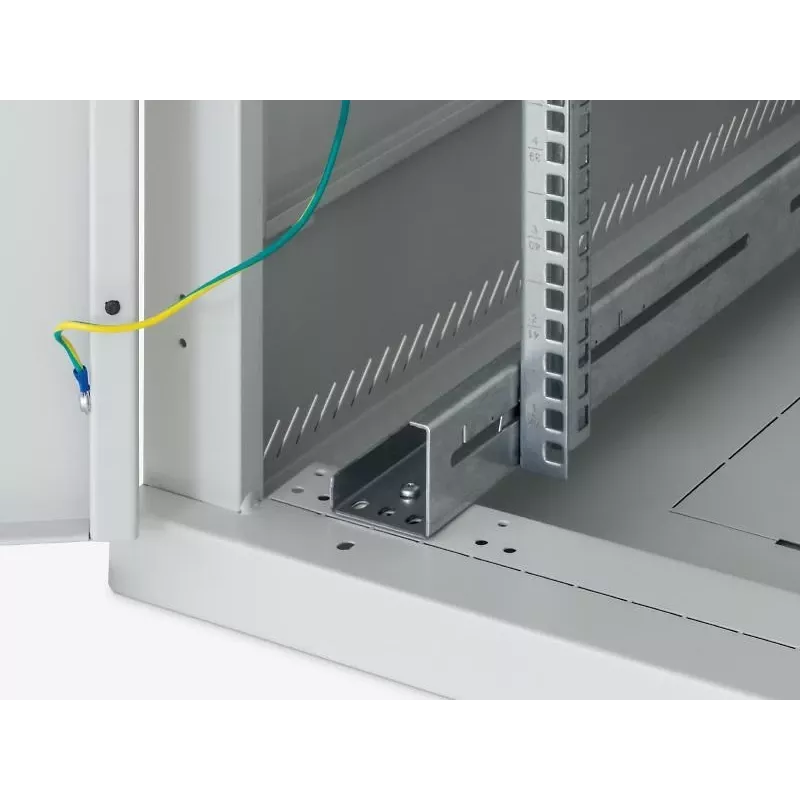

• Adjustable 19" vertical rails; option for 21"/23" spans on 800 mm wide units (Flex frame)

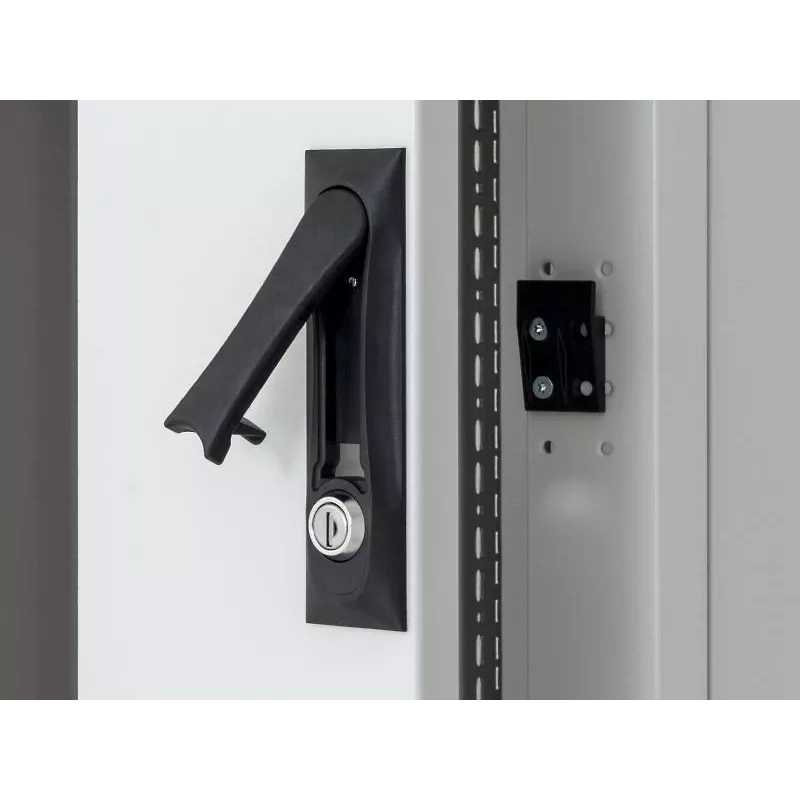

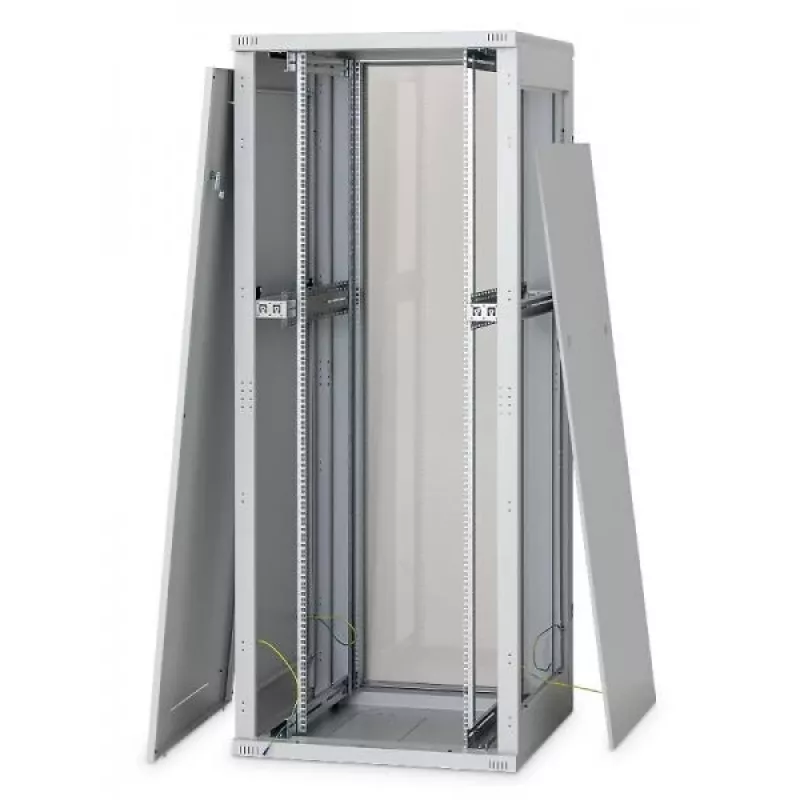

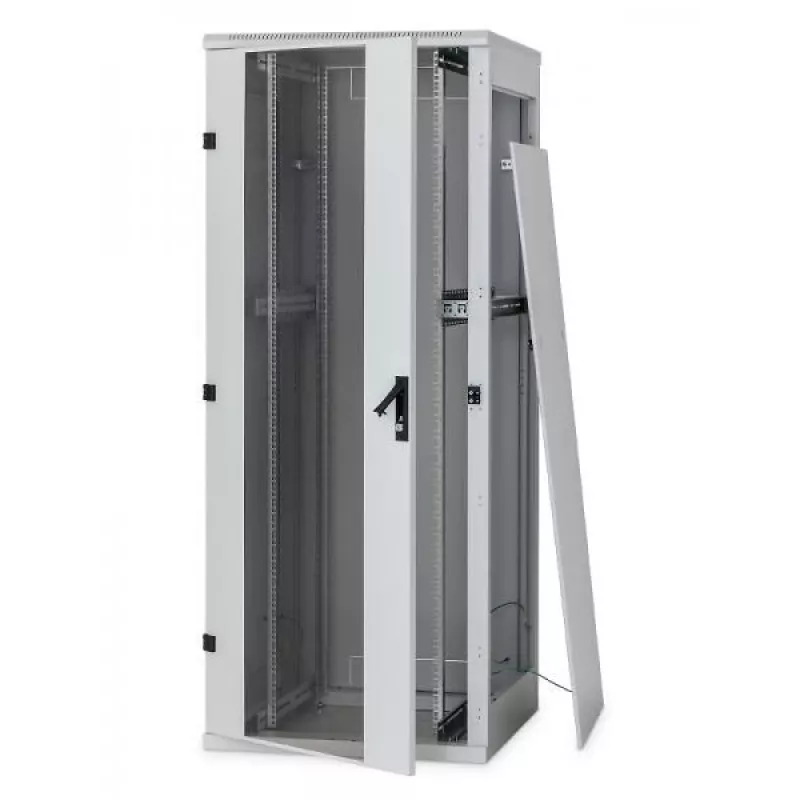

• Removable side panels and rear cover; lock using same key as door

How to use

Place the cabinet on levelling feet or install optional castors or a base. Adjust the vertical 19" rails to the required depth for your equipment and secure devices using standard rack mounting. Use the breakout panels and brush strips to route and seal cables through top, bottom and rear entries. If required, fit the special fan door and Triton fan units for active cooling, or install horizontal cable management for installations with loads over 500 kg. Doors can be removed or reversed to change opening direction.

Recommendations

For reliable ventilation, consider installing fan units when densely populating the 18U space or when equipment generates significant heat. For loads above 500 kg, add horizontal cable management in the skeleton to reinforce the structure. Use the same key locking for side panels and rear cover to simplify access control.
