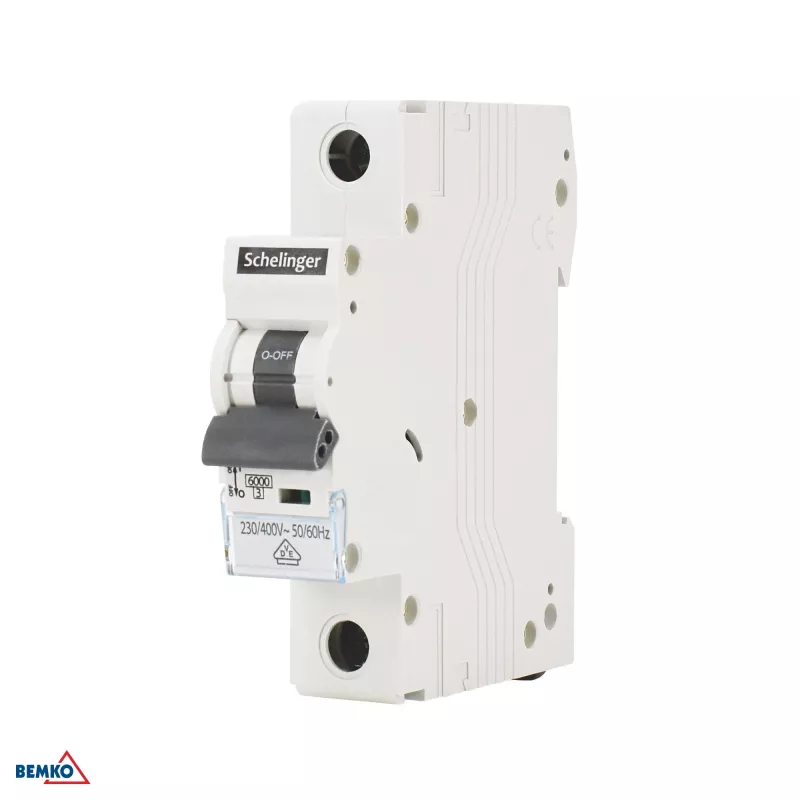

SCHELINGER 6kA 1P C50A istič, 230V AC, DIN lišta, VDE certifikát

With a short-circuit breaking capacity of 6 kA and a C-curve tripping characteristic, this SCHELINGER miniature circuit breaker delivers reliable protection for 50 A circuits. The single-pole design is optimized for 230 V AC systems, making it a solid choice for residential and commercial distribution boards.

Overview

The SCHELINGER A02-G8-1P-C50 is a 1-pole miniature circuit breaker (MCB) rated at 50 A with a C tripping curve. It interrupts fault currents up to 6 kA, safeguarding cables and equipment from overloads and short circuits. The device mounts on a standard 35 mm DIN rail and occupies just one module width (18 mm), saving space in enclosures.

What stands out

• High breaking capacity: 6 kA at 230 V AC
• Precise C-curve for mixed loads with moderate inrush currents
• Compact single-module design for dense installations
• VDE and CE certified for compliance with IEC/EN 60898-1
• Wide terminal range: accepts conductors from 1 to 25 mm²
• Clear ON/OFF position indicator for quick status checks

Technical details

• Number of poles: 1P
• Rated current: 50 A
• Tripping characteristic: C
• Rated voltage: 230 V AC
• Rated frequency: 50/60 Hz
• Short-circuit breaking capacity (Icn): 6 kA
• Energy limiting class: 3
• Mounting: DIN rail 35 mm
• Module width: 1 module (18 mm)
• Terminal capacity: 1–25 mm² (solid/stranded)
• Electrical endurance: ≥ 10,000 cycles
• Mechanical endurance: ≥ 20,000 cycles
• Protection degree: IP20 (terminals), IP40 (enclosure)
• Operating temperature: -25°C to +55°C
• Standards: IEC/EN 60898-1
• Certifications: VDE, CE

Our verdict

Built for dependable circuit protection, this SCHELINGER MCB combines robust 6 kA breaking capacity with a space-saving footprint. Its VDE certification and wide terminal range make it a practical choice for electricians and panel builders.
