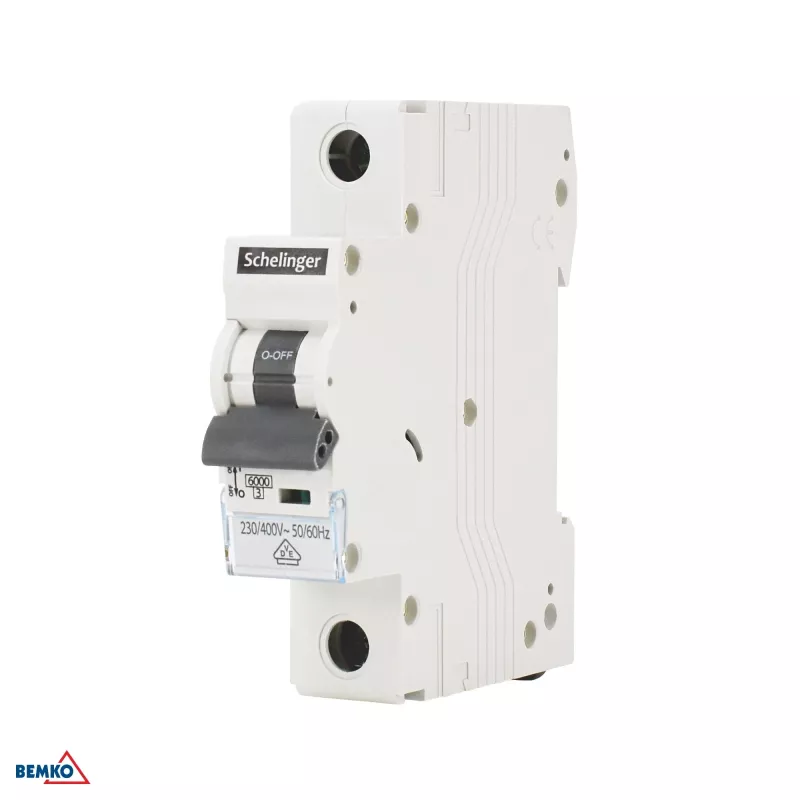

SCHELINGER A02-G8-1P-C10 10A jednopólový istič C-charakteristika 6kA

For installations where dependable overcurrent protection is non-negotiable, the SCHELINGER A02-G8-1P-C10 stands apart with its VDE-certified 6 kA breaking capacity and precise C-curve tripping, sized for 10 A circuits. This single-pole miniature circuit breaker interrupts both overloads and short circuits quickly, keeping wiring and connected equipment safe in residential and light commercial panels.

Highlights

• Rated current 10 A, 1-pole, C-curve for general load protection
• Short-circuit breaking capacity 6 kA at 230 V AC
• VDE and EN 60898-1 compliance for assured quality
• DIN rail mounting (EN 60715) for fast installation
• Clear ON/OFF position indicator for at-a-glance status

In daily use

The C-curve characteristic tolerates moderate inrush currents from motors, lighting banks, and small transformers without nuisance tripping, while still responding instantly to genuine faults. Screw terminals accept conductors from 1 to 25 mm², and the IP20 enclosure suits standard distribution boards. With an electrical endurance of 10,000 cycles and mechanical endurance of 20,000 cycles, this breaker is built for long service life.

Full specifications

• Product type: Miniature circuit breaker (MCB)
• Number of poles: 1P
• Rated current (In): 10 A
• Tripping characteristic: C
• Short-circuit breaking capacity (Icn): 6 kA
• Rated voltage (Ue): 230 V AC
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Standards: VDE, EN 60898-1
• Terminal type: Screw terminals
• Terminal capacity: 1–25 mm²
• Protection degree: IP20
• Energy limiting class: 3
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Ambient operating temperature: -25°C to +55°C
• Overload protection: Yes
• Short-circuit protection: Yes
• Indicator: ON/OFF position

Final note

Choose the SCHELINGER A02-G8-1P-C10 for a certified, high-breaking-capacity MCB that fits standard DIN rails and protects 10 A circuits with confidence.
