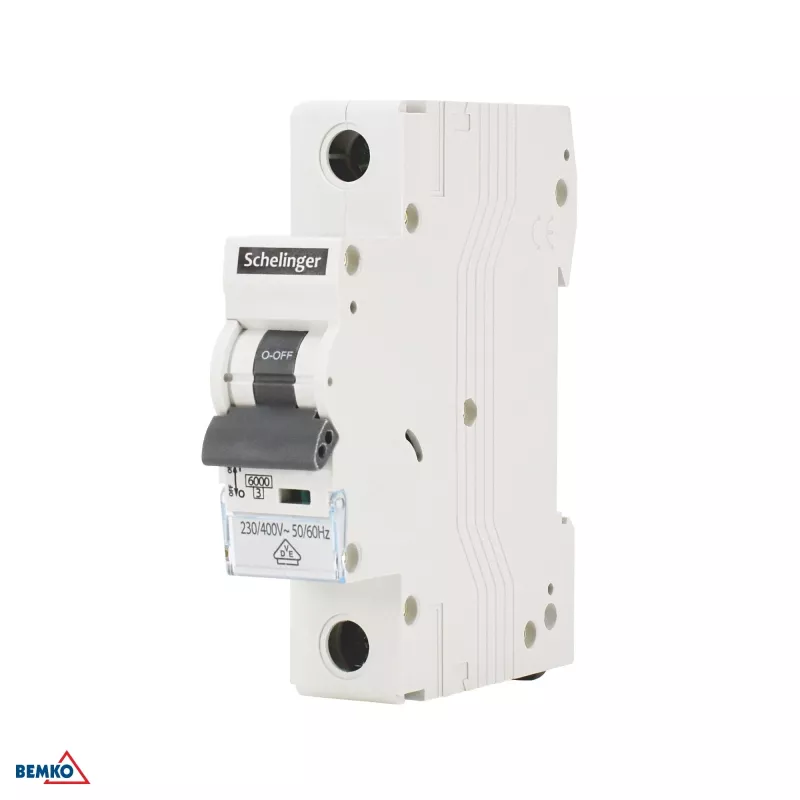

SCHELINGER A02-G8-1P-C40 6kA 1-pólový istič s charakteristikou C 40A VDE

Electrical overloads and short circuits can damage wiring, destroy equipment, and even cause fires. The SCHELINGER A02-G8-1P-C40 miniature circuit breaker (MCB) is a reliable, VDE-certified protective device that automatically disconnects the circuit when current exceeds safe levels, keeping your installation and devices safe.

Who is it for

This 1-pole MCB is ideal for electricians, panel builders, and DIY enthusiasts working on residential, commercial, or light industrial electrical installations. It protects single-phase circuits rated up to 40 A, such as those feeding powerful appliances, sub-distribution boards, or dedicated equipment lines.

Main features

• Rated current 40 A, C-curve trip characteristic
• Breaking capacity 6 kA (Icn) according to EN 60898-1
• 1-pole (1P) design, 1 module wide (18 mm)
• VDE certification ensures compliance with strict safety standards
• DIN rail mounting for easy installation in distribution boards
• Toggle switch with clear ON/OFF indication and trip-free mechanism

Specifications

• Brand: SCHELINGER
• Model: A02-G8-1P-C40
• MPN: A02-G8-1P-C40
• EAN: 5900280970824
• Type: Miniature circuit breaker (MCB)
• Number of poles: 1
• Rated current: 40 A
• Tripping characteristic: C
• Rated breaking capacity: 6 kA
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Standards: EN 60898-1, VDE certified
• Mounting: DIN rail (35 mm)
• Width: 1 module (18 mm)
• Operating temperature: -25°C to +55°C
• Storage temperature: -40°C to +70°C

Tips

Always select an MCB with a current rating appropriate for the circuit's expected load and cable cross-section. The C-curve is suitable for circuits with moderate inrush currents, such as motors and lighting. Ensure the breaker is installed by a qualified electrician and tested regularly.
