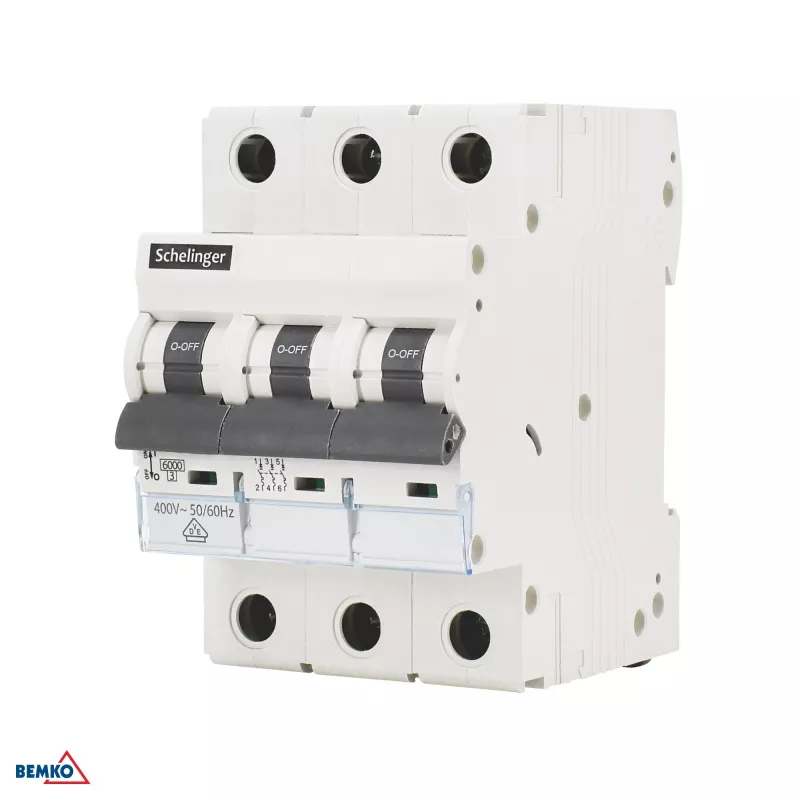

SCHELINGER A02-G8-3P-C63 Istiace zariadenie 6kA 3P C 63A VDE

The SCHELINGER A02-G8-3P-C63 is a high-quality miniature circuit breaker (MCB) designed for reliable overload and short-circuit protection in electrical installations. With a 3-pole configuration, rated current of 63A, and type C tripping curve, it is ideal for protecting circuits with moderate inrush currents, such as lighting and distribution boards. Compliant with VDE and IEC/EN 60898-1 standards, this MCB ensures safety and performance in residential, commercial, and industrial applications.

Advantages

• Robust 6kA short-circuit breaking capacity ensures protection against high fault currents.
• Type C tripping curve provides optimal balance between overload protection and immunity to transient surges.
• Clear ON/OFF/TRIP position indicator for easy status monitoring.
• Compact DIN rail mounting simplifies installation in standard distribution panels.
• Screw terminals accommodate conductors up to 35 mm² for flexible wiring.

Suitable for

• Overload and short-circuit protection in electrical circuits
• Lighting, heating, and general power distribution
• Commercial and industrial control panels
• Residential consumer units

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3-Pole (3P)
• Rated Current (In): 63 A
• Tripping Curve: Type C
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 400 V AC
• Rated Frequency: 50/60 Hz
• Standard Compliance: VDE, IEC/EN 60898-1
• Mounting Type: DIN Rail (35mm)
• Terminal Type: Screw Terminals
• Terminal Capacity: 1 to 35 mm² (flexible/rigid conductor)
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Protection Degree: IP20
• Energy Limiting Class: 3
• Operating Temperature Range: -25°C to +55°C
• Application: Overload and short-circuit protection
• Indicator: ON/OFF/TRIP position indicator

Recommendations

For optimal performance, ensure the MCB is installed by a qualified electrician and used within its rated parameters. Pair with appropriate enclosures and accessories for a complete distribution solution.
