SCHELINGER Istiace zariadenie 6kA 3P C 25A VDE

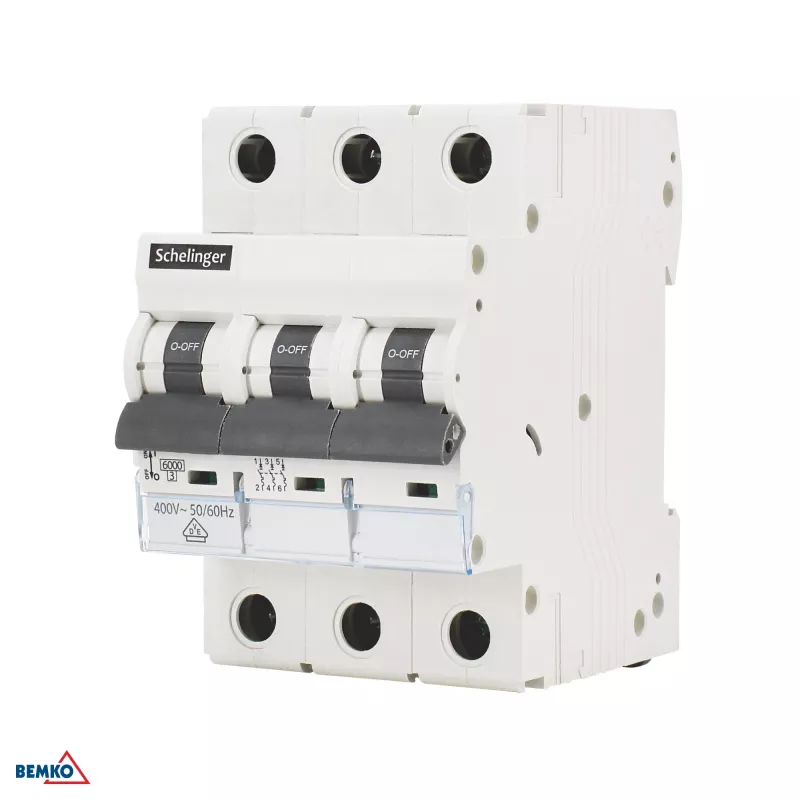

The SCHELINGER A02-G8-3P-C25 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a 6kA short-circuit breaking capacity and C-curve tripping characteristic, it ensures safe operation for a wide range of applications. Compliant with EN 60898-1 and VDE standards, this 3-pole breaker is ideal for commercial and industrial use.

Advantages

Robust construction with 10,000 electrical and 20,000 mechanical cycles ensures long service life. Energy limiting class 3 provides excellent fault current limitation. Easy DIN rail mounting and screw terminals accommodate solid conductors up to 25 mm² and flexible up to 16 mm².

Suitable for

• Overcurrent protection in distribution boards
• Lighting, socket outlets, and general loads
• Commercial buildings, industrial plants, and residential installations

Key specifications

• Brand: SCHELINGER
• Model: A02-G8-3P-C25
• Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P
• Rated Current (In): 25 A
• Tripping Curve: C
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 400 V AC
• Rated Frequency: 50/60 Hz
• Standard Compliance: EN 60898-1, VDE
• Mounting: DIN Rail (35 mm)
• Terminal Capacity (Solid): 1-25 mm²
• Terminal Capacity (Flexible): 1-16 mm²
• Energy Limiting Class: 3
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Protection Degree: IP20
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -40°C to +70°C
• Module Width: 3 modules (52.5 mm)

Recommendations

For optimal protection, pair with appropriate residual current devices (RCDs) and ensure correct sizing according to load and cable cross-section. Always follow local electrical regulations.
