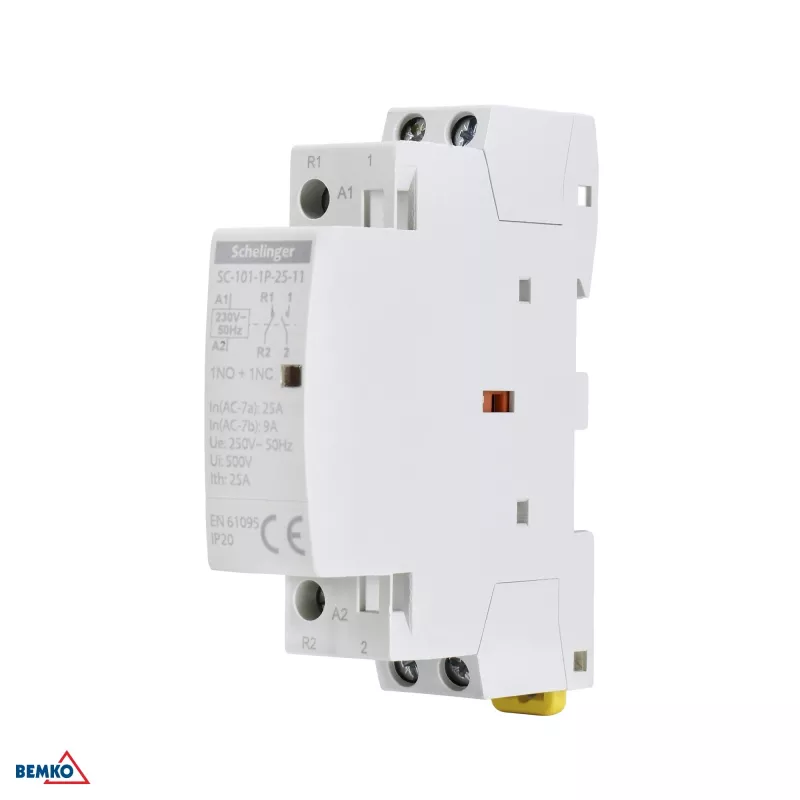

SCHELINGER SC101 Modulárny stykač 1P 25A 1NO+1NC 230V AC

The SCHELINGER SC101 modular contactor is a high-quality switching device designed for reliable control of electrical circuits in residential and commercial installations. With a single pole configuration and a rated current of 25A, it is ideal for lighting, heating, and motor control applications. The contactor features one normally open (NO) and one normally closed (NC) auxiliary contact, providing flexibility for control circuits.

Advantages

Compact 1-module (18mm) design saves space on DIN rail. Robust construction ensures long electrical and mechanical life. Easy installation with screw terminals accepting 1-10 mm² conductors. Compliant with IEC/EN 61095 standards for safety and performance.

Suitable for

• Lighting control in commercial buildings
• Heating and ventilation systems
• Motor control for pumps and fans
• Automation and control panels

Key specifications

• Rated current (AC-1): 25 A
• Control voltage: 230 V AC
• Number of poles: 1P (single pole)
• Auxiliary contacts: 1 NO + 1 NC
• Mounting: DIN rail
• Module width: 1 module (18 mm)
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 4 kV
• Electrical life: 100,000 cycles
• Mechanical life: 1,000,000 cycles
• Degree of protection: IP20
• Operating temperature: -5°C to +40°C

Recommendations

For optimal performance, use with appropriate overcurrent protection. Ensure control voltage matches the coil rating (230 V AC). Suitable for use in distribution boards and control cabinets.
