SFP transceiver BlueOptics GLC-LH-SM-RGD-BO 1250 Mbit/s optický

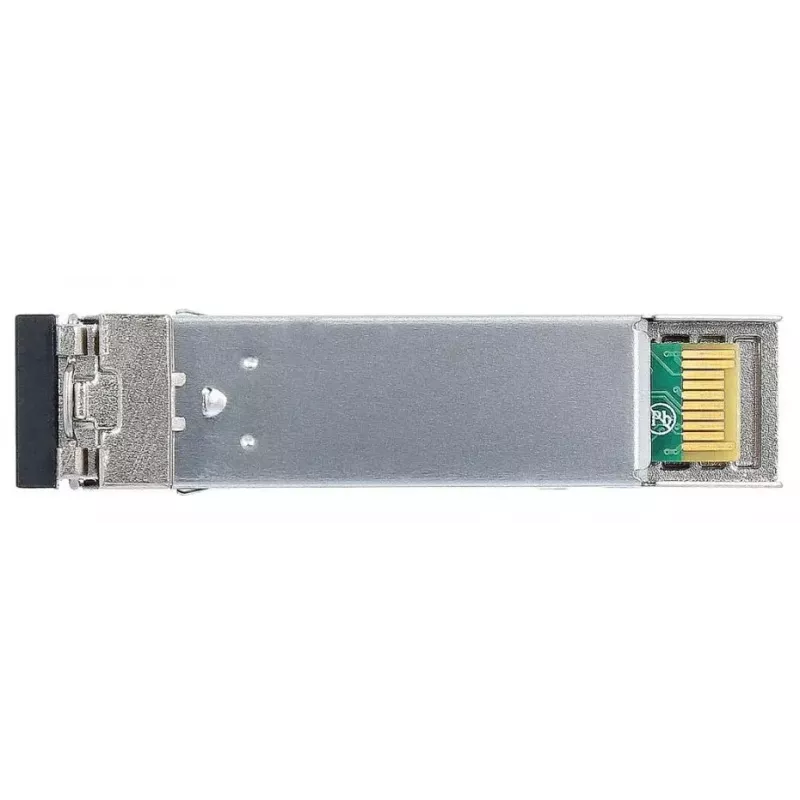

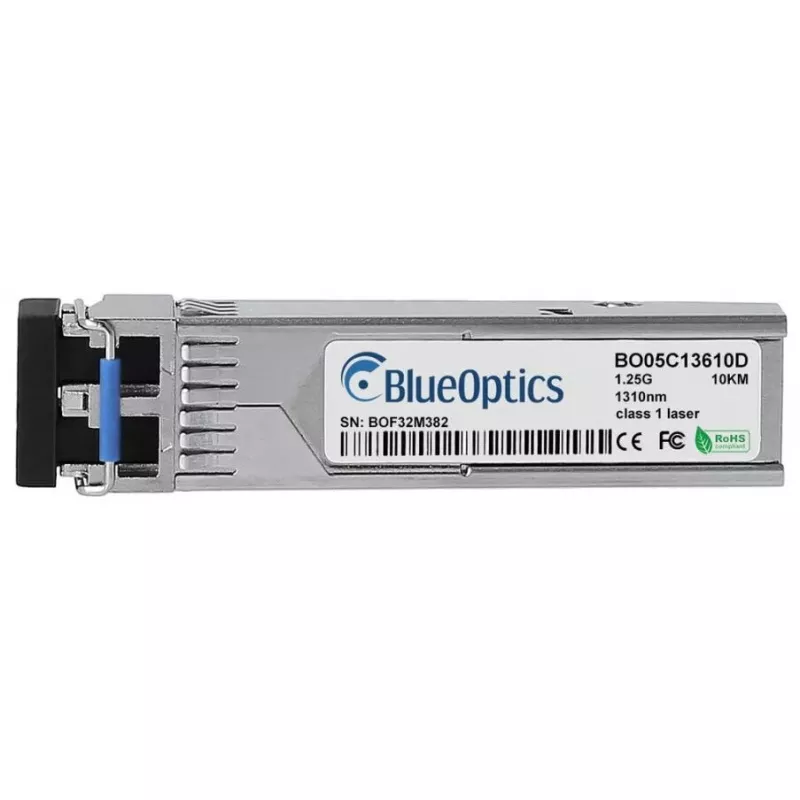

The BlueOptics GLC-LH-SM-RGD-BO is a single-mode fiber optic SFP transceiver module designed for 1000BASE-LX applications. It supports a maximum data transfer rate of 1250 Mbit/s, features a metal (silver) housing and weighs approximately 20 g. The module follows MSA SFP form‑factor conventions and is suitable for deployment in network equipment that accepts SFP transceivers with LC duplex fiber connectors and 1310 nm optical transmit/receive wavelengths.

Advantages

The transceiver offers a compact SFP interface with single-mode fiber support and a typical maximum link reach consistent with 1000BASE-LX operation. Its metal housing provides mechanical robustness and thermal stability while the relatively low weight supports dense, modular installations. The module is built to industry MSA standards and is specified with a high mean time between failures (MTBF) to support continuous operation in production networks.

Suitable for

Key specifications

How to use

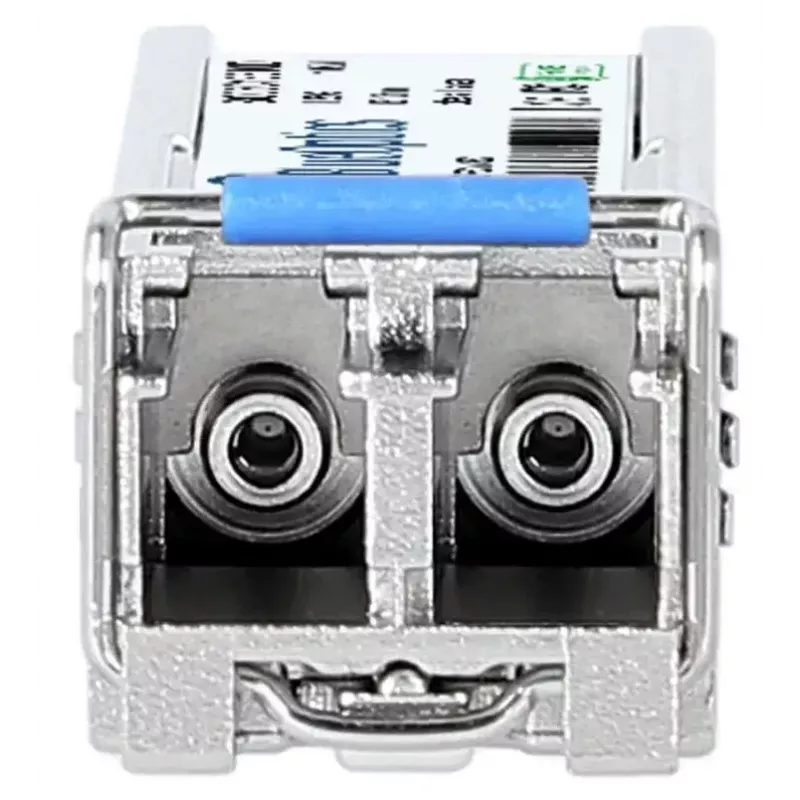

Insert the SFP transceiver into a compatible SFP slot on the network device until it latches; connect LC duplex single-mode fiber patch cords to the transmit and receive ports using the appropriate polarity. Ensure the host hardware supports 1000BASE-LX SFP modules and, if required, enable or verify digital diagnostic monitoring (DDM/DOM) support in the device software to access real‑time module parameters. Confirm link status and configuration on both ends of the fiber link and follow standard fiber‑handling procedures to avoid contamination of connectors.

Recommendations

Use single-mode fiber with correct LC duplex patch cords and maintain clean connectors to achieve the specified link performance. Verify device compatibility with the host platform and check whether DDM/DOM monitoring is supported if remote diagnostics are required. Follow manufacturer guidelines for insertion/removal and ESD protection when handling the module.
