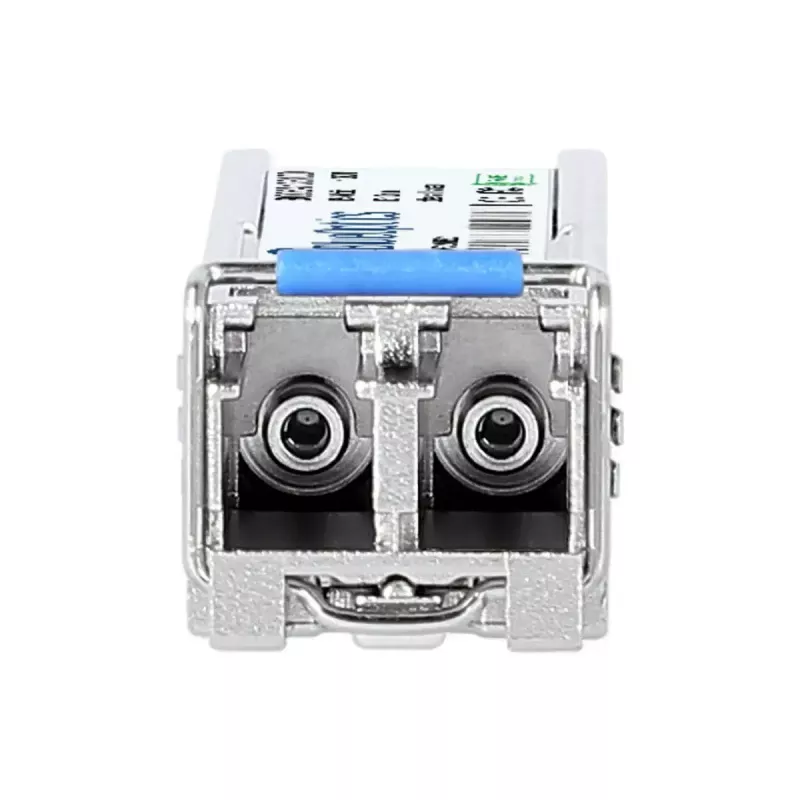

SFP transceiver BlueOptics SFP-1FE-LX-BO 155 Mbit/s 1310 nm

The BlueOptics SFP-1FE-LX-BO is a compact SFP fiber optic transceiver module designed for single-mode links with a nominal data rate of up to 155 Mbit/s. Operating at a wavelength of 1310 nm and housed in a durable metal case, this module uses an LC duplex connector and an SFP form factor for easy hot-swap installation. It is compatible with equipment that supports 100BASE-LX / LX-style optical transceivers and is intended for point-to-point fiber connections over distances up to approximately 10 kilometres when used with appropriate single-mode fiber.

Advantages

The transceiver provides stable optical transmission at 1310 nm with a small 3.3 V power requirement and a lightweight metal housing for mechanical robustness. Compliance with MSA SFP form-factor and LC duplex interface ensures broad interoperability with network switches, routers and storage devices that accept 100BASE-LX type SFPs. Built from quality optical and electronic components, the module supports long-term operation and predictable performance in standard networking environments.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-1FE-LX-BO into an SFP slot on the network device while the system is powered on or according to the device vendor's hot-swap guidance. Connect the LC duplex single-mode patch cable with correct polarity to the module. Ensure the host device recognises the SFP and that any required firmware or software settings (such as speed and duplex or DDM support) are configured according to the equipment manufacturer. Verify link status and signal levels after insertion.

Recommendations

Use single-mode fiber and LC duplex patch cords rated for 1310 nm and keep fiber connectors clean to maintain signal quality. Confirm compatibility with the target hardware and, if needed, test the module in a spare slot before deploying in production. If digital diagnostic monitoring (DDM/DOM) is required, ensure the host device supports this function to monitor supply voltage, laser bias current, output power, input power and temperature.
