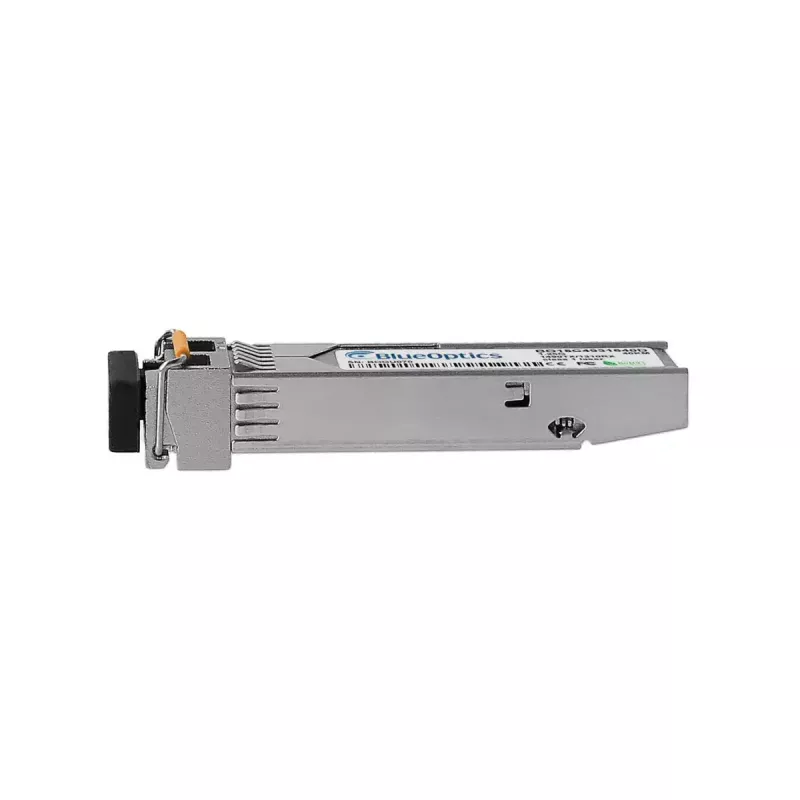

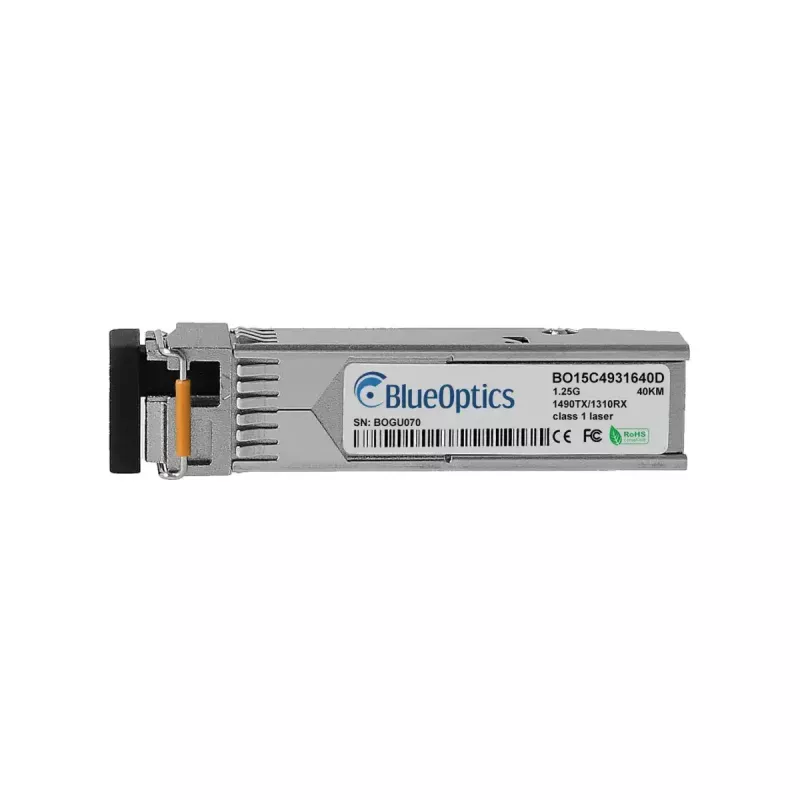

SFP transceiver modul BlueOptics 100-01663-BX-4955-BO 1250 Mbit/s optické vlákno

The BlueOptics 100-01663-BX-4955-BO is an SFP transceiver module designed for fiber optic networks. It supports a maximum data transfer rate of 1250 Mbit/s and uses the compact SFP form factor for straightforward insertion into compatible network equipment. The module comes in a silver housing and is engineered for continuous operation with an MTBF of 1,000,000 hours. Compliance with CE, FCC and RoHS standards ensures it meets common regulatory and safety requirements for network hardware.

Advantages

This SFP transceiver offers a compact design that is compatible with a wide range of switches and routers supporting SFP ports. Its specified maximum data rate of 1250 Mbit/s makes it suitable for typical fiber link tasks, and the high MTBF indicates long operational life under normal conditions. Built to comply with CE, FCC and RoHS, the unit meets industry regulatory criteria for electromagnetic compatibility and restricted hazardous substances.

Suitable for

• Connecting fiber optic links between switches and routers with SFP ports
• Short- to medium-distance fiber connections in enterprise and data center environments
• Replacing or upgrading existing SFP transceivers in compatible hardware

Key specifications

• Interface type: SFP
• Maximum data transfer rate: 1250 Mbit/s
• Form factor: SFP compact transceiver
• Product colour: Silver
• Weight: 0.02 kg
• Operational reliability: MTBF 1,000,000 hours
• Standards compliance: CE, FCC, RoHS

How to use

Install the module by inserting it into a compatible SFP slot on your network device until it seats firmly and the latch engages. Ensure compatible fiber patch cables and connectors are used and that transmit/receive pairs are correctly aligned. Power on the connected equipment and verify link status through the host device interface or LEDs. If needed, consult the equipment manual for any software configuration required to enable the port or to set link parameters.

Recommendations

Handle the transceiver by its housing and avoid touching the optical interfaces; always use protective dust caps when the module is not connected. Verify compatibility with the host device and use appropriate fiber cable types for your link distance and performance needs. Observe ESD precautions during installation and follow manufacturer guidelines for temperature and humidity ranges to ensure reliable operation.
