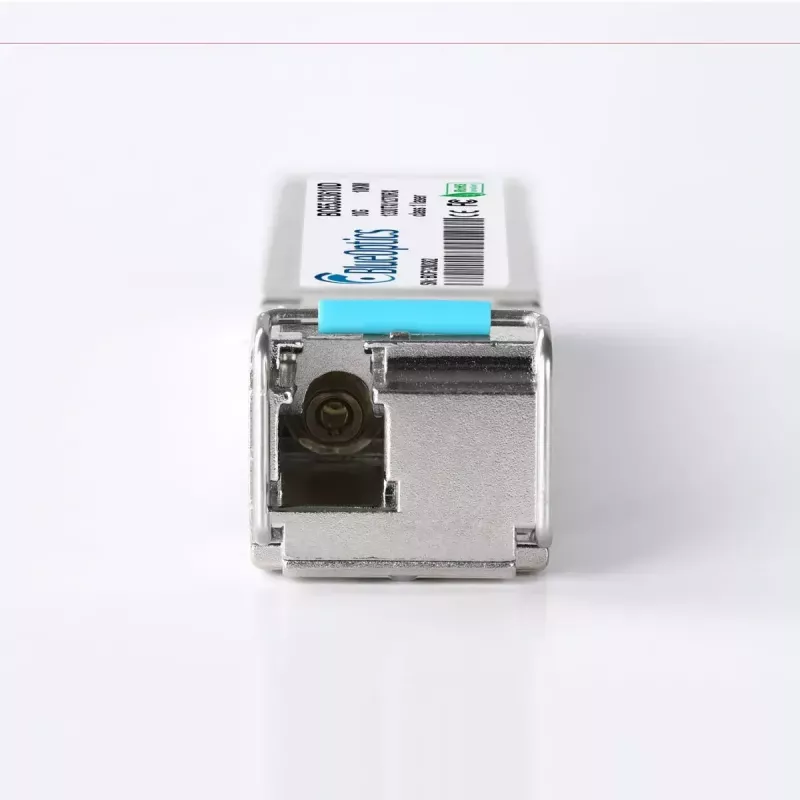

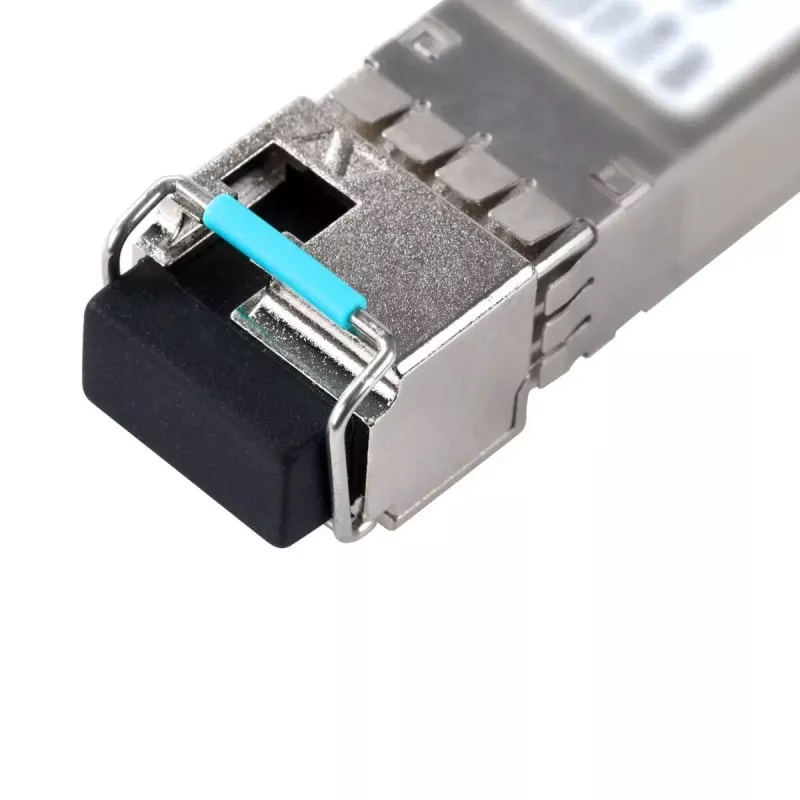

SFP transceiver modul BlueOptics SFP-10G-BX10-D-CM-BO 10000 Mbit/s SFP+

The BlueOptics SFP-10G-BX10-D-CM-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s connections over single-mode fiber. Housed in a metal enclosure and weighing approximately 20 g, the module operates at 3.3 V and uses an LC simplex interface to transmit and receive optical signals. It supports 10GBASE-BX-D single-fiber bidirectional operation with separate wavelengths for transmit and receive, enabling high-speed links up to the module's specification.

Advantages

This SFP+ transceiver offers compatibility with MSA-compliant SFP+ ports and provides a compact metal design for reliable insertion and thermal stability. With a maximum data transfer rate of 10000 Mbit/s and SFP+ interface type, the module is suitable for dense networking environments where space and performance are important. The silver-coloured housing and lightweight construction simplify handling and installation in switches, routers and other 10 Gbit/s-capable equipment.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-10G-BX10-D-CM-BO by inserting the module into a compatible SFP+ port until it latches. Connect the LC simplex fiber patch cable, ensuring correct orientation for the module's transmit and receive wavelengths when creating a bidirectional link. Verify link status on the host device and confirm that the port is configured for 10 Gbit/s operation. If available, enable Digital Diagnostic Monitoring (DDM/DOM) on the host to monitor operating parameters such as supply voltage, optical power and temperature.

Recommendations

Use single-mode LC simplex patch cords that match the module's wavelength plan and follow EIA/TIA and MSA guidelines for fiber termination and cleaning. Confirm host compatibility with SFP+ transceivers and, when possible, test the module in the target hardware before large-scale deployment.
