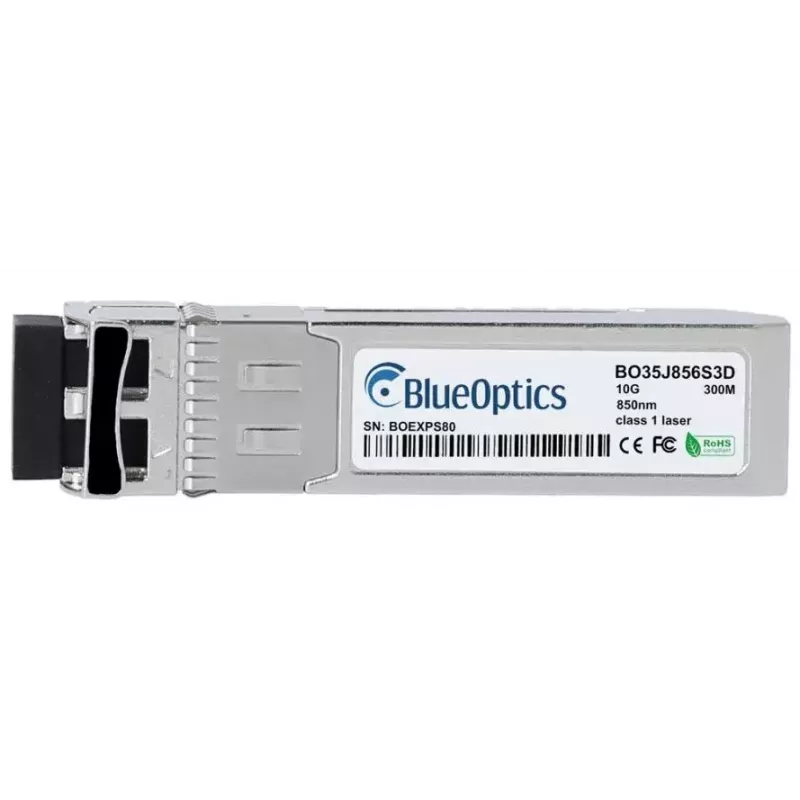

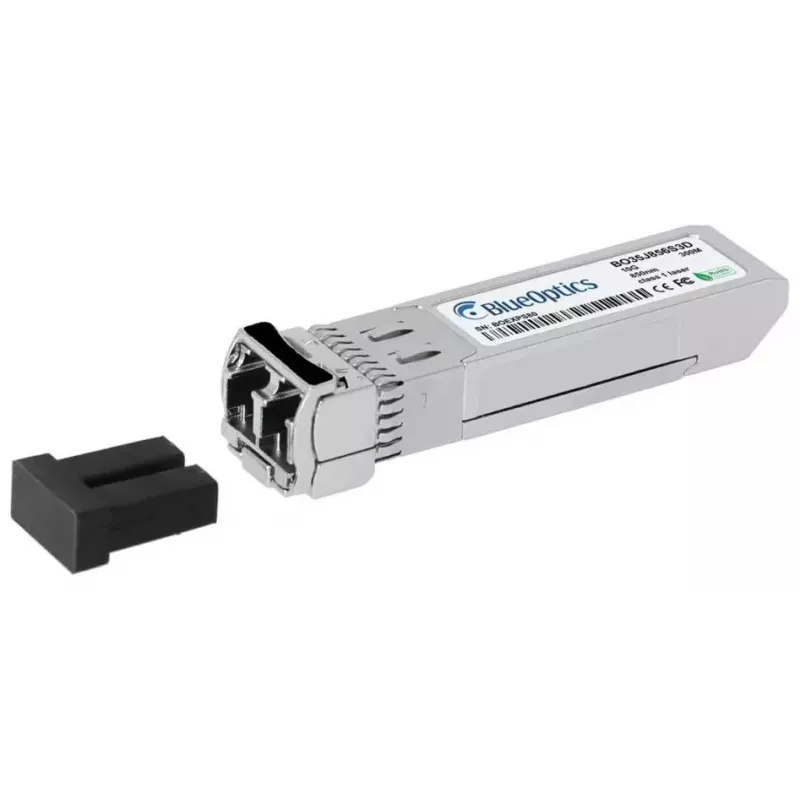

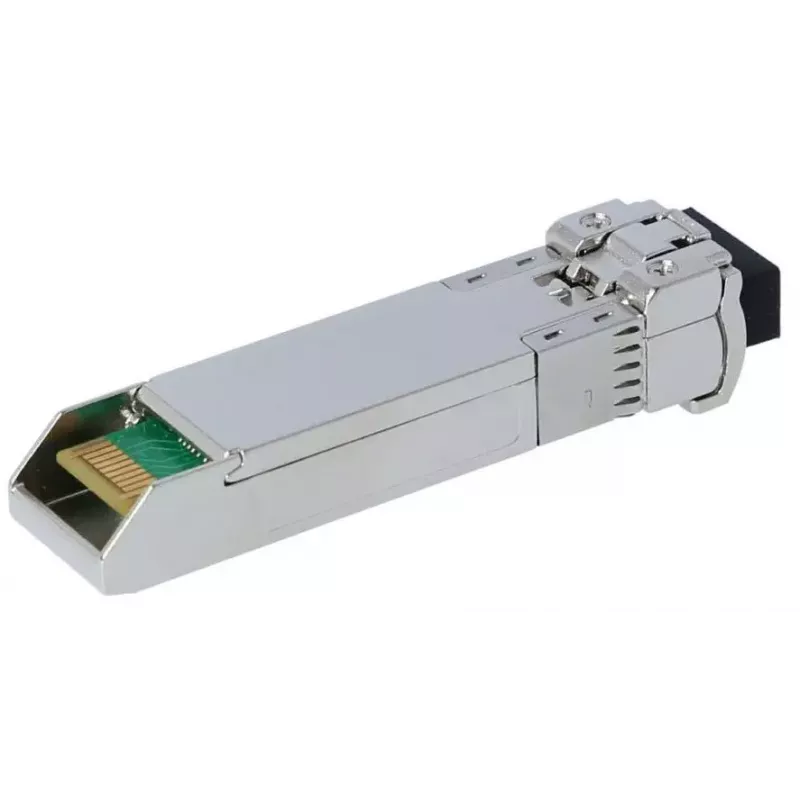

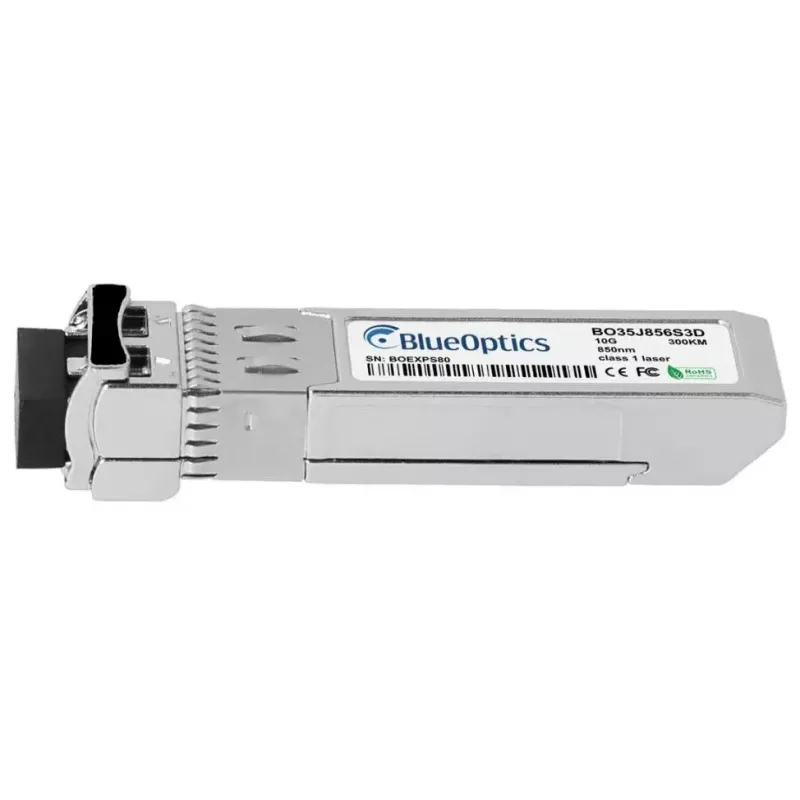

SFP transceiver modul BlueOptics SFP-10G-SR-X-BO 10000 Mbit/s 850 nm

The BlueOptics SFP-10G-SR-X-BO is a 10GBASE-SR SFP+ fiber optic transceiver module designed for high-speed multimode fiber links. Supporting a maximum data transfer rate of 10000 Mbit/s and operating at an 850 nm wavelength, the module is housed in a compact metal case with a lightweight design of approximately 3 g. It uses an LC duplex connector and an SFP+ interface, requires a 3.3 V input and is intended for deployment in switches, routers, storage systems and other compatible network hardware that accepts SFP+ modules.

Advantages

The module complies with MSA standards and is compatible with systems that support the original 10GBASE-SR SFP+ form factor. Its metal housing provides mechanical durability while the multimode 850 nm optical transceiver supports simultaneous transmit and receive channels via LC duplex connections. The compact SFP+ format and low weight make it suitable for dense switch and server installations, and the module includes support for digital diagnostics monitoring (DDM/DOM) when the host device provides that functionality.

Suitable for

Key specifications

How to use

Install the SFP-10G-SR-X-BO into an SFP+ slot on a compatible switch, router or server following the host equipment manufacturer's insertion procedure. Connect LC duplex multimode fiber patch cords to the module's LC ports, ensuring correct transmit/receive orientation. Ensure the host device is configured to recognize third-party SFP+ modules if required and that the device firmware supports the module's DDM/DOM features to access real-time diagnostic data. Power the host equipment with the specified supply and verify link status in the network management interface.

Recommendations

Use OM3/OM4 multimode fiber for optimal reach at 10G speeds and employ high-quality LC duplex patch cords and proper fiber management (patch panels, strain relief, and bend-radius compliance). Verify host compatibility and enable DDM/DOM in devices that support it to monitor supply voltage, laser bias current, transmit power, receive power and temperature for preventive maintenance.
