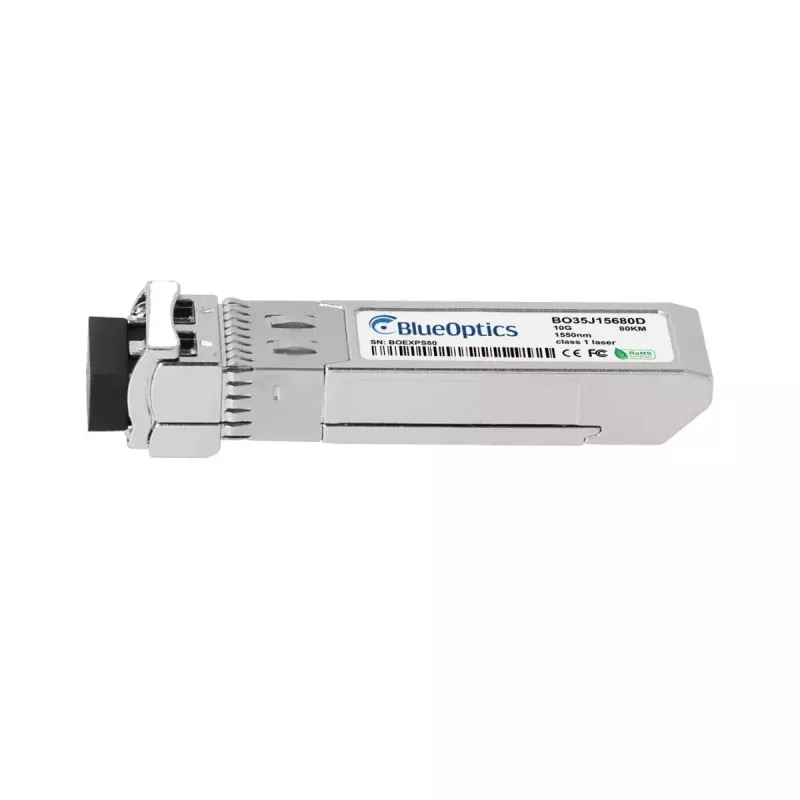

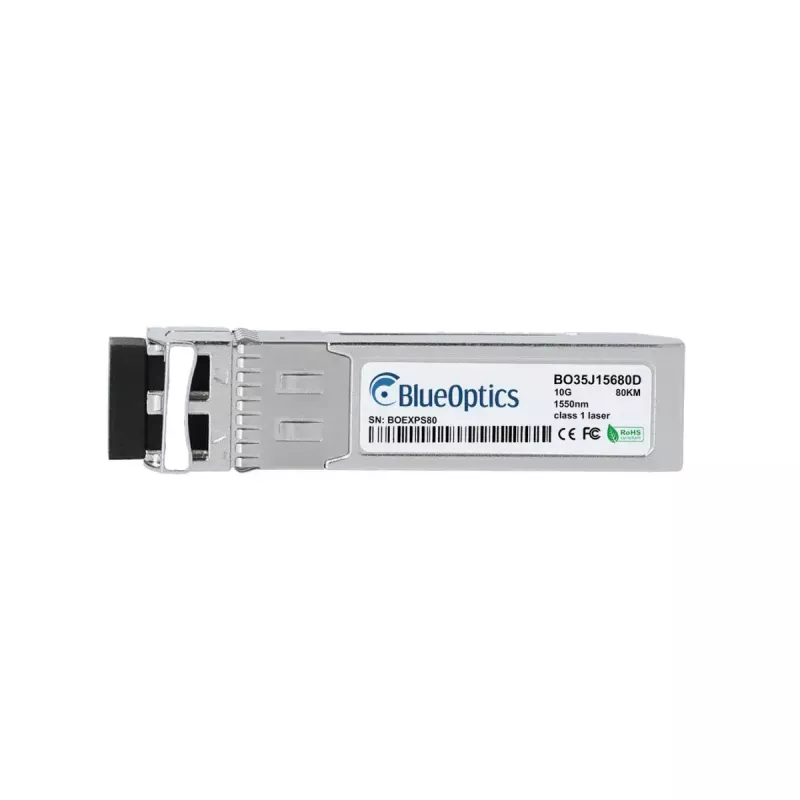

SFP transceiver modul BlueOptics SFP-10G-ZRW-BO 10000 Mbit/s 1550 nm

The BlueOptics SFP-10G-ZRW-BO is a compact SFP+ fiber transceiver module for single-mode fiber links, supporting data rates up to 10,000 Mbit/s. It operates at a wavelength of 1550 nm, is housed in a durable metal enclosure and requires a 3.3 V supply. The module is lightweight (approximately 3 g) and uses an LC duplex optical interface compatible with MSA SFP+ form factor devices.

Advantages

This SFP+ transceiver delivers 10G data throughput over long-reach single-mode fiber and includes a robust metal housing for mechanical stability and heat dissipation. The module’s compact SFP+ form factor and low weight make it suitable for dense switch and router ports. It follows MSA compatibility guidelines, enabling use in a wide range of network hardware that supports SFP+ optics.

Suitable for

• 10G Ethernet links over single-mode fiber
• Long-reach optical connections requiring 1550 nm wavelength
• High-density switch and router SFP+ ports
• Data center uplinks and inter-switch links

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Operating wavelength: 1550 nm
• Connector: LC duplex (optical)
• Housing material: metal
• Supply voltage: 3.3 V
• Weight: 0.003 kg
• Color: silver

How to use

Install the BlueOptics SFP-10G-ZRW-BO into an SFP+ compatible slot on your switch, router or storage device while the host is powered off or following the vendor’s hot-plug instructions. Connect an appropriate single-mode LC duplex patch cable between transceivers or to a patch panel. Ensure the host device firmware and driver support SFP+ optics and confirm the link parameters on both ends (speed, duplex and fiber type). Observe standard ESD precautions and avoid excessive bending of fiber cables.

Recommendations

For reliable long-distance operation use single-mode fiber rated for 1550 nm and high-quality LC duplex patch cords. Verify DDM/DOM support if remote diagnostic monitoring is required and confirm compatibility with the specific network hardware firmware. Store and handle the module in a dry, static-free environment.
