SFP transceiver modul BlueOptics SFP-GIG-BB LX/LC EEC-BO optický 20000 m

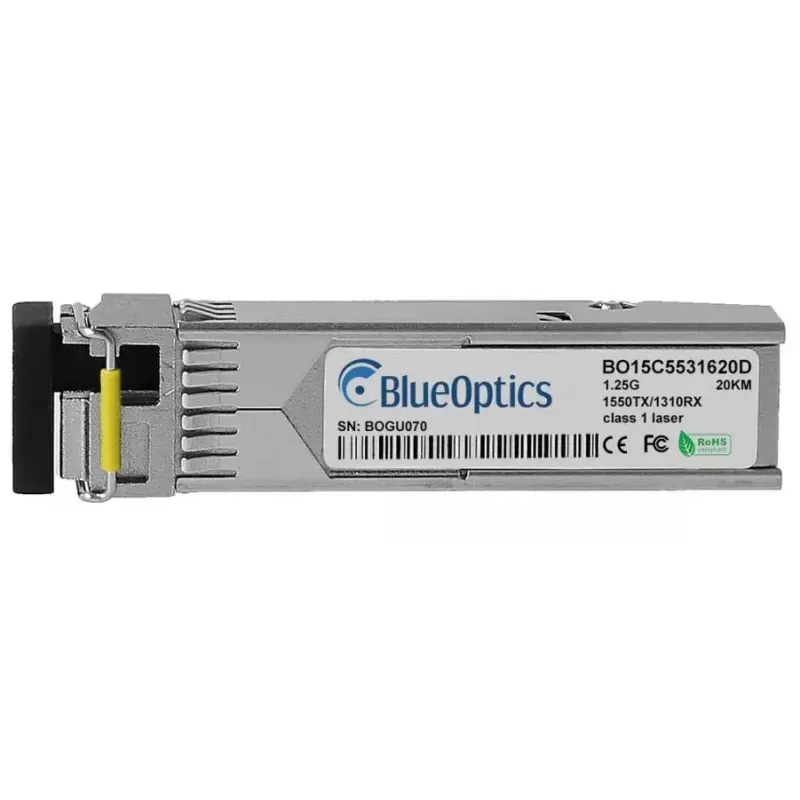

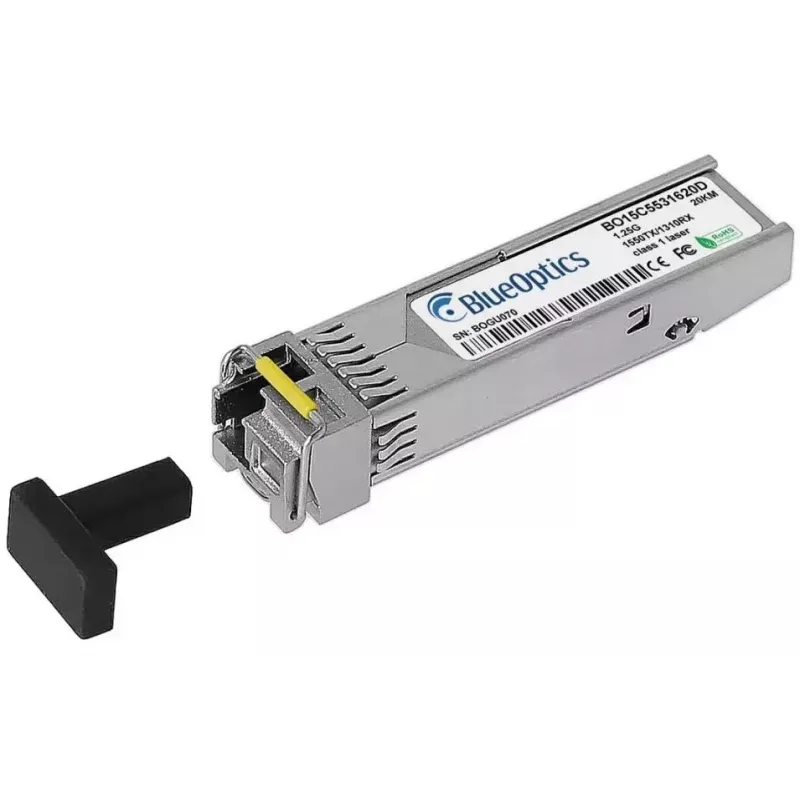

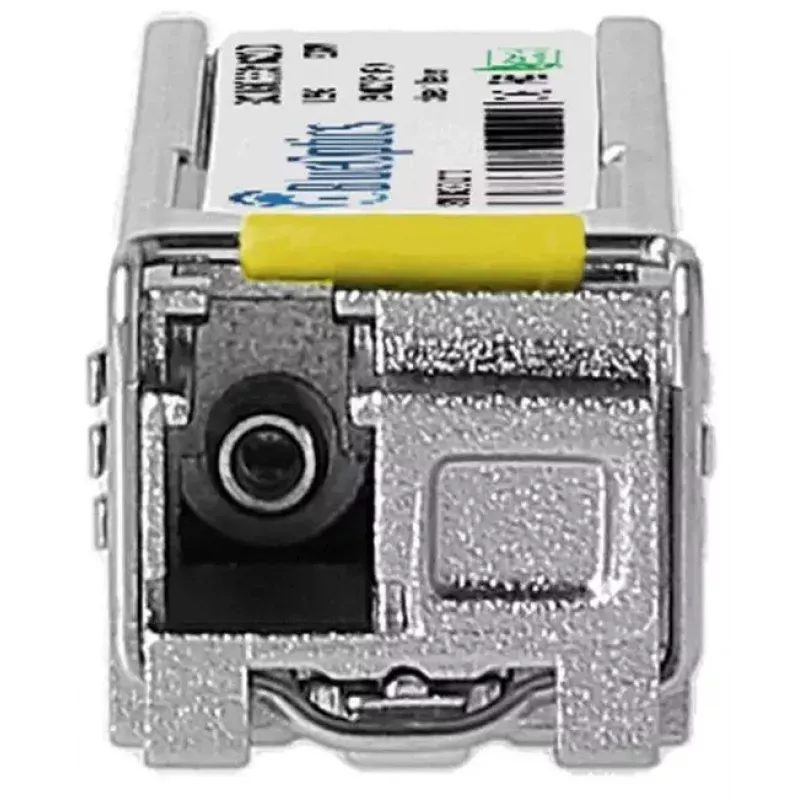

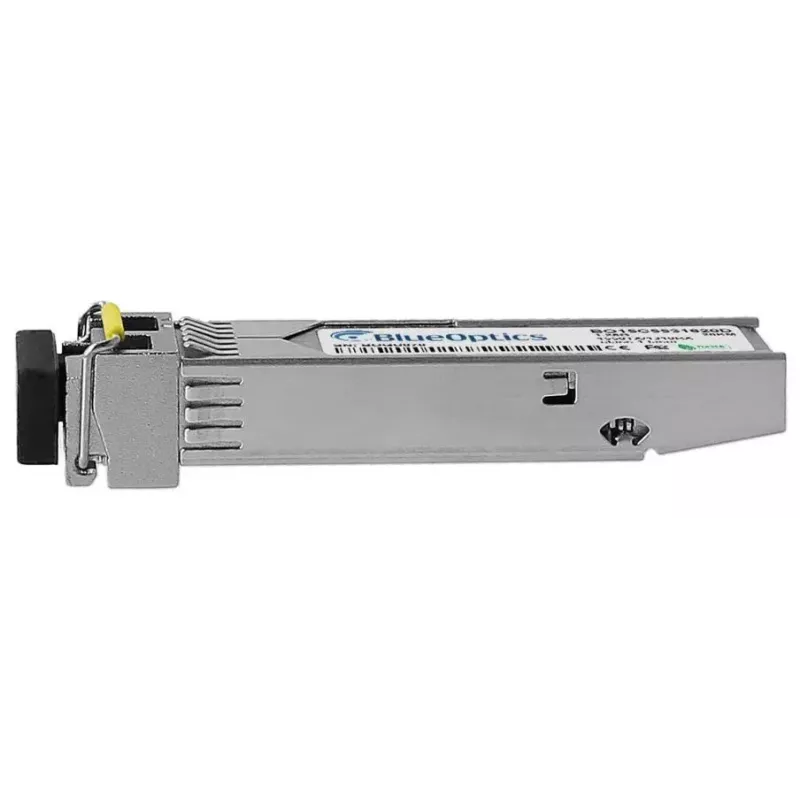

The BlueOptics SFP-GIG-BB LX/LC EEC-BO is a single‑mode fiber optic SFP transceiver module designed for 1.25 Gbps Ethernet and related high‑speed applications. It uses an LC simplex interface and supports long‑reach links up to 20,000 m over single‑mode fiber. The compact, lightweight design (approximately 20 g) and standard SFP form factor make it suitable for installation in switches, routers and other network devices that accept MSA‑compliant SFP modules.

Advantages

This transceiver implements separate transmitter and receiver wavelengths (1310 nm TX / 1550 nm RX) for single‑fiber bidirectional operation and complies with MSA standards for SFP modules. It offers digital diagnostic monitoring (DDM/DOM) support for real‑time monitoring of supply voltage, laser bias current, optical output and input power, and temperature where the host supports these features. Constructed from quality components, the module is intended for stable long‑term operation and long transmission distances while remaining compatible with a wide range of network hardware.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP module into a compatible SFP slot on the host device while the device is powered according to the equipment vendor's instructions. Connect an appropriate single‑mode LC patch cable to the module and the remote transceiver. Configure the link speed and any required interface settings on the host device if not negotiated automatically. If DDM/DOM monitoring is required, verify that the host platform supports and enables SFP diagnostics to read real‑time values for voltage, temperature and optical power.

Recommendations

For optimal performance, use single‑mode fiber and LC patch cords of appropriate quality, ensure proper end‑face cleaning before mating, and follow the network equipment vendor’s guidelines for SFP compatibility. Verify optical power budgets and link budgets for 20 km links and enable digital diagnostics on supported platforms to assist with maintenance and troubleshooting.
