Sieťový kábel BlueOptics MFA1A00-C001-TG-BO QSFP28 InfiniBand 1m tyrkysový

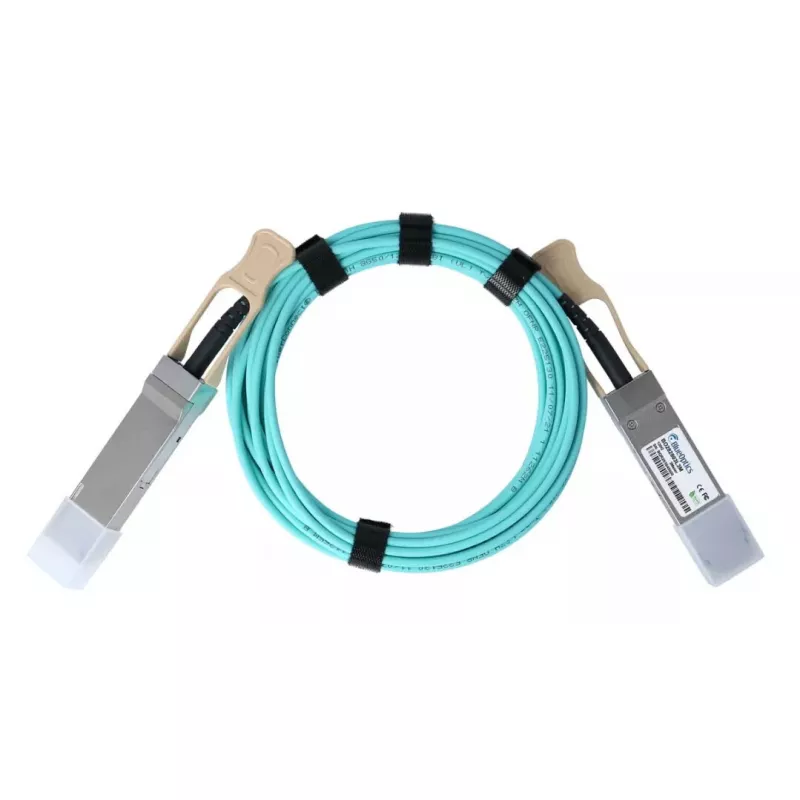

The BlueOptics MFA1A00-C001-TG-BO QSFP28 InfiniBand 1m Turquoise is a 1‑meter active optical cable (AOC) with QSFP28 connectors on both ends designed for 100GBASE‑SR4 short‑range optical links. The turquoise cable provides bidirectional transmit and receive optical channels and follows MSA‑compatible QSFP28 specifications for use in high‑density networking equipment. Its compact, lightweight construction supports straightforward routing inside racks and between adjacent racks while maintaining the optical performance required for data centers and high‑performance computing environments.

Advantages

This QSFP28 AOC supports 100 Gbps aggregated data rates over multimode fiber and is built to MSA‑compliant mechanical and electrical interfaces for broad interoperability. The cable integrates high‑quality optical and electronic components chosen to increase service life and stability, and it includes Digital Diagnostics Monitoring (DDM/DOM) to report operating parameters such as supply voltage, temperature, laser bias and optical power when supported by the host hardware. Being an active optical design, the cable is insensitive to electromagnetic interference and enables low‑latency, high‑bandwidth connectivity with reduced weight and simplified cable management compared with equivalent copper options.

Suitable for

Key specifications

How to use

Install the cable by inserting each QSFP28 connector into compatible QSFP28 ports on the devices to be linked, ensuring the latch engages and that ports support 100GBASE‑SR4 operation. Verify that host devices support active optical cables and, if needed, enable or verify DDM/DOM monitoring on the host to read diagnostic values. Route the cable to avoid sharp bends and mechanical strain; maintain the manufacturer’s minimum bend radius and secure the cable to avoid tension on connectors. No additional configuration is typically required beyond port and network settings on connected equipment.

Recommendations

Use the cable for short‑reach connections within data center racks or between neighboring racks. Confirm compatibility with your hardware vendor’s QSFP28 AOC policy and verify DDM/DOM support if real‑time diagnostics are required. Avoid excessive bending, pulling, or exposure to contaminants to preserve optical performance and service life.
