Sklenené vlákno transceiver modul BlueOptics AOM-MMA1B00-C100D-MLN-BO QSFP28 100m

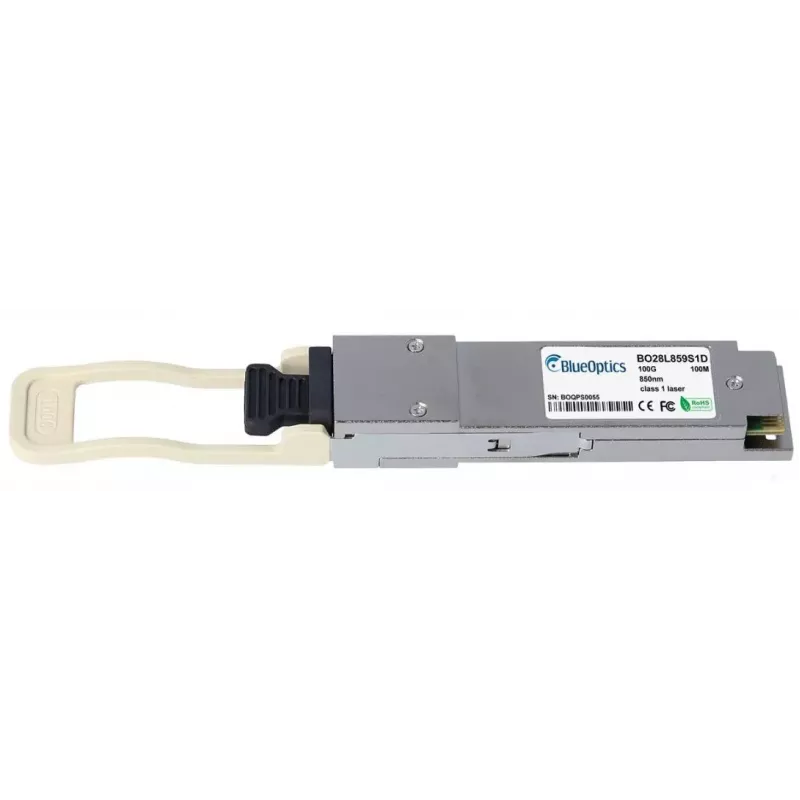

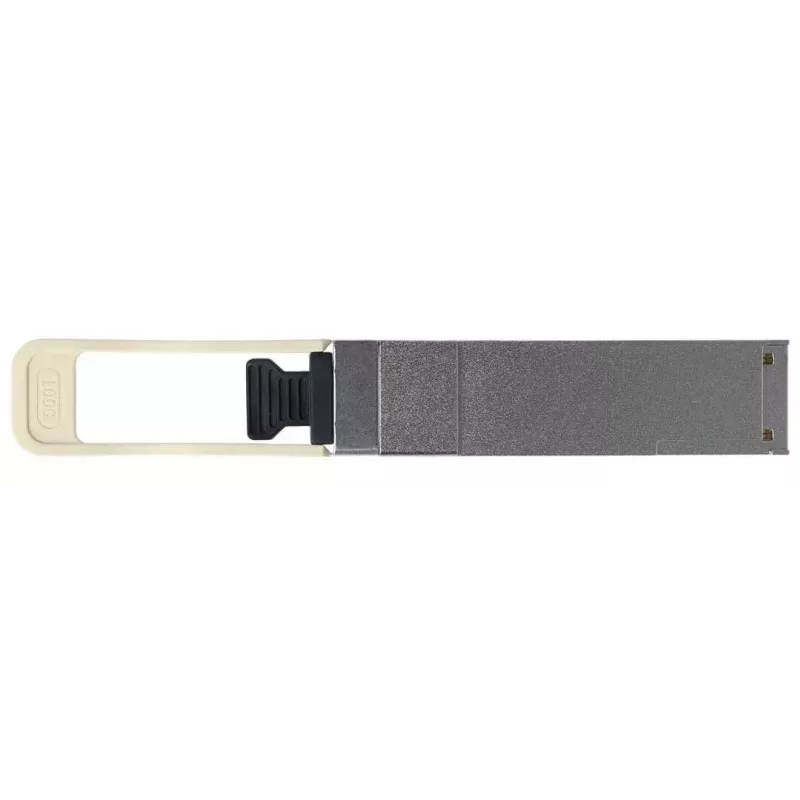

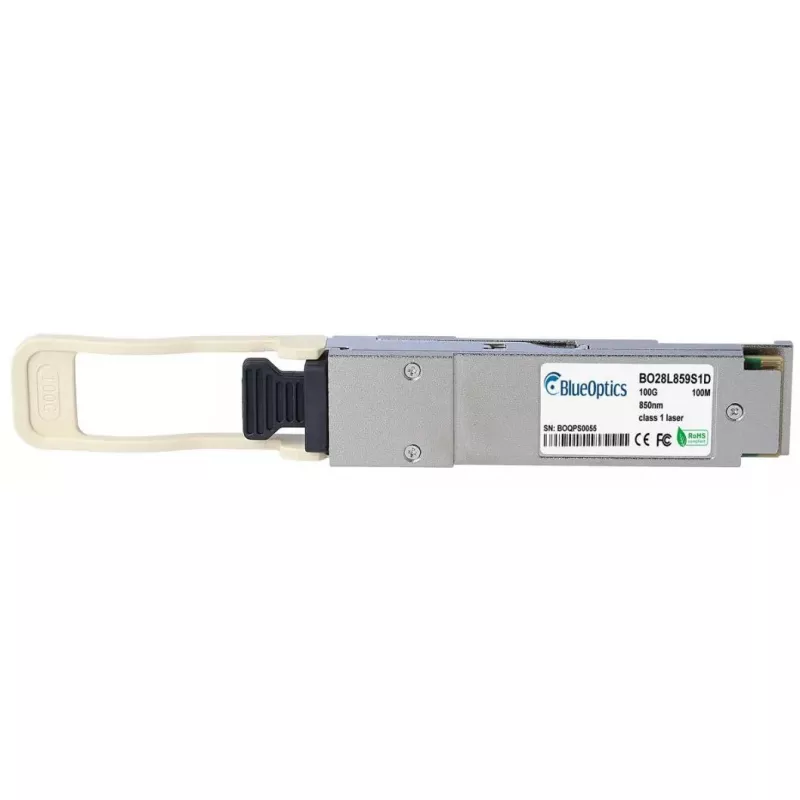

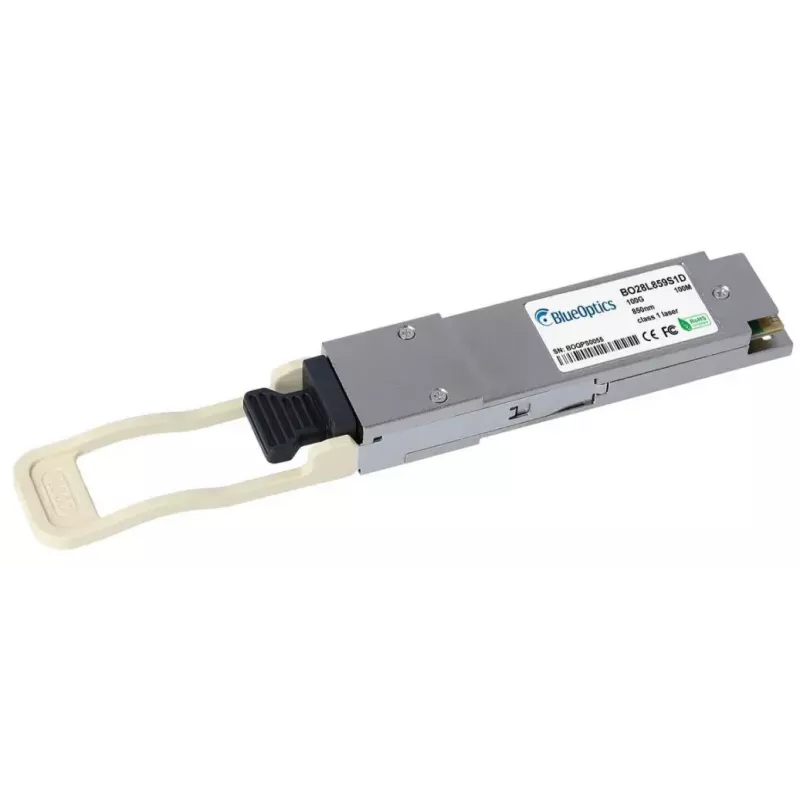

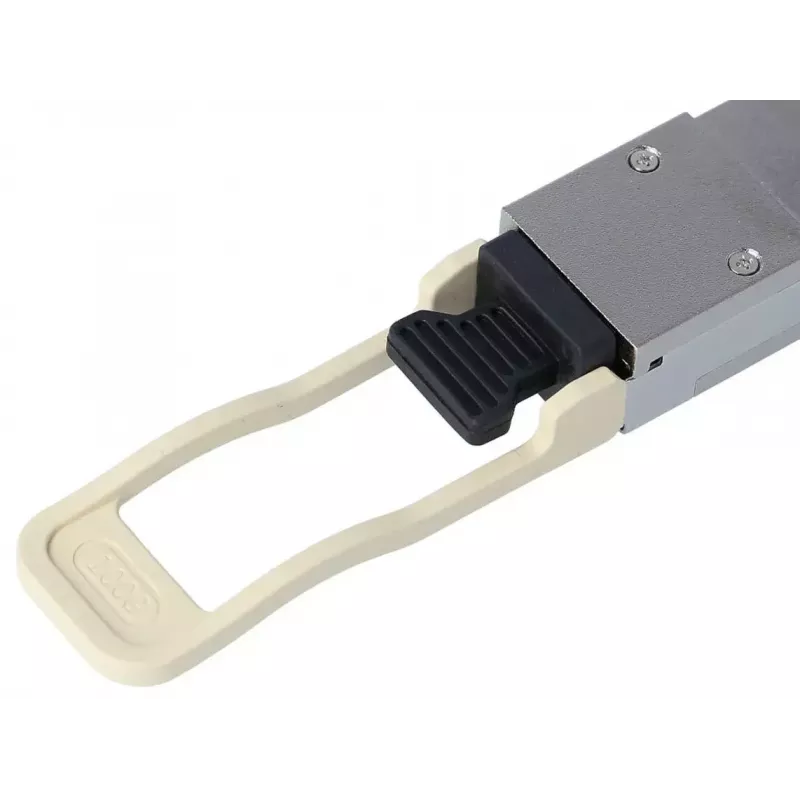

The BlueOptics AOM-MMA1B00-C100D-MLN-BO QSFP28 100m is a 100GBASE-SR4 multimode fiber optic transceiver module designed for short-reach high-speed data links up to 100 meters. Housed in an aluminium casing and weighing approximately 40 g, this QSFP28 module uses an MPO/MTP connector and operates with 850 nm transmitters and receivers, providing compatibility with MSA-compliant network equipment that supports QSFP28 100GBASE-SR4 optics.

Advantages

This module provides 100 Gbps aggregate bandwidth over multimode fiber with simultaneous transmit and receive capability via MPO/MTP. The aluminium housing offers mechanical protection while keeping weight low for dense installations. Built to MSA standards and using qualified optical and electronic components, the transceiver is tested for interoperability with major hardware platforms that accept QSFP28 100GBASE-SR4 modules. Digital Diagnostics Monitoring (DDM/DOM) support enables remote monitoring of voltage, laser bias current, transmit power, receive power and temperature.

Suitable for

Key specifications

How to use

Insert the QSFP28 transceiver into a compatible QSFP28 port on network equipment that supports 100GBASE-SR4 optics. Connect an MPO/MTP multimode fiber patch cord to the transceiver and the corresponding port or patch panel. Ensure the connected fiber type and patch cord support the required multimode category and distance for up to 100 meters. Verify link status via the host device and use the DDM/DOM interface, if supported by the hardware, to monitor operational parameters such as optical power and temperature.

Recommendations

Use high-quality multimode fiber and MPO/MTP patch cords rated for 100GBASE-SR4 to achieve the specified reach. Confirm host compatibility and firmware support for third-party QSFP28 modules before deployment. Avoid excessive bending or mechanical stress on the MPO/MTP connector and observe ESD precautions when handling the transceiver.
