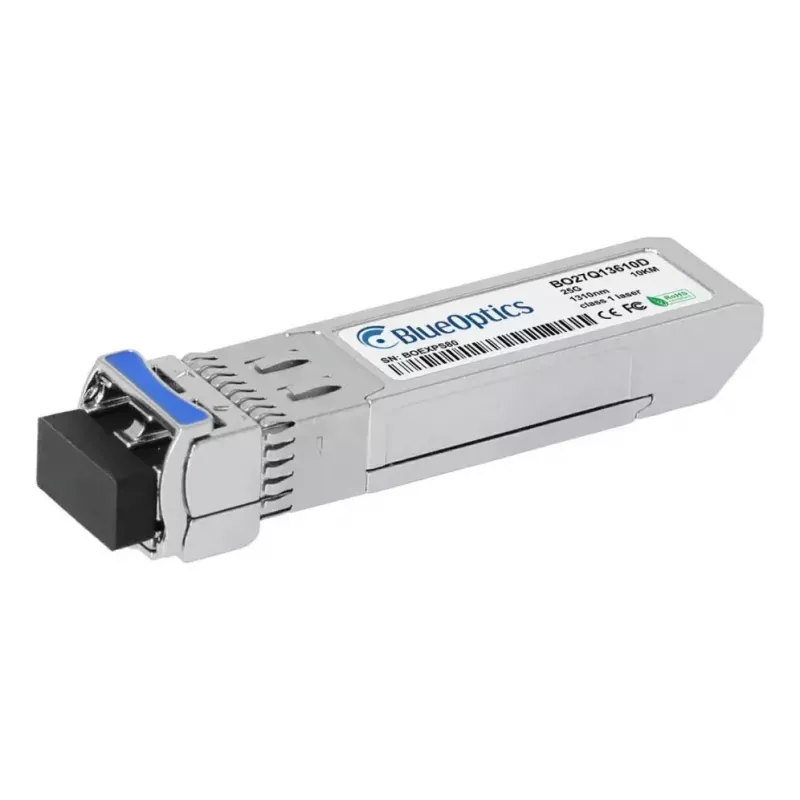

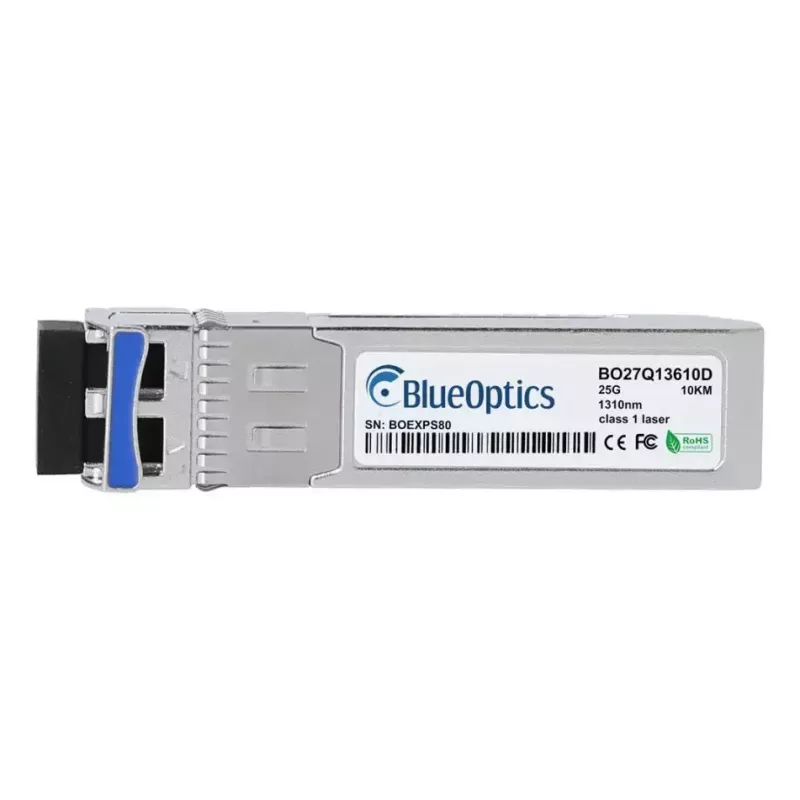

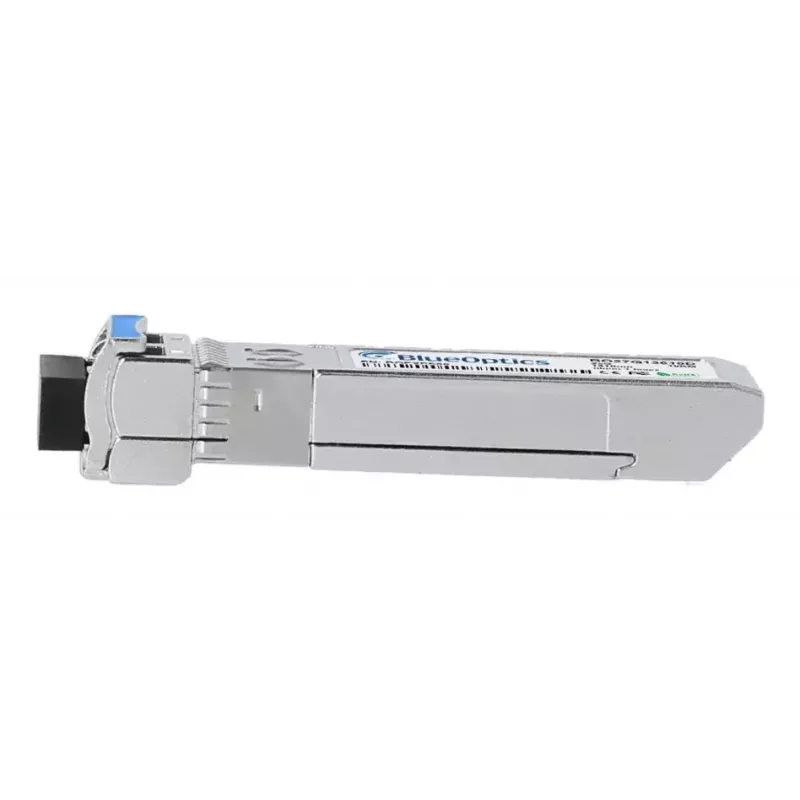

Sklenené vlákno transceiver modul BlueOptics JNP-SFP-25G-LR-BO SFP28 LC hliník 20 g

The BlueOptics JNP-SFP-25G-LR-BO is a 25GBASE-LR SFP28 fiber optic transceiver module with an LC duplex connector. Designed according to MSA standards, it supports single-mode fiber links with a nominal wavelength of 1310 nm and provides up to 25 Gbit/s data transmission over distances up to 10 km. The module is compatible with Juniper platforms that support the original JNP-SFP-25G-LR and includes Digital Diagnostics Monitoring (DDM/DOM) for real-time operational readings.

Advantages

The BlueOptics JNP-SFP-25G-LR-BO offers MSA-compliant design and tested compatibility with Juniper hardware, enabling Ethernet, Fibre Channel over Ethernet or SDH/SONET applications at 25 Gbit/s. It uses high-quality components such as proven laser diodes and ICs to deliver an expected long service life and high MTBF. The module supports DDM/DOM for remote monitoring of voltage, laser bias current, transmit power, receive power and temperature.

Suitable for

• 25G Ethernet uplinks and server connections
• Fibre Channel over Ethernet (FCoE) links
• High-speed router and switch ports in Juniper hardware that accept JNP-SFP-25G-LR
• Single-mode fiber links up to 10 km

Key specifications

• Form factor: SFP28 (MSA compliant)
• Data rate: up to 25 Gbit/s
• Wavelength: 1310 nm (Tx/Rx)
• Connector: LC duplex
• Fiber type: single-mode
• Maximum range: up to 10 km
• DDM/DOM: supported (SFF-8472)
• Weight: 0.02 kg
• Colour: aluminium
• MPN: JNP-SFP-25G-LR-BO
• EAN: 4063232049267

How to use

Insert the SFP28 transceiver into a compatible Juniper or MSA-compliant SFP28 port until it clicks into place, then connect an LC duplex single-mode patch cord. Verify that the host device supports the JNP-SFP-25G-LR form factor and enable DDM/DOM if monitoring is required. Follow standard hot-swap and ESD procedures when handling the module and keep dust caps on unused connectors to maintain optical performance.

Recommendations

For optimal link quality use a single-mode LC patch cord of appropriate specification and connect via a suitable patch panel or directly to another compatible SFP28 transceiver. Ensure the host device firmware supports third-party BlueOptics modules and enable DDM/DOM in the management interface to monitor transceiver parameters.
