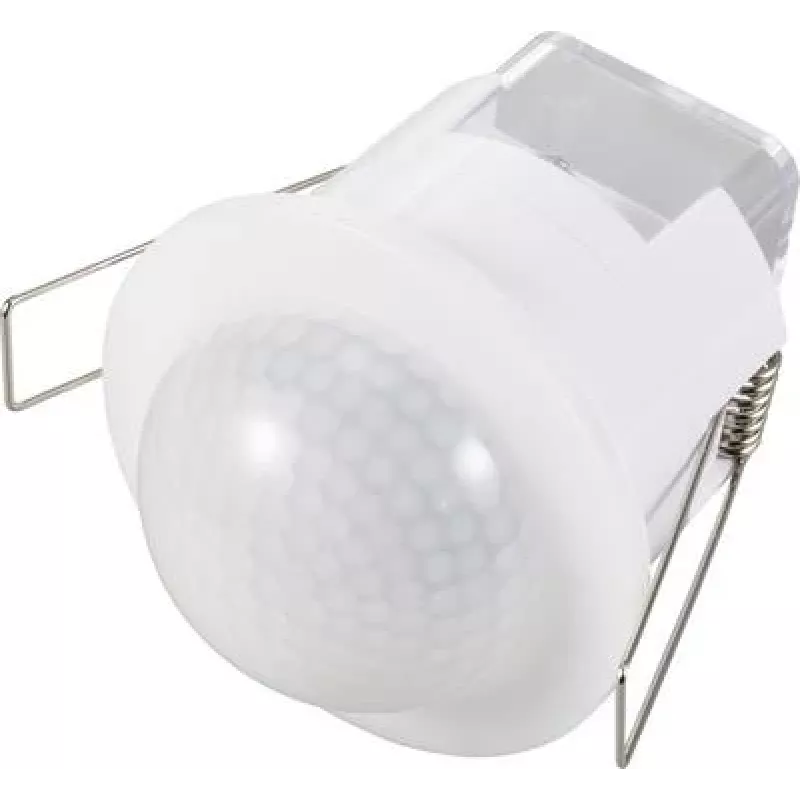

Sygonix SY-6733034 Podomietkový stropný PIR detektor pohybu 360° relé biely

Detect movement in every direction with the Sygonix SY-6733034, a flush-mount ceiling PIR motion detector with a full 360° detection angle and a relay output for switching loads up to 1200 W incandescent or 300 W LED/fluorescent. Operating at 230 V/AC, it offers adjustable time delay from 10 seconds to 15 minutes and light sensitivity from 3 to 2000 lux, making it suitable for hallways, offices, and utility rooms.

Overview

This motion detector is designed for ceiling installation with a cut-out diameter of 95 mm and an installation depth of 24 mm. It uses passive infrared (PIR) technology to sense heat in motion, covering a maximum range of 6 meters at an installation height of 2.4 meters (recommended height 2.2–4 m). The white housing blends with most ceilings, and the IP20 rating means it is intended for indoor use only.

What stands out

• 360° detection angle for complete coverage
• Relay output switches up to 1200 W incandescent or 300 W LED/fluorescent
• Adjustable time delay (10 s – 15 min) and lux threshold (3 – 2000 lux)
• Flush-mount design with only 24 mm depth
• Low standby power consumption of 0.5 W

Technical details

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Mounting type: Ceiling, flush-mount (Unterputz)
• Operating voltage: 230 V/AC, 50 Hz
• Max. switching capacity: 1200 W incandescent, 300 W LED/fluorescent
• Detection range: up to 6 m at 2.4 m installation height
• Recommended installation height: 2.2 – 4 m
• Time delay setting: 10 s – 15 min (adjustable)
• Light sensitivity setting: 3 – 2000 Lux (adjustable)
• Protection class: IP20
• Operating temperature: -20 to +40 °C
• Power consumption (standby): 0.5 W
• Switching output: Relay
• Cut-out diameter: 95 mm
• Installation depth: 24 mm

Our verdict

A reliable ceiling-mounted PIR detector with wide coverage and flexible settings, ideal for automating lighting in indoor spaces.
