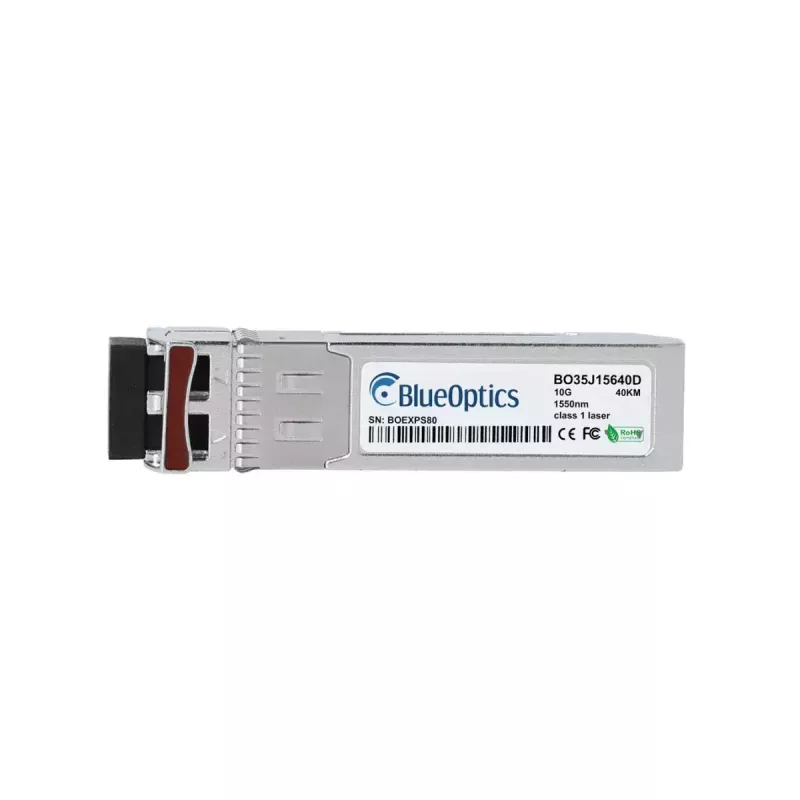

Transceiver modul SFP+ BlueOptics 100-01510-BO 10000 Mbit/s

The BlueOptics 100-01510-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s Ethernet and high-speed network connections. It provides a compact SFP+ form factor in a silver housing and is intended for use in switches, routers and network interface cards that accept SFP+ modules. The module is specified for a maximum data transfer rate of 10000 Mbit/s and has a reported MTBF of 1,000,000 hours. It meets CE, FCC and RoHS compliance requirements for electromagnetic compatibility and material safety.

Advantages

The SFP+ format offers hot-pluggable installation and a small footprint that saves space in network equipment. With support for a 10000 Mbit/s transfer rate, this BlueOptics transceiver is suitable for 10 G Ethernet links and other high-bandwidth connections. The silver metal housing provides durable mechanical protection and helps with heat dissipation, while compliance with CE, FCC and RoHS standards ensures regulatory conformity for most installations.

Suitable for

• 10 Gbit/s uplinks between switches and aggregation devices
• High-speed server connections and data centre interconnects
• Enterprise and campus network backbone segments
• Equipment requiring SFP+ form factor transceivers

Key specifications

• Form factor: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Interface type: SFP+
• Colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours
• Compliance: CE, FCC, RoHS

How to use

Install the BlueOptics SFP+ module into a compatible SFP+ slot on network equipment while the device is powered according to the host manufacturer’s instructions or with hot-plugging if supported. Connect the appropriate fiber optic cable and ensure connectors and fibre type match the transceiver specifications and the remote device. After insertion and cabling, verify link status and configure the host device interfaces as required for 10 Gbit/s operation.

Recommendations

Use the transceiver in equipment that supports SFP+ modules and follow manufacturer guidelines for cable type, connector polishing and maximum link distance. Avoid exposure to mechanical stress, moisture and electrostatic discharge during handling and installation to preserve performance and reliability.
