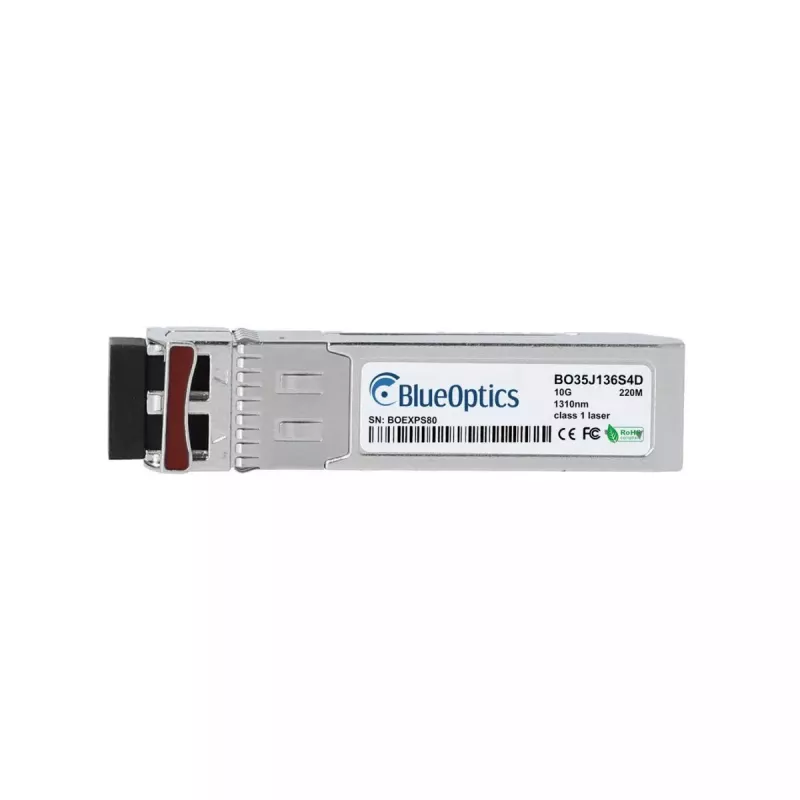

Vláknový transceiver modul HP BlueOptics J9152A-BO 10000 Mbit/s SFP+

The BlueOptics J9152A-BO SFP+ fiber optic transceiver module is designed for 10G optical links over multi-mode fiber. It supports data rates up to 10000 Mbit/s and uses an LC duplex connector following MSA specifications. The module implements 10GBASE-LRM operation with 1310 nm transmitter and receiver wavelengths and is suitable for integration into networking equipment that supports the original HPE J9152A form factor. The transceiver is lightweight (approx. 20 g) and produced to industry standards, including RoHS, CE, FCC and ISO9001 processes.

Advantages

The module provides a compact SFP+ form factor that conforms to MSA electrical, mechanical and functional interfaces, ensuring interoperability with compatible switches, routers and storage systems. Built with components sourced from established suppliers, it offers digital diagnostic monitoring (DDM/DOM) capability for remote status information such as supply voltage, laser bias current, output and received optical power, and temperature. The design supports reliable multi-mode transmission up to typical distances for 10GBASE-LRM and is intended for long service life and high availability in high-speed networks.

Suitable for

Key specifications

How to use

Insert the BlueOptics J9152A-BO module into an SFP+ port of a compatible device until it seats securely according to the host hardware instructions. Connect LC duplex multi-mode fiber patch cords to the Tx and Rx ports, observing correct transmit/receive orientation. If monitoring is required, enable DDM/DOM support on the host device to read real-time parameters such as optical power and temperature. Follow the equipment vendor’s guidelines for hot-plugging, ESD precautions and firmware or software settings that may be necessary for full compatibility with the host platform.

Recommendations

Use high-quality multimode LC duplex patch cords and, where possible, test the transceiver in the intended host hardware before wide deployment to confirm interoperability and DDM support. Ensure compliance with the host device’s supported transceiver list or configuration requirements and observe ESD handling procedures during installation.
