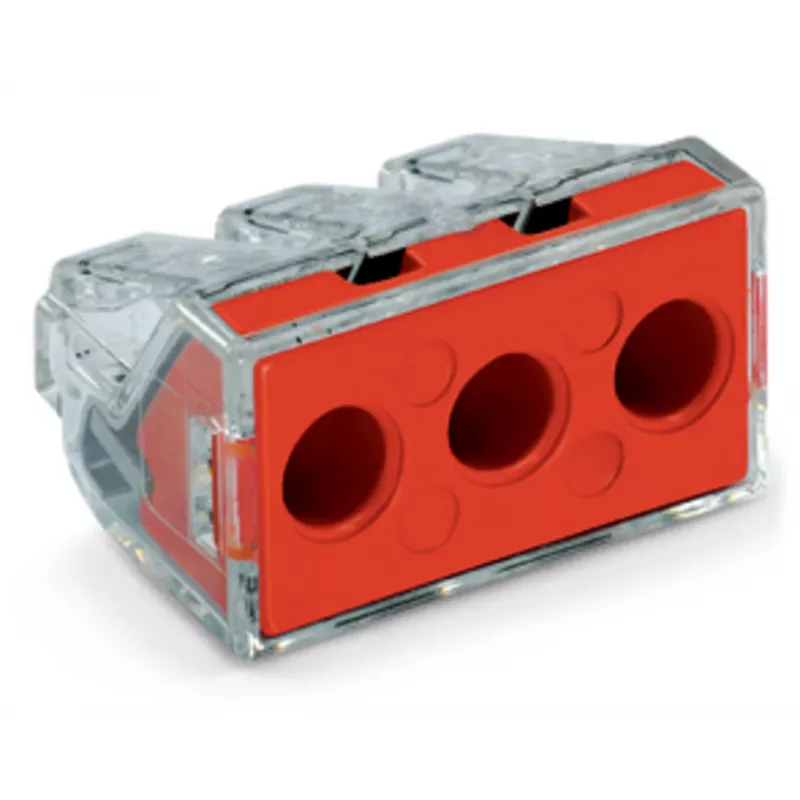

WAGO 773-173 spojovacia krabica, 3-pólová, Push-Wire, 41A, 400V, červená/transparentná

The WAGO 773-173 is a high-quality 3-pole junction box connector from the WAGO 773 series, designed for reliable and maintenance-free wiring in junction boxes. Featuring push-wire connection technology, it accommodates solid conductors from 2.5 to 6 mm² (AWG 14-10) and is rated for 41 A and 400 V. The transparent housing with red marking allows easy inspection of conductor insertion. Suitable for a wide range of electrical installations, this connector ensures secure, vibration-proof connections without the need for tools.

Advantages

Tool-free push-wire connection saves installation time. Transparent housing enables visual inspection of conductor insertion. Compact design fits easily into junction boxes. High current and voltage ratings suitable for demanding applications. VDE, UL, and CSA approved for global use.

Suitable for

• Junction box wiring in residential and commercial buildings
• Lighting and power distribution
• Industrial control cabinets
• Connection of solid copper conductors

Key specifications

• Number of Connection Points: 3
• Connection Technology: Push-wire
• Rated Voltage (EN): 400 V
• Rated Current (EN): 41 A
• Rated Impulse Voltage: 4 kV
• Pollution Degree: 2
• Nominal Cross Section (Solid): 2.5 - 6 mm² (AWG 14 - 10)
• Stripping Length: 12 - 13 mm
• Color: Red / Transparent
• Housing Material: Polyamide 6.6 (PA 6.6)
• Contact Material: Electrolytic copper
• Flammability Rating: UL 94 V-2
• Operating Temperature: -35 °C to +105 °C
• Type of Wiring: Junction box wiring
• Conductor Type: Solid
• Approvals: VDE, UL, CSA
• Product Series: WAGO 773 Series

Recommendations

For optimal performance, use with solid copper conductors and strip insulation to 12-13 mm. Ensure proper insertion until the conductor stops. Suitable for use with WAGO junction boxes and accessories.
