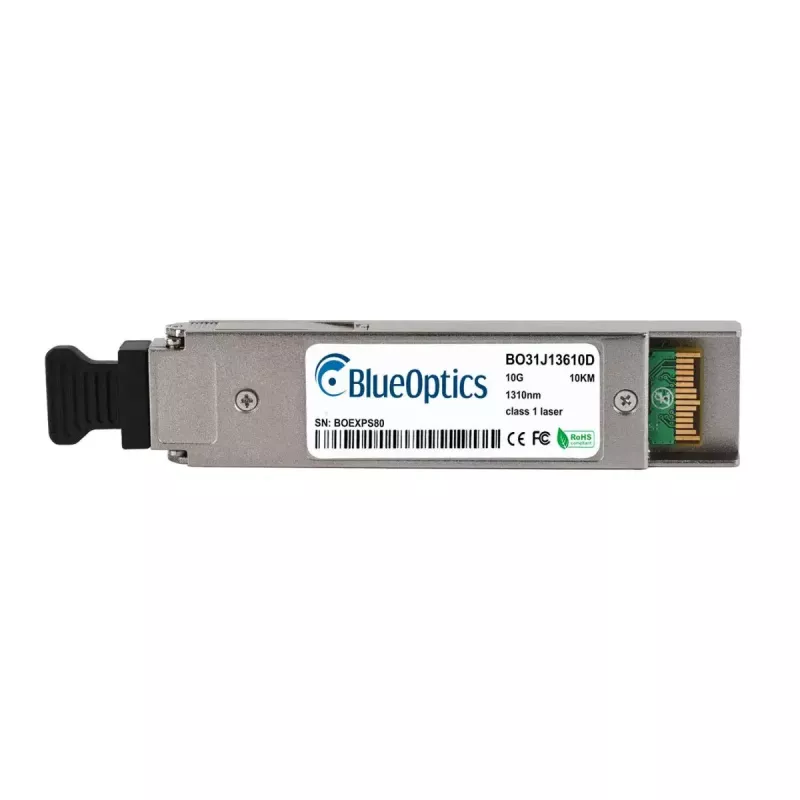

XFP transceiver modul BlueOptics 3HE00564CAA 10000 Mbit/s 1310 nm

The BlueOptics 3HE00564CAA XFP transceiver module is a compact optical interface designed for high-speed fiber communication. Supporting a maximum data transfer rate of 10 000 Mbit/s and operating at a wavelength of 1310 nm, this module provides single-mode optical transmission for network links that require stable, long-reach connectivity. The module's metal housing in silver and lightweight design simplify handling and installation in compatible XFP ports.

Advantages

The module offers standardized XFP connectivity and supports 10 Gbit/s-class performance at 1310 nm wavelength, enabling interoperability with equipment that accepts XFP form-factor transceivers. Its compact dimensions and 20 g weight reduce strain on cage assemblies and allow dense port deployment. The silver metal housing provides mechanical protection and helps with thermal conduction during continuous operation.

Suitable for

• 10 Gbit/s fiber links over single-mode cable
• Metro and campus backbone connections
• Switches, routers and transport equipment with XFP slots
• Upgrading existing fiber infrastructure to 10G capacity

Key specifications

• Interface type: XFP
• Maximum data transfer rate: 10 000 Mbit/s
• Operating wavelength: 1310 nm
• Form factor: XFP transceiver module
• Weight: 0.02 kg
• Housing colour: silver

How to use

Insert the BlueOptics XFP transceiver into a compatible XFP slot following the host equipment manufacturer's insertion/removal procedure. Ensure the link is terminated with appropriate single-mode fiber and LC/SC connectors as required by the system. After insertion, verify that the host device recognizes the transceiver and monitor link status indicators or management interfaces to confirm the optical link is up. Follow standard ESD precautions when handling the module and avoid touching the optical interface to prevent contamination.

Recommendations

Use the module with single-mode fiber at 1310 nm and verify optical power budgets for the desired link distance. Keep protective caps on the optical connector when the transceiver is not in use and perform connector cleaning when required. Consult the host device documentation for supported transceiver models and any required configuration for 10 Gbit/s operation.
