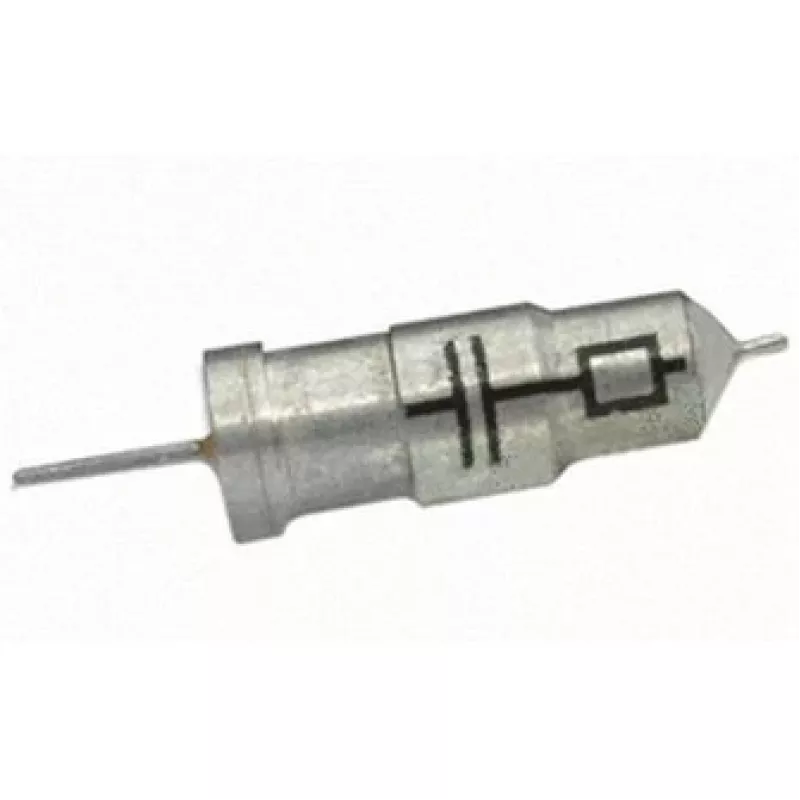

Zakončovací odpor 75 Ω Kathrein ERA 14

The Kathrein ERA 14 is a 75 Ω termination resistor designed for clamp-in installation on down-leads with remote feeding. It provides capacitive isolation to ensure stable impedance matching and reliable signal transmission in broadcast and telecommunications setups.

Advantages

The ERA 14 offers precise 75 Ω termination with low insertion loss and capacitive isolation that reduces interference from remote feeding. Its clamp-in type design enables secure, easy installation on coaxial down-leads and supports durable, stable operation in professional broadcast and telecom environments.

Suitable for (tasks / use cases)

Key specifications

How to use

Mount the resistor by clamping it onto the coaxial down-lead at the required termination point, observing correct polarity and secure mechanical contact. Ensure the down-lead is the type specified for remote feeding and that connections are tightened according to installer practice. Verify impedance matching and signal levels after installation.

Recommendations

Use the Kathrein ERA 14 as the final termination for down-leads with remote feeding in antenna and telecom systems; avoid exposing the component to prolonged moisture or mechanical stress and inspect connections periodically to maintain reliable performance.
