Záložný zdroj Eaton Ellipse PRO 650 IEC

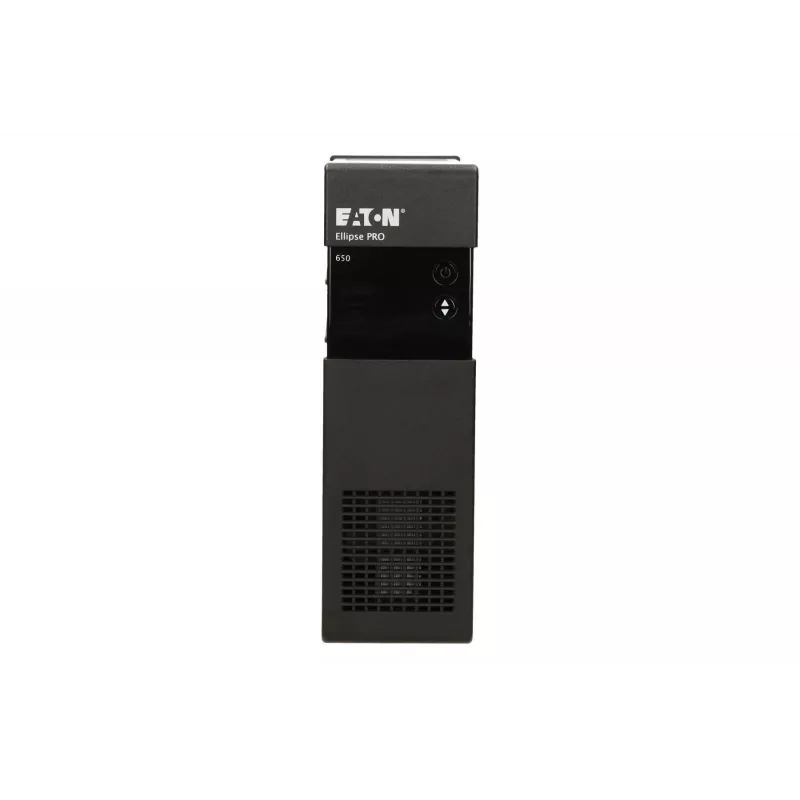

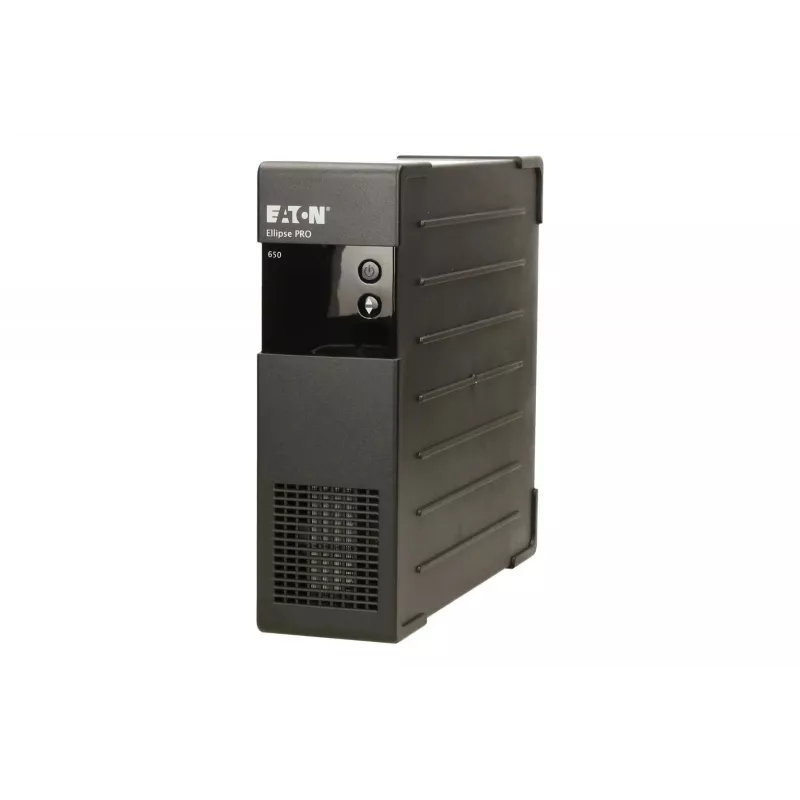

The Eaton Ellipse PRO 650 IEC is a line-interactive UPS designed to protect workstations running demanding applications. With a power capacity of 0.65 kVA (400 W output) and a sealed lead-acid battery, it provides short-term backup power and voltage regulation for PCs and peripherals. The unit features an LCD for real-time status and measurements, EcoControl outlets for reduced energy use, and surge protection compliant with IEC 61643-1.

Advantages

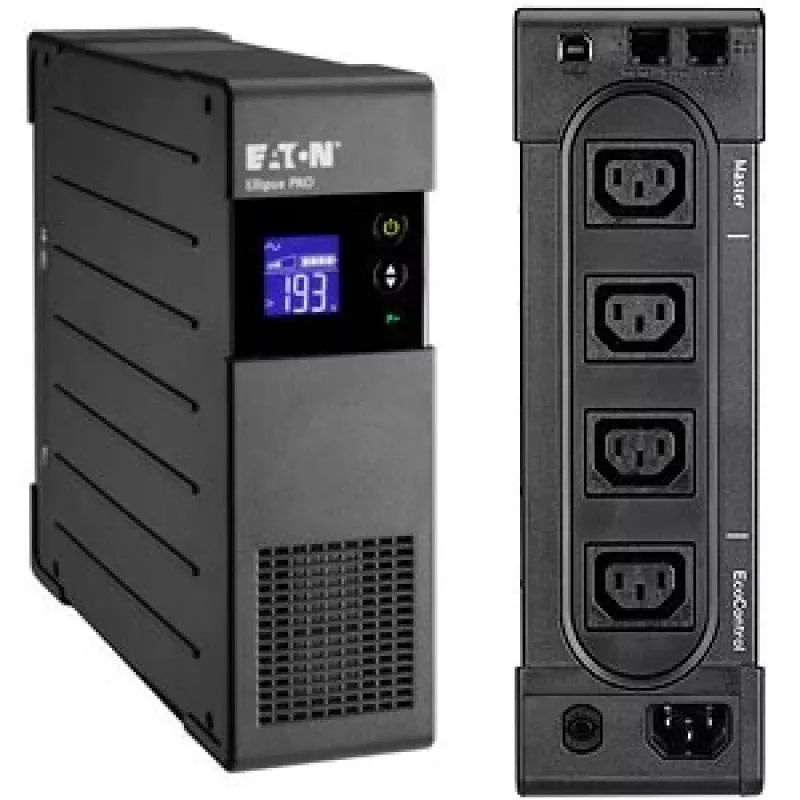

The UPS delivers clean output with Automatic Voltage Regulation (AVR) using both buck and boost functions, helping maintain stable voltage without using battery power as frequently. The EcoControl function can reduce energy consumption by up to 20% compared to previous generation UPS models. An integrated high-performance surge-protection device meets IEC 61643-1 requirements. The compact, extra-flat tower design with 2U rack capability and four C13 outlets allows flexible installation in office environments. A USB 2.0 port and Eaton UPS Companion software enable safe system shutdown, energy metering and UPS configuration.

Suitable for

• Desktop PCs and workstations running demanding applications
• Peripherals such as monitors, routers and external drives
• Small office and home office (SOHO) setups requiring short backup times
• Environments needing IEC-compliant surge protection and AVR

Key specifications

• Output power capacity: 0.65 kVA (400 W)

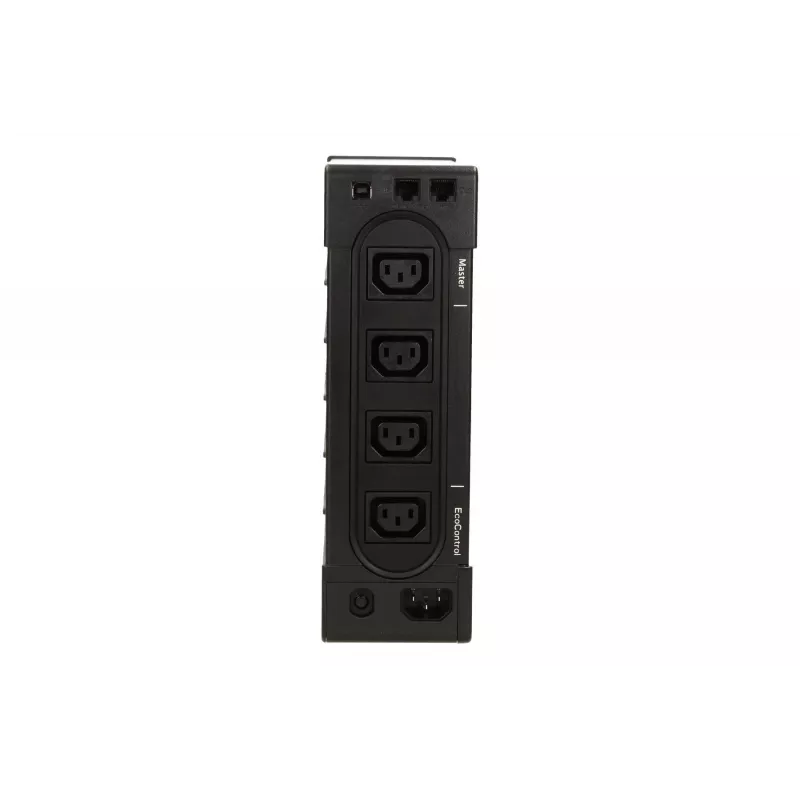

• AC outlets: 4 × C13
• Typical backup time: ~9 minutes at half load
• Battery type: sealed lead-acid
• USB: 1 × USB 2.0 port
• Form factor: tower with 2U rack capability
• Weight: 6.6 kg
• Colour: Black
• Standards: surge protection compliant with IEC 61643-1

How to use

Place the UPS on a flat, stable surface or mount it in a compatible 2U rack. Connect critical equipment to the UPS outlets (PC, monitor, router) and non-essential devices to separate outlets if available. Plug the UPS into a grounded mains outlet and connect the USB cable to a host computer to enable communication with Eaton UPS Companion software. Configure the software to allow automatic, safe shutdown and to monitor battery and energy usage. Test the setup by simulating a power disturbance and confirming the connected equipment remains powered or shuts down safely according to settings.

Recommendations

For reliable operation, ensure the total connected load does not exceed 400 W, perform regular battery self-tests via the front LCD or software, and replace the sealed lead-acid battery according to manufacturer intervals or when runtime noticeably decreases. Keep the UPS in a ventilated area away from heat sources and moisture.
