ALLNET ALL-ANT2458-PCB interiérová dvojpásmová PCB anténa 2,4/5 GHz 2 dBi samolepiaca

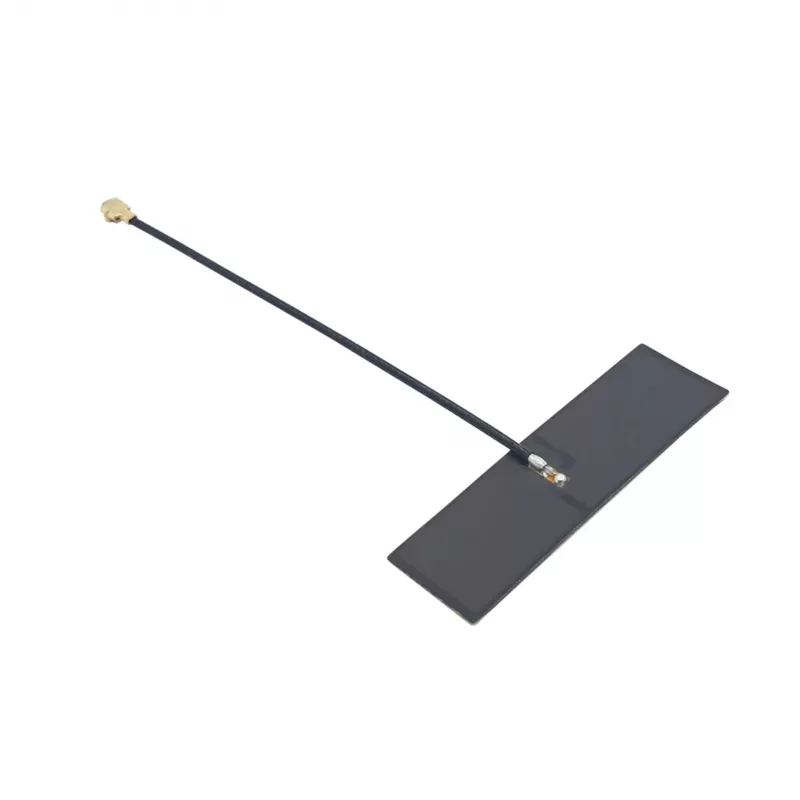

The ALLNET ALL-ANT2458-PCB is a compact, self-adhesive PCB antenna designed for indoor dual-band Wi-Fi and IoT applications. Operating at 2.4 GHz and 5 GHz with a gain of 2 dBi, this antenna provides reliable omnidirectional coverage for wireless devices such as routers, access points, and embedded systems. Its low-profile design and 3M adhesive backing allow for easy installation on walls, ceilings, or equipment enclosures.

Advantages

This antenna offers a cost-effective solution for improving wireless signal strength in confined spaces. The self-adhesive mounting eliminates the need for drilling or additional hardware, making it ideal for retrofitting or prototyping. With an IPEX (U.FL compatible) connector, it integrates seamlessly with common Wi-Fi modules and development boards.

Suitable for

• Wi-Fi access points and routers (802.11b/g/n/ac/ax)
• Bluetooth and Zigbee devices
• IoT gateways and sensors
• Embedded wireless projects
• Indoor coverage enhancement

Key specifications

• Frequency: 2.4 GHz & 5 GHz (Dual-Band)
• Gain: 2 dBi
• Antenna Type: PCB
• Mounting: Self-adhesive (3M)
• Connector: IPEX (U.FL compatible)
• Impedance: 50 Ohm
• Polarization: Linear
• Radiation Pattern: Omnidirectional
• VSWR: < 2.0:1
• Cable Length: 100 mm
• Material: FR4 PCB
• Operating Temperature: -20°C to +65°C
• Storage Temperature: -30°C to +75°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, mount the antenna on a non-metallic surface and ensure the cable is not sharply bent. This antenna is a direct replacement for many OEM internal antennas and is compatible with modules using IPEX connectors.
