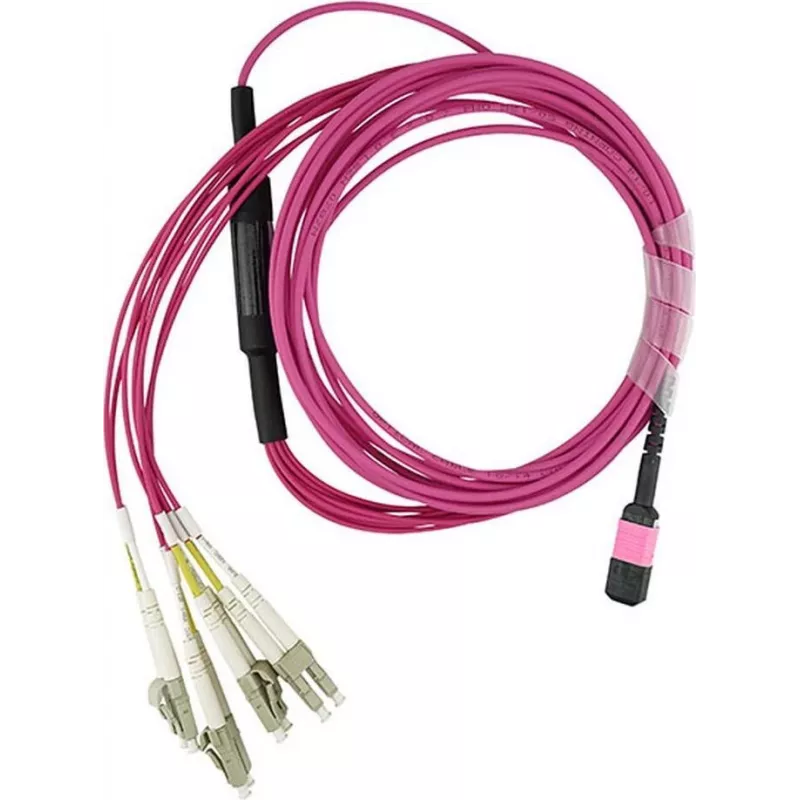

BlueOptics 470-ABPE-BO InfiniBand sklenené vlákno kábel 3 m MPO 4x LC

The BlueOptics 470-ABPE-BO InfiniBand fibre optic cable is a 3 m MPO to 4x LC patch cable designed for OM4 multimode applications. It supports full duplex transmission and is intended for high-speed data transfer in data centers, server rooms and network interconnects. The cable features LSZH sheathing for reduced smoke and no halogen release in case of fire and is manufactured and tested to industrial standards to ensure low insertion loss and high return loss.

Advantages

This MPO to 4x LC OM4 fibre cable provides reliable multimode performance with low attenuation over short to medium distances and is optimized for high-speed InfiniBand and parallel optical links. Connectors use zirconia ceramic ferrules for consistent mating performance and a long lifecycle. Each cable is factory-tested with interferometer and OTDR and supplied with measured input loss and return loss values, supporting predictable link budget planning.

Suitable for

• Data centre patching and rack-to-rack interconnects
• InfiniBand high-performance computing links
• Connecting MPO-enabled transceivers to LC ports or patch panels
• Short to medium multimode links using OM4 fibre

Key specifications

• Length: 3 m
• Connector A: MPO (multi-fibre push-on)
• Connector B: 4 × LC duplex
• Fibre type: OM4 multimode, laser-optimized
• Transmission mode: Full duplex, parallel MPO to LC breakout
• Sheath: LSZH (low smoke zero halogen)
• Ferrule material: Zirconia ceramic
• Tested with: Interferometer and OTDR; supplied with input loss and return loss measurement
• Compliance: Manufactured to common industrial fibre optic standards and RoHS

How to use

Route the BlueOptics MPO–4xLC cable between MPO-capable transceivers or MPO patch panels and LC ports or LC patch panels. Ensure connectors and ports are clean before mating; use appropriate dust caps when connectors are not in use. Align the MPO connector carefully with the transceiver or panel key to avoid damage and insert until the latch engages. For breakout connections, verify correct fiber mapping between MPO fibres and LC pairs to match duplex links.

Recommendations

For best long-term performance, store and handle the cable without sharp bends and observe the manufacturer’s minimum bend radius. Use manufacturer-recommended cleaning tools for MPO and LC connectors and verify channel loss with an OTDR or power meter after installation to confirm link performance.
