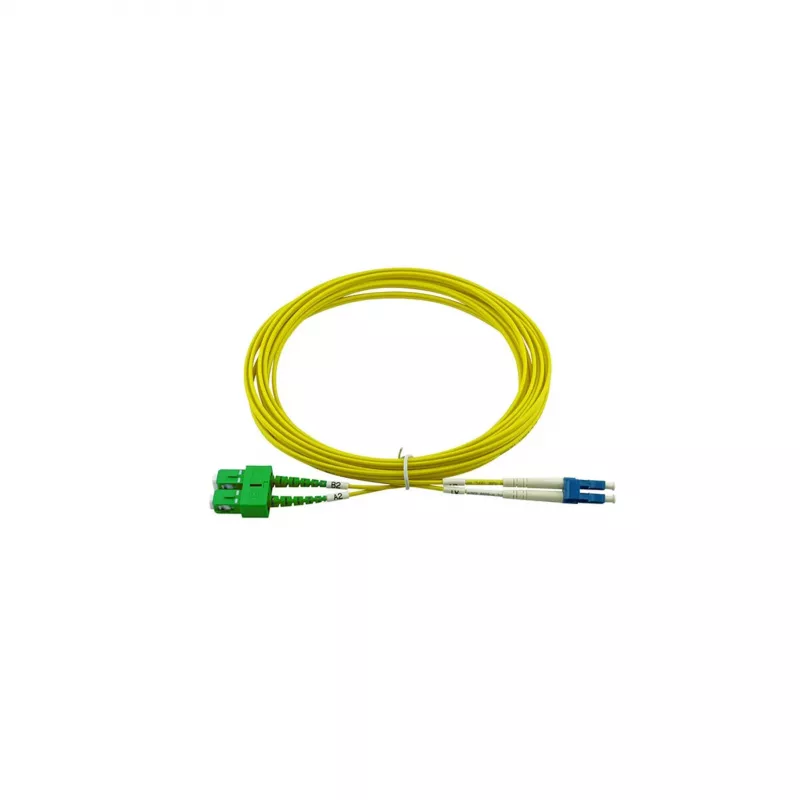

BlueOptics Duplex sklenené vlákno patch kábel LC/UPC-SC/APC Singlemode 2 metre

The BlueOptics SFP3132BU2MS is a high-quality duplex fibre optic patch cable designed for reliable singlemode connections. Featuring LC/UPC to SC/APC connectors, this 2-metre cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This cable offers excellent performance with low insertion loss (≤0.3 dB) and high return loss (≥50 dB UPC, ≥60 dB APC). The LSZH jacket provides safety in indoor installations, and the zirconia ceramic ferrules ensure durability over 500 mating cycles.

Suitable for

• Data centers
• Local Area Networks (LAN)
• FTTx deployments
• Telecommunications
• Indoor fibre optic connections

Key specifications

• Fibre Mode: Singlemode (OS2)
• Connector A: LC/UPC
• Connector B: SC/APC
• Cable Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Core/Cladding: 9/125 µm
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥50 dB (UPC), ≥60 dB (APC)
• Minimum Bend Radius: 10D
• Operating Temperature: -20°C to 70°C
• Standards: IEC 61754, TIA/EIA-604, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard SFP transceivers and patch panels.
